ATDR5 Equivalent & Substitute Parts

Part Overview

The ATDR5 is a CC TD fuse rated at 600V, 5A, manufactured by Mersen USA Newburyport-MA L.L.C. This fuse is an active product currently in stock with 1017 units available. The ATDR5 is classified as non-compliant with RoHS standards. Finding equivalent substitute parts may be necessary due to supply chain considerations, packaging preferences, or specific application requirements where alternative fuse designs meet the same electrical specifications.

Substiute Parts

ATDR5

Mersen USA Newburyport-MA L.L.C.In Stock: 1119ATDR5 Datasheet

Current PartRFQ

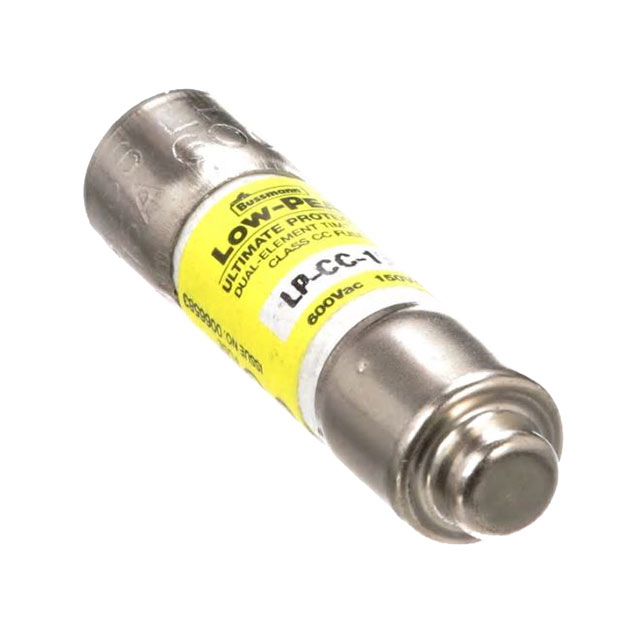

LP-CC-5

Eaton - Bussmann Electrical DivisionIn Stock: 943LP-CC-5 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The LP-CC-5 manufactured by Eaton - Bussmann Electrical Division qualifies as a substitute for the ATDR5 based on the following critical parameters:

• Current Rating: Both parts are rated at 5A
• Voltage Rating (AC): Both parts are rated at 600 VAC
• Fuse Class: Both parts are Class CC cartridge fuses
• ECCN Classification: Both parts share the same ECCN code (EAR99)
• HTSUS Code: Both parts share the same tariff classification (8536.10.0040)

The LP-CC-5 provides additional voltage capability with a 150 VDC rating and is ROHS3 compliant, offering improved environmental compliance compared to the ATDR5. Both fuses are active products with current inventory availability.

Parameter Comparison

Engineering Selection Recommendations

Both the ATDR5 and LP-CC-5 meet the core electrical requirements for 5A, 600V AC cartridge fuse applications within Class CC specifications. Selection between these parts should be based on the following factors:

ATDR5 Selection: Choose when the original Mersen specification is required, box packaging is preferred, or when RoHS non-compliance is acceptable for the application.

LP-CC-5 Selection: Choose when ROHS3 compliance is required, when DC voltage capability (150 VDC) is needed, or when bulk packaging is suitable for the procurement workflow. The LP-CC-5 offers broader environmental compliance and extended voltage range.

Both parts carry identical ECCN and HTSUS classifications, ensuring equivalent regulatory treatment for export and tariff purposes.

Frequently Asked Questions (FAQ)

Q: Can the LP-CC-5 directly replace the ATDR5 in all applications?

A: Yes, for applications requiring 5A at 600V AC within Class CC fuse specifications. The LP-CC-5 meets or exceeds the electrical parameters of the ATDR5. Verify that packaging format (bulk vs. box) and RoHS compliance requirements align with your procurement specifications.

Q: What is the difference between the packaging formats?

A: The ATDR5 is supplied in box packaging, while the LP-CC-5 is supplied in bulk packaging. Box packaging typically includes individual unit packaging, while bulk packaging provides loose units. Select based on your assembly and inventory management requirements.

Q: Does the LP-CC-5 require a holder for installation?

A: Yes, the LP-CC-5 is a cartridge fuse that requires a holder for installation. Verify that your application includes the appropriate CC-class fuse holder before selecting this substitute.

Q: Are there compliance differences between these parts?

A: The LP-CC-5 is ROHS3 compliant, while the ATDR5 is RoHS non-compliant. If your application or end-market requires RoHS compliance, the LP-CC-5 is the appropriate selection.

Q: What is the breaking capacity of these fuses?

A: The LP-CC-5 has a breaking capacity of 200kA AC and 20kA DC at rated voltage. Breaking capacity for the ATDR5 is not specified in the available data.
