ATC-7-1/2RLD Automotive Fuse Equivalent & Substitute Parts

Part Overview

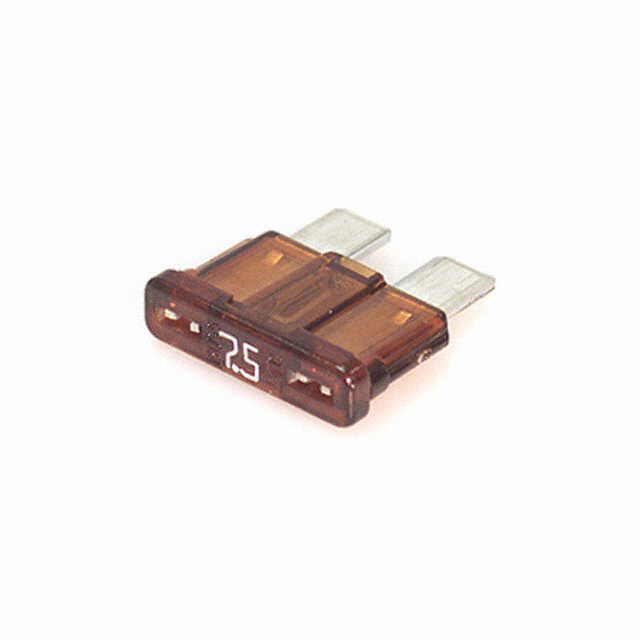

The ATC-7-1/2RLD is a 7.5 A automotive blade fuse rated for 32 V DC operation, manufactured by Eaton - Bussmann Electrical Division under the ATC® series. This fast-blow fuse is designed for automotive electrical circuits requiring holder-based installation with ATO/ATC blade configuration. The part maintains active product status with UL approval and RoHS compliance.

Equivalent and substitute parts are identified based on matching electrical ratings, mechanical form factor, and functional performance characteristics. Alternative sources and packaging configurations are available from both Eaton and Littelfuse manufacturers.

Key Parameters

Parameter	Value
Current Rating	7.5 A
Voltage Rating - DC	32 V
Fuse Type	Automotive
Response Time	Fast Blow
Package / Case	Blade, ATO/ATC
Mounting Type	Requires Holder
Breaking Capacity @ Rated Voltage	1 kA
Approval Agency	UL

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict equivalence across the following parameters:

Current Rating: 7.5 A (exact match required)
Voltage Rating: 32 V DC minimum (AC/DC dual-rated parts acceptable)
Fuse Type: Automotive blade configuration
Response Time: Fast Blow
Package / Case: Blade, ATO/ATC form factor
Mounting Type: Requires Holder
Approval Agency: UL certification (CSA and SAE certifications are supplementary)

Parts are grouped into three categories: Parametric Equivalents (identical specifications from same manufacturer), Direct Equivalents (identical specifications from alternative manufacturer), and Similar Equivalents (matching core electrical and mechanical parameters with minor packaging or variant differences).

Parameter Comparison

Manufacturer Part Number	Manufacturer	Current Rating (A)	Voltage Rating - DC (V)	Voltage Rating - AC (V)	Response Time	Package / Case	Breaking Capacity (kA)	Approval Agency	RoHS Status
ATC-7-1/2RLD	Eaton - Bussmann	7.5	32	—	Fast Blow	Blade, ATO/ATC	1	UL	RoHS Compliant
ATC-7-1/2	Eaton - Bussmann	7.5	32	—	Fast Blow	Blade, ATO/ATC	1	UL	RoHS Compliant
BK/ATC-7-1/2	Eaton - Bussmann	7.5	32	—	Fast Blow	Blade, ATO/ATC	1	UL	ROHS3 Compliant
0ATO07.5V	Littelfuse	7.5	32	32	Fast Blow	Blade, ATO/ATC	—	CSA, UL	ROHS3 Compliant
0ATO07.5VP	Littelfuse Inc.	7.5	32	32	Fast Blow	Blade, ATO/ATC	—	CSA, SAE, UL	ROHS3 Compliant
0ATO07.5ZXPRO	Littelfuse Inc.	7.5	32	32	Fast Blow	Blade, ATO/ATC	—	CSA, SAE, UL	ROHS3 Compliant
0ATO07.5HXGLO	Littelfuse Inc.	7.5	32	32	Fast Blow	Blade, ATO/ATC	—	CSA, SAE, UL	ROHS3 Compliant
0ATO07.5MXGLO	Littelfuse Inc.	7.5	32	32	Fast Blow	Blade, ATO/ATC	—	CSA, SAE, UL	ROHS3 Compliant
0ATO07.5VPGLO	Littelfuse Inc.	7.5	32	32	Fast Blow	Blade, ATO/ATC	—	CSA, UL	ROHS3 Compliant

Engineering Selection Recommendations

Eaton - Bussmann Parametric Equivalents: ATC-7-1/2 and BK/ATC-7-1/2 are direct parametric equivalents from the original manufacturer. Both maintain identical electrical specifications and UL approval. BK/ATC-7-1/2 carries ROHS3 compliance designation. Selection between these variants depends on packaging requirements and inventory availability.

Littelfuse Direct Equivalents: The 0ATO07.5V, 0ATO07.5VP, 0ATO07.5ZXPRO, 0ATO07.5HXGLO, 0ATO07.5MXGLO, and 0ATO07.5VPGLO series from Littelfuse meet all core electrical and mechanical requirements. These parts carry dual AC/DC voltage ratings (32 V AC / 32 V DC) and maintain UL certification with supplementary CSA and SAE approvals. All Littelfuse variants are ROHS3 compliant.

Compliance Considerations: All substitute parts maintain active product status and RoHS compliance. Littelfuse variants include REACH Unaffected designation. Selection should account for specific approval requirements within the target application circuit.

Frequently Asked Questions (FAQ)

Q: Can Littelfuse 0ATO07.5V series parts directly replace the Eaton ATC-7-1/2RLD?

A: Yes. Both manufacturers' parts share identical current rating (7.5 A), DC voltage rating (32 V), fast-blow response time, and ATO/ATC blade form factor. Littelfuse parts carry dual AC/DC voltage ratings, which provides equivalent or superior performance in DC-only applications. All parts require the same holder configuration.

Q: What is the difference between 0ATO07.5V, 0ATO07.5VP, and 0ATO07.5VPGLO?

A: These are variants within the Littelfuse ATO® series with identical electrical specifications. Differences lie in packaging configuration and approval certifications. 0ATO07.5VP includes SAE approval and is supplied in 5-pack card format. 0ATO07.5VPGLO is supplied in bulk packaging. All three are electrically interchangeable.

Q: Are there dimensional differences between Eaton and Littelfuse fuses?

A: Minor dimensional variations exist. Eaton ATC-7-1/2RLD measures 0.760" L × 0.207" W × 0.492" H. Littelfuse ATO® series measures 0.750" L × 0.200" W × 0.480" H. Both conform to ATO/ATC blade standard and function identically in standard automotive fuse holders.

Q: What does "Fast Blow" response time mean?

A: Fast Blow fuses interrupt circuit current rapidly upon overcurrent detection, typically within milliseconds. This characteristic is consistent across all listed substitute parts and is appropriate for standard automotive electrical circuit protection.

Q: Can I use parts with AC/DC dual ratings in a DC-only circuit?

A: Yes. Littelfuse parts rated 32 V AC / 32 V DC are fully suitable for 32 V DC applications. The dual rating indicates the fuse meets performance standards for both AC and DC operation; DC-only use does not compromise functionality.

Q: What packaging options are available?

A: Eaton parts are supplied in bulk or standard packaging. Littelfuse offers bulk packaging (0ATO07.5V, 0ATO07.5HXGLO, 0ATO07.5MXGLO, 0ATO07.5VPGLO), 5-pack card format (0ATO07.5VP), and box packaging (0ATO07.5ZXPRO). Selection depends on procurement and inventory management requirements.
