AT06-6S-WHT Equivalent & Substitute Parts
Part Overview

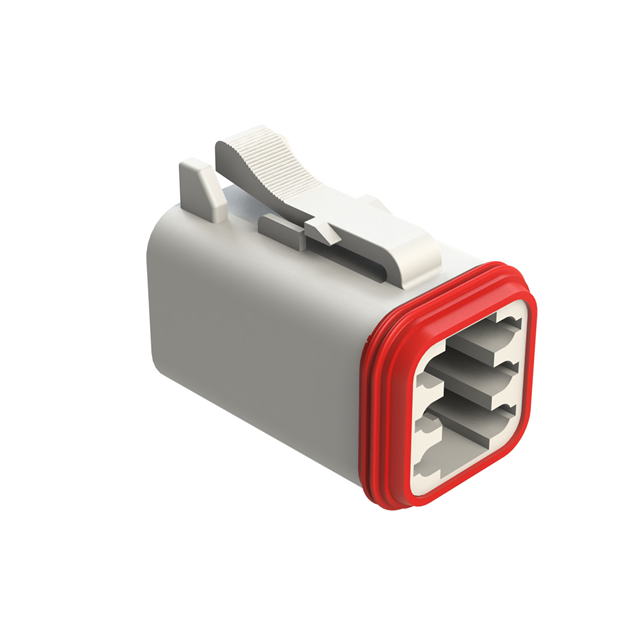

The AT06-6S-WHT is a 6-position rectangular connector plug housing manufactured by Amphenol Sine Systems Corp in the AT Series™. This connector housing is designed for free-hanging, in-line applications with crimp contact termination and latch lock fastening. The part is actively produced and widely used in applications requiring sealed, color-coded connector housings for circuit interconnection.
Substitute parts are necessary when specific color coding requirements differ from the primary specification, when inventory availability varies, or when system design standards mandate alternative color designations for circuit identification and organization.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer | Amphenol Sine Systems Corp |
| Series | AT Series™ |
| Base Product Number | AT06-6S |
| Connector Type | Plug |
| Contact Type | Female Socket |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Lock |
| Features | Sealed |
| Insulation Material | Thermoplastic |
| Operating Temperature Range | -55°C ~ 125°C |
| Product Status | Active |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
Substitute Part Grouping Explanation
All substitute parts for AT06-6S-WHT are parametric equivalents within the AT Series™ rectangular connector family. Substitution is based on identical electrical and mechanical specifications across all critical parameters: 6-position configuration, 2-row layout, female socket contact type, crimp termination, latch lock fastening, sealed design, thermoplastic insulation, and identical operating temperature range.
The only variable parameter among all equivalent parts is the housing color. Color variants are functionally interchangeable and serve circuit identification and organizational purposes in system design. All substitute parts maintain identical:
- Connector type and contact configuration
- Mounting and termination methods
- Environmental sealing and insulation properties
- Temperature performance specifications
- Regulatory compliance (RoHS3, REACH Unaffected)
- Moisture sensitivity classification
Parameter Comparison
| Part Number | Color | Connector Type | Positions | Rows | Contact Type | Termination | Fastening | Temperature Range | RoHS Status | Inventory (Pcs) |
|---|---|---|---|---|---|---|---|---|---|---|
| AT06-6S-WHT | White | Plug | 6 | 2 | Female Socket | Crimp | Latch Lock | -55°C ~ 125°C | ROHS3 Compliant | 1823 |
| AT06-6S-BLU | Blue | Plug | 6 | 2 | Female Socket | Crimp | Latch Lock | -55°C ~ 125°C | ROHS3 Compliant | 1625 |
| AT06-6S-BRN | Brown | Plug | 6 | 2 | Female Socket | Crimp | Latch Lock | -55°C ~ 125°C | ROHS3 Compliant | 1425 |
| AT06-6S-GRN | Green | Plug | 6 | 2 | Female Socket | Crimp | Latch Lock | -55°C ~ 125°C | ROHS3 Compliant | 1450 |
| AT06-6S-ORG | Orange | Plug | 6 | 2 | Female Socket | Crimp | Latch Lock | -55°C ~ 125°C | ROHS3 Compliant | 1805 |
| AT06-6S-RED | Red | Plug | 6 | 2 | Female Socket | Crimp | Latch Lock | -55°C ~ 125°C | ROHS3 Compliant | 1681 |
| AT06-6S-YEL | Yellow | Plug | 6 | 2 | Female Socket | Crimp | Latch Lock | -55°C ~ 125°C | ROHS3 Compliant | 1325 |
Engineering Selection Recommendations
All listed substitute parts are active products manufactured by Amphenol Sine Systems Corp and maintain full ROHS3 compliance and REACH Unaffected status. Selection among equivalent parts should be based on:
Color Coding Requirements: Choose the part number suffix corresponding to the required housing color for circuit identification and system organization standards.
Inventory Availability: Current stock levels vary across color variants. AT06-6S-WHT maintains 1823 pieces in inventory, while AT06-6S-YEL has the lowest availability at 1325 pieces. All variants are actively produced and available.
Regulatory Compliance: All substitute parts meet identical regulatory requirements and are suitable for applications requiring ROHS3 compliance and REACH compliance verification.
Thermal Performance: All variants operate across the identical temperature range of -55°C to 125°C and are suitable for equivalent thermal environments.
Moisture Sensitivity: All parts carry MSL 1 (Unlimited) classification, indicating no moisture sensitivity restrictions during storage or handling.
Frequently Asked Questions (FAQ)
Q: Can AT06-6S-WHT be directly replaced with AT06-6S-BLU or other color variants?
A: Yes. All color variants of the AT06-6S series are parametric equivalents with identical electrical and mechanical specifications. Direct substitution is possible when color coding requirements permit the alternative color designation.
Q: Are there any performance differences between the white housing (AT06-6S-WHT) and other color options?
A: No. All color variants maintain identical performance specifications including contact configuration, termination method, fastening mechanism, sealing properties, temperature range, and regulatory compliance. Color is a cosmetic and organizational variable only.
Q: What is the significance of the color suffix in the part number?
A: The color suffix (WHT, BLU, BRN, GRN, ORG, RED, YEL) designates the housing color only. The base product number AT06-6S defines all functional and electrical characteristics. Color selection is driven by circuit identification standards, system design conventions, or inventory availability.
Q: Are contacts included with these connector housings?
A: No. All AT06-6S variants are housings only. Contacts are not included and must be sourced separately. The part description specifies "Contacts Not Included."
Q: What mounting configuration is used for these connectors?
A: All AT06-6S variants use free-hanging, in-line mounting configuration. This design allows the connector to be mounted directly in-line without requiring a panel or backshell mounting surface.
Q: What contact termination method is used?
A: All variants use crimp termination. Contacts must be crimped onto wire conductors prior to insertion into the housing.
Q: What fastening mechanism secures the mated connection?
A: All variants use latch lock fastening. This mechanism provides positive engagement and retention between mated plug and receptacle housings.
Q: Are these connectors sealed?
A: Yes. All AT06-6S variants feature sealed design, providing environmental protection for the contact area.
Q: What insulation material is used in the housing?
A: All variants use thermoplastic insulation material for the housing structure.
Q: What is the operating temperature range for these connectors?
A: All color variants operate across the identical range of -55°C to 125°C, suitable for industrial and commercial temperature environments.
Q: Are these parts RoHS compliant?
A: Yes. All AT06-6S variants are ROHS3 compliant and REACH Unaffected, meeting current environmental and regulatory requirements.
Q: What is the moisture sensitivity level (MSL) for these parts?
A: All variants carry MSL 1 (Unlimited) classification, indicating no moisture sensitivity restrictions during storage, handling, or use.
