AT06-4S-ORG Equivalent & Substitute Parts

Part Overview

The AT06-4S-ORG is a 4-position rectangular connector plug housing manufactured by Amphenol Sine Systems Corp in the AT Series™. This connector housing features female socket contacts, sealed design, and thermoplastic insulation rated for operating temperatures from -55°C to 125°C. The part is Active in product status and RoHS3 compliant.

Substitute parts are necessary when specific color coding requirements differ from the primary part number, when packaging formats require adjustment, or when inventory availability necessitates alternative selections. All substitute parts maintain identical electrical and mechanical specifications while offering different housing colors or packaging configurations.

Key Parameters

Parameter	Specification
Manufacturer Part Number	AT06-4S-ORG
Manufacturer	Amphenol Sine Systems Corp
Category	Rectangular Connectors
Series	AT Series™
Connector Type	Plug
Contact Type	Female Socket
Number of Positions	4
Number of Rows	2
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Features	Sealed
Insulation Material	Thermoplastic
Operating Temperature Range	-55°C ~ 125°C
Color	Orange
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
Product Status	Active

Substitute Part Grouping Explanation

Substitute parts for the AT06-4S-ORG are determined by equivalence in all electrical and mechanical parameters. The substitution logic is based on the following criteria:

Critical Parameters for Substitution:

Connector Type: Plug
Contact Type: Female Socket
Number of Positions: 4
Number of Rows: 2
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Fastening Type: Latch Lock
Features: Sealed
Insulation Material: Thermoplastic
Operating Temperature Range: -55°C ~ 125°C
Base Product Number: AT06-4S
RoHS Status: ROHS3 Compliant
Moisture Sensitivity Level: 1 (Unlimited)
REACH Status: REACH Unaffected

Variable Parameters (Non-Critical for Substitution):

Housing Color
Packaging Format (Box or Bulk)

All substitute parts listed maintain identical electrical and mechanical specifications. Differences exist only in housing color and packaging configuration. The AT06-4S (gray, bulk packaging) serves as the base product number variant.

Parameter Comparison

Part Number	Color	Packaging	Connector Type	Positions	Rows	Contact Type	Termination	Fastening	Operating Temp	RoHS Status	Inventory (Pcs)
AT06-4S-ORG	Orange	Box	Plug	4	2	Female Socket	Crimp	Latch Lock	-55°C ~ 125°C	ROHS3 Compliant	1520
AT06-4S	Gray	Bulk	Plug	4	2	Female Socket	Crimp	Latch Lock	-55°C ~ 125°C	ROHS3 Compliant	15077
AT06-4S-BLU	Blue	Box	Plug	4	2	Female Socket	Crimp	Latch Lock	-55°C ~ 125°C	ROHS3 Compliant	1100
AT06-4S-BRN	Brown	Box	Plug	4	2	Female Socket	Crimp	Latch Lock	-55°C ~ 125°C	ROHS3 Compliant	1788
AT06-4S-GRN	Green	Box	Plug	4	2	Female Socket	Crimp	Latch Lock	-55°C ~ 125°C	ROHS3 Compliant	2153
AT06-4S-RED	Red	Box	Plug	4	2	Female Socket	Crimp	Latch Lock	-55°C ~ 125°C	ROHS3 Compliant	2757

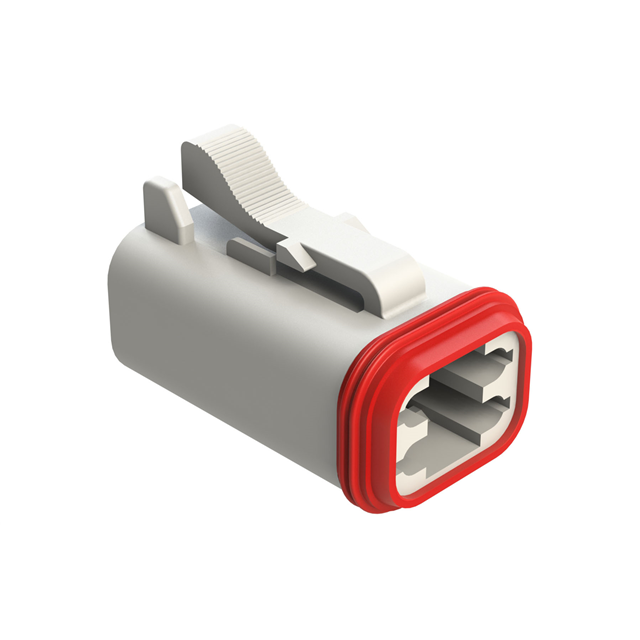

AT06-4S-WHT	White	Box	Plug	4	2	Female Socket	Crimp	Latch Lock	-55°C ~ 125°C	ROHS3 Compliant	1675
AT06-4S-YEL	Yellow	Box	Plug	4	2	Female Socket	Crimp	Latch Lock	-55°C ~ 125°C	ROHS3 Compliant	1633

Engineering Selection Recommendations

All substitute parts listed are Active in product status and maintain full RoHS3 compliance and REACH Unaffected certification. Selection between AT06-4S-ORG and alternative part numbers should be based on the following factors:

Color Coding Requirements: Housing color serves as a visual identification method in circuit design and assembly. Select the appropriate color variant based on system documentation or wiring standards.

Packaging Format: The AT06-4S (gray, bulk packaging) offers significantly higher inventory availability (15,077 pieces) compared to box-packaged variants. Bulk packaging is suitable for high-volume manufacturing operations. Box packaging variants are appropriate for smaller quantity requirements or applications requiring individual unit handling.

Inventory Availability: All substitute parts are in stock. The AT06-4S-RED variant offers the highest inventory level at 2,757 pieces among color-coded options. The AT06-4S-ORG maintains 1,520 pieces in inventory.

Compliance Status: All parts maintain identical compliance certifications. No compliance-based selection differentiation exists between variants.

Thermal Performance: All variants operate across the identical temperature range of -55°C to 125°C. No thermal performance differentiation exists between color variants.

Frequently Asked Questions (FAQ)

Q: Can AT06-4S-ORG be directly replaced with AT06-4S?

A: Yes. Both parts are electrically and mechanically identical. The AT06-4S differs only in housing color (gray) and packaging format (bulk). Direct substitution is valid from an engineering standpoint. Bulk packaging may require adjustment to receiving and storage procedures.

Q: Are all color variants electrically equivalent?

A: Yes. All color variants (orange, blue, brown, green, red, white, yellow, and gray) maintain identical electrical specifications, mechanical dimensions, contact configuration, and performance characteristics. Color differences are cosmetic only and do not affect electrical function.

Q: What is the difference between box and bulk packaging?

A: Box packaging contains individual units suitable for smaller quantity orders and component-level handling. Bulk packaging contains larger quantities in a single container, optimized for high-volume manufacturing environments. Both packaging formats contain identical connector housings with no functional differences.

Q: Can I use AT06-4S-RED instead of AT06-4S-ORG in my design?

A: Yes, provided your application does not require specific color coding for circuit identification or assembly documentation. All electrical and mechanical parameters are identical. Verify that your assembly procedures and documentation do not mandate orange housing color.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. All substitute parts listed maintain ROHS3 Compliant status and REACH Unaffected certification. No compliance differentiation exists between variants.

Q: What is the Moisture Sensitivity Level for all variants?

A: All variants carry Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity restrictions during storage, handling, or assembly.

Q: Do substitute parts require different contact pins?

A: No. All variants accept identical female socket contacts. The note "Contacts Not Included" applies uniformly across all substitute parts. Contact selection is independent of housing color or packaging format.

Q: Which substitute part offers the best inventory availability?

A: The AT06-4S (gray, bulk packaging) offers 15,077 pieces in inventory, significantly exceeding all color-coded variants. Among color-coded options, AT06-4S-RED provides the highest availability at 2,757 pieces.
