AT06-3S-SR01WHT Equivalent & Substitute Parts

Part Overview

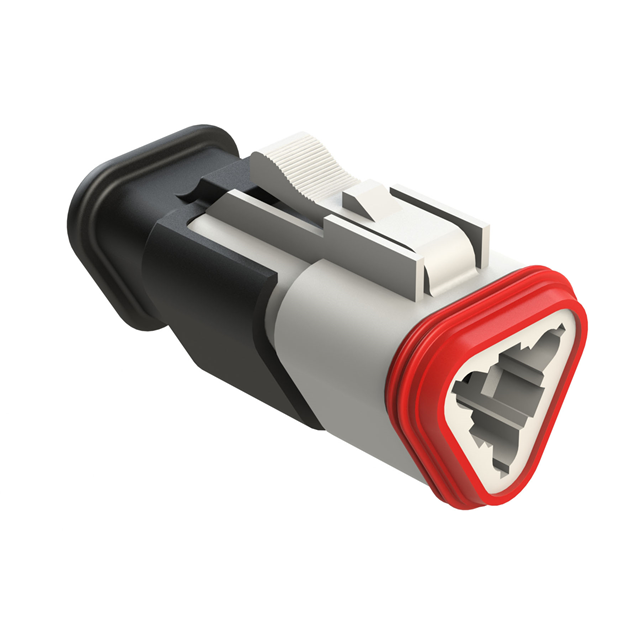

The AT06-3S-SR01WHT is a 3-position rectangular connector plug housing manufactured by Amphenol Sine Systems Corp, part of the ATSeries™SR01 product line. This connector features female socket contacts with crimp termination, latch lock fastening, and sealed design rated for IP68 and IP69K protection. The housing is constructed from thermoplastic material with integrated strain relief and protective cap.

The AT06-3S-SR01WHT is an active product with full RoHS3 compliance and REACH unaffected status. Substitute parts are identified based on identical electrical and mechanical specifications with variations limited to housing color only.

Key Parameters

Parameter	Value
Manufacturer Part Number	AT06-3S-SR01WHT
Manufacturer	Amphenol Sine Systems Corp
Series	ATSeries™SR01
Category	Rectangular Connectors
Connector Type	Plug
Number of Positions	3
Contact Type	Female Socket
Number of Rows	2
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Insulation Material	Thermoplastic
Operating Temperature Range	-55°C ~ 125°C
Features	Cap (Cover), IP68, IP69K, Sealed, Strain Relief
RoHS Status	ROHS3 Compliant
REACH Status	REACH Unaffected
Product Status	Active

Substitute Part Grouping Explanation

Substitute parts for the AT06-3S-SR01WHT are determined by electrical and mechanical parameter equivalence within the ATSeries™SR01 rectangular connector family. The substitution criteria are based on the following parameters that must remain identical:

Connector Type: Plug
Number of Positions: 3
Contact Type: Female Socket
Number of Rows: 2
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Fastening Type: Latch Lock
Insulation Material: Thermoplastic
Operating Temperature Range: -55°C ~ 125°C
Features: Cap (Cover), IP68, IP69K, Sealed, Strain Relief
Series: ATSeries™SR01
Base Product Number: AT06-3S
RoHS Status: ROHS3 Compliant
REACH Status: REACH Unaffected

Substitute parts differ only in housing color designation. All substitute parts maintain identical functional, electrical, and mechanical characteristics, ensuring direct interchangeability in applications where housing color is not a critical design parameter.

Parameter Comparison

Parameter	AT06-3S-SR01WHT	AT06-3S-SR01GRN	AT06-3S-SR01YEL
Manufacturer Part Number	AT06-3S-SR01WHT	AT06-3S-SR01GRN	AT06-3S-SR01YEL
Manufacturer	Amphenol Sine Systems Corp	Amphenol Sine Systems Corp	Amphenol Sine Systems Corp
Series	ATSeries™SR01	ATSeries™SR01	ATSeries™SR01
Connector Type	Plug	Plug	Plug
Number of Positions	3	3	3
Contact Type	Female Socket	Female Socket	Female Socket
Number of Rows	2	2	2
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp
Fastening Type	Latch Lock	Latch Lock	Latch Lock
Insulation Material	Thermoplastic	Thermoplastic	Thermoplastic
Operating Temperature Range	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Features	Cap (Cover), IP68, IP69K, Sealed, Strain Relief	Cap (Cover), IP68, IP69K, Sealed, Strain Relief	Cap (Cover), IP68, IP69K, Sealed, Strain Relief
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
REACH Status	REACH Unaffected	REACH Unaffected	REACH Unaffected
Product Status	Active	Active	Active
Housing Color	White	Green	Yellow

Engineering Selection Recommendations

All three parts—AT06-3S-SR01WHT, AT06-3S-SR01GRN, and AT06-3S-SR01YEL—are active products with identical compliance certifications. Each part maintains ROHS3 compliance and REACH unaffected status, ensuring regulatory alignment across all substitute options.

Selection between these parts is determined by application requirements related to housing color identification or visual circuit differentiation. From an electrical and mechanical standpoint, all three parts are functionally equivalent and interchangeable.

The AT06-3S-SR01GRN variant has higher inventory availability (1447 units) compared to the AT06-3S-SR01WHT (923 units), while the AT06-3S-SR01YEL variant has the highest inventory level (1550 units). Inventory status may influence procurement decisions when lead time or stock availability is a consideration.

Frequently Asked Questions (FAQ)

Q: Are the AT06-3S-SR01WHT, AT06-3S-SR01GRN, and AT06-3S-SR01YEL parts electrically identical?

A: Yes. All three parts share identical electrical specifications, including contact type, number of positions, termination method, and operating temperature range. The only difference is housing color.

Q: Can I substitute the AT06-3S-SR01WHT with AT06-3S-SR01GRN or AT06-3S-SR01YEL in my application?

A: Substitution is valid when housing color is not a critical design or identification requirement. All three parts have identical mechanical and electrical characteristics, including mounting type, fastening mechanism, and sealing ratings.

Q: What does the color designation in the part number represent?

A: The color designation (WHT, GRN, YEL) indicates the housing color only. It does not affect electrical performance, mechanical compatibility, or functional operation.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. All three parts—AT06-3S-SR01WHT, AT06-3S-SR01GRN, and AT06-3S-SR01YEL—are ROHS3 compliant and REACH unaffected.

Q: What is the operating temperature range for these connectors?

A: All three parts operate within the range of -55°C to 125°C, making them suitable for industrial and harsh environment applications.

Q: Do these connectors provide sealed protection?

A: Yes. All three parts feature sealed design with IP68 and IP69K protection ratings, integrated strain relief, and protective caps.

Q: What is the contact termination method for these connectors?

A: All three parts use crimp termination for contact connection, requiring appropriate crimping tools and procedures during assembly.
