AT04-2P-SB01 Equivalent & Substitute Parts

Part Overview

The AT04-2P-SB01 is a 2-position rectangular connector receptacle housing manufactured by Amphenol Sine Systems Corp, part of the AT Series™ product line. This component serves as the receptacle housing for applications requiring a 2-position connector interface with male pin contacts. The part is currently in active production status with 834 pieces available in new original inventory.

Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable, when bulk inventory requirements exceed current stock levels, or when supply chain diversification is necessary for production continuity.

Substiute Parts

AT04-2P-SB01

Amphenol Sine Systems CorpIn Stock: 873AT04-2P-SB01 Datasheet

Current PartRFQ

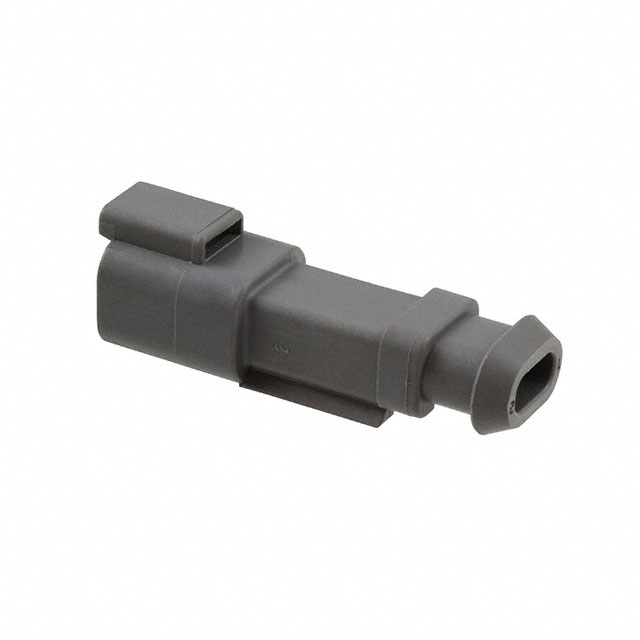

DT04-2P-E008

TE Connectivity Deutsch ConnectorsIn Stock: 3105DT04-2P-E008 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AT04-2P-SB01 is determined by the following critical parameters:

Primary Matching Criteria:

• Connector Type: Receptacle
• Number of Positions: 2
• Contact Type: Male Pin
• Number of Rows: 1
• Operating Temperature Range: -55°C ~ 125°C
• RoHS3 Compliance
• REACH Unaffected Status
• Product Status: Active

The substitute part DT04-2P-E008 satisfies all primary matching criteria. This part is manufactured by TE Connectivity Deutsch Connectors and maintains functional equivalence through identical connector configuration, contact arrangement, and environmental operating specifications. Both parts are active products with current manufacturing support and full regulatory compliance.

Parameter Comparison

Engineering Selection Recommendations

Both the AT04-2P-SB01 and DT04-2P-E008 are active products with full ROHS3 compliance and REACH unaffected status, making either part suitable for applications requiring regulatory adherence. The AT04-2P-SB01 offers immediate availability with 834 pieces in current inventory. The DT04-2P-E008 provides significantly higher inventory availability at 3000 pieces and includes additional environmental protection features (IP68, IP6K9K ratings) and a shrink boot adapter, along with a latch holder fastening mechanism.

Selection between these parts should be based on inventory requirements, delivery timeline constraints, and whether the additional environmental protection features of the DT04-2P-E008 are required for the specific application. Both parts maintain identical core connector specifications and operating temperature performance.

Frequently Asked Questions (FAQ)

Q: What makes DT04-2P-E008 a valid substitute for AT04-2P-SB01?

A: The DT04-2P-E008 matches all critical substitution parameters: 2-position receptacle housing with male pin contacts, single-row configuration, identical operating temperature range (-55°C ~ 125°C), ROHS3 compliance, and REACH unaffected status. Both parts are active products from established manufacturers.

Q: Are there differences in insulation material between these parts?

A: Yes. The AT04-2P-SB01 uses thermoplastic insulation, while the DT04-2P-E008 uses polyamide (PA) nylon with glass filling. Both materials are suitable for the specified operating temperature range and environmental conditions.

Q: Do these parts include contacts?

A: No. Both the AT04-2P-SB01 and DT04-2P-E008 are housing-only components. Contacts must be sourced separately and are not included with either part.

Q: What is the significance of the additional features listed for DT04-2P-E008?

A: The DT04-2P-E008 includes IP68 and IP6K9K environmental protection ratings, a shrink boot adapter, and a latch holder fastening mechanism. These features provide enhanced environmental sealing and mechanical retention compared to the base AT04-2P-SB01 specification.

Q: Can these parts be used interchangeably in existing designs?

A: Functional interchangeability is confirmed for the core connector interface (2-position, male pin receptacle). However, physical mounting characteristics, fastening mechanisms, and environmental protection features differ. Design verification is necessary to confirm compatibility with existing mechanical and environmental requirements.

Q: What is the inventory status for each part?

A: The AT04-2P-SB01 has 834 pieces in new original inventory. The DT04-2P-E008 has 3000 pieces in new original inventory, providing significantly higher availability for high-volume requirements.
