ASP-65067-01 Equivalent & Substitute Parts

Part Overview

The ASP-65067-01 is a 100-position rectangular connector socket with center strip contacts, designed for surface mount applications. Manufactured by Samtec Inc., this component features gold-plated contacts and is packaged in tube format. The part maintains Active product status and is ROHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical parameters are required for design flexibility, inventory management, or supply chain continuity.

Substiute Parts

ASP-65067-01

Samtec Inc.In Stock: 867ASP-65067-01 Datasheet

Current PartRFQ

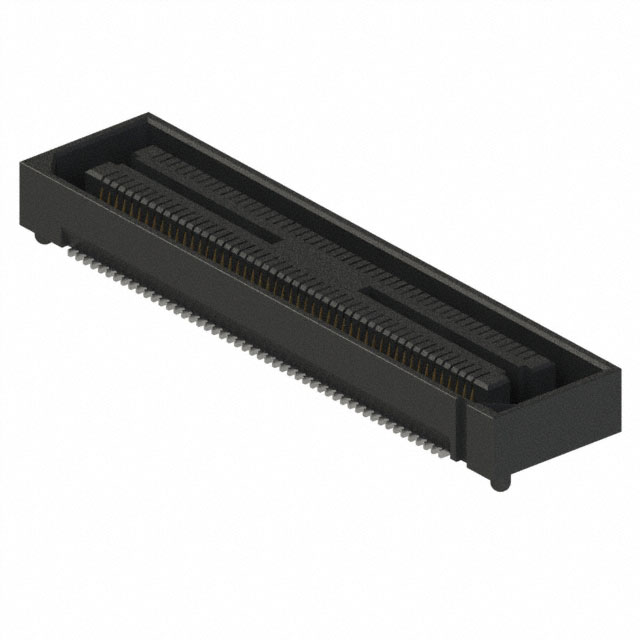

BSH-050-01-L-D-A

Samtec Inc.In Stock: 715BSH-050-01-L-D-A Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ASP-65067-01 is determined by strict equivalence across the following critical parameters:

• Electrical Compatibility: Number of positions (100), pitch (0.020"/0.50mm), number of rows (2), and connector type (Socket, Center Strip Contacts)
• Physical Compatibility: Mounting type (Surface Mount), height above board (0.128"/3.25mm), and board guide feature
• Material & Finish: Contact finish (Gold) and contact finish thickness (10.0µin/0.25µm)
• Regulatory Compliance: RoHS3 compliance and MSL rating (1 - Unlimited)

The identified substitute BSH-050-01-L-D-A maintains electrical and mechanical equivalence across all critical parameters. Packaging format differs (Tray vs. Tube) but does not affect functional compatibility. Mated stacking height specification (5mm) is provided for the substitute but does not impact board-level substitution.

Parameter Comparison

Engineering Selection Recommendations

Both ASP-65067-01 and BSH-050-01-L-D-A are Active products manufactured by Samtec Inc. with identical ROHS3 compliance and MSL ratings. Selection between these parts is based on packaging requirements and inventory availability rather than functional performance.

The ASP-65067-01 is supplied in Tube packaging, while the BSH-050-01-L-D-A is supplied in Tray packaging. Both parts satisfy identical electrical and mechanical specifications for 100-position surface mount connector socket applications. Regulatory compliance (ROHS3, REACH Unaffected, EAR99 classification) is equivalent across both options.

Frequently Asked Questions (FAQ)

Q: Can BSH-050-01-L-D-A be used as a direct replacement for ASP-65067-01?

A: Yes. Both parts are electrically and mechanically equivalent across all critical parameters: 100 positions, 0.020" pitch, 2 rows, surface mount configuration, gold contact finish, and identical height above board. The difference in packaging format (Tray vs. Tube) does not affect functional compatibility.

Q: What is the significance of the different packaging formats?

A: Packaging format affects handling, storage, and supply chain logistics but does not impact electrical or mechanical performance. Tube packaging is suitable for manual handling and smaller quantities, while Tray packaging is optimized for automated assembly processes and larger volume orders.

Q: Are there any compliance differences between these parts?

A: No. Both parts maintain identical RoHS3 compliance, REACH Unaffected status, and MSL rating of 1 (Unlimited). Regulatory classification (EAR99, HTSUS 8536.69.4040) is identical.

Q: What does the Mated Stacking Height specification mean for the substitute part?

A: Mated stacking height (5mm for BSH-050-01-L-D-A) indicates the height when two connectors are mated together. This specification is provided for reference but does not affect single-component board-level substitution decisions.

Q: How do I determine which part to select for my application?

A: Selection is based on packaging preference and supply chain availability. Both parts are functionally equivalent. If Tube packaging is required, use ASP-65067-01. If Tray packaging is preferred for automated assembly, use BSH-050-01-L-D-A.
