ASMB-BTE1-ZB332 Equivalent & Substitute Parts

Part Overview

The ASMB-BTE1-ZB332 is an RGB LED indicator in PLCC4 packaging manufactured by Broadcom Limited. This component is classified as LED Indication - Discrete and is used for visual signaling applications requiring red, green, and blue color output.

The ASMB-BTE1-ZB332 has reached obsolete product status. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production requirements for applications utilizing this component.

Substiute Parts

ASMB-BTE1-ZB332

Broadcom LimitedIn Stock: 830ASMB-BTE1-ZB332 Datasheet

Current PartRFQ

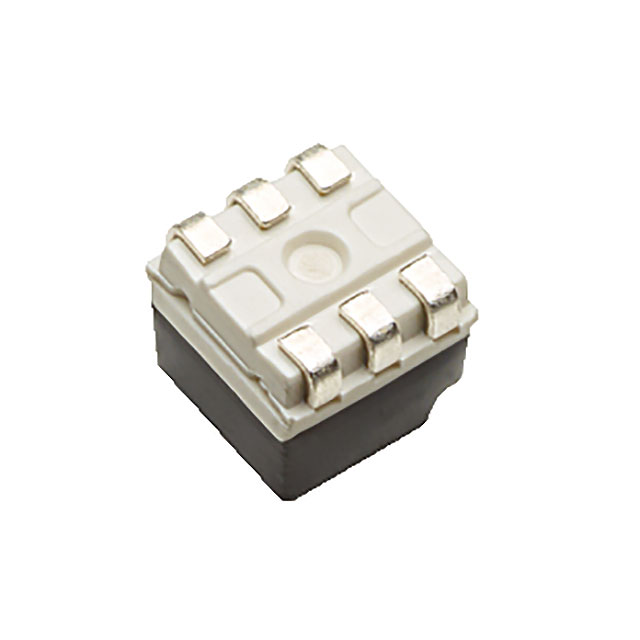

ASMB-UTF0-0D20B

Broadcom LimitedIn Stock: 65202ASMB-UTF0-0D20B Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the ASMB-BTE1-ZB332 is based on the following criteria derived from the provided parameters:

Primary Substitution Criteria:

• Manufacturer: Broadcom Limited (same manufacturer ensures design compatibility and quality standards)
• Functional Category: LED Indication - Discrete (maintains application function)
• Color Output: RGB (Red, Green, Blue) configuration
• ECCN Classification: EAR99 (export control consistency)
• HTSUS Code: 8541.41.0000 (tariff classification alignment)

Packaging Consideration: The ASMB-BTE1-ZB332 uses PLCC4 packaging. The substitute part ASMB-UTF0-0D20B uses 6-SMD, J-Lead packaging (6-PLCC supplier device package). While the physical package differs, both components are surface-mount RGB LEDs from the same manufacturer with equivalent functional classification.

Product Status: The substitute part ASMB-UTF0-0D20B maintains Active product status, ensuring ongoing availability and manufacturer support.

Parameter Comparison

Engineering Selection Recommendations

Substitution Feasibility:

The ASMB-UTF0-0D20B is the manufacturer-recommended substitute for the ASMB-BTE1-ZB332. Both components are manufactured by Broadcom Limited and serve identical functional roles as RGB LED indicators in discrete applications.

Compliance Advantages:

The ASMB-UTF0-0D20B provides documented RoHS3 compliance and REACH unaffected status, whereas the original part's compliance documentation is not provided in the source data. This substitution improves regulatory alignment for new designs and ongoing production.

Product Status:

The ASMB-UTF0-0D20B maintains Active product status with substantial inventory availability (65,099 pieces), ensuring reliable supply chain continuity compared to the obsolete ASMB-BTE1-ZB332.

Electrical and Optical Parameters:

The substitute part provides specified electrical characteristics (forward voltage, test current, wavelength data) and optical properties (millicandela ratings, viewing angle, lens style) that enable direct functional replacement in RGB indicator applications.

Frequently Asked Questions (FAQ)

Q: Why is the ASMB-BTE1-ZB332 being discontinued?

A: The ASMB-BTE1-ZB332 has reached obsolete product status. The manufacturer-recommended substitute is the ASMB-UTF0-0D20B, which provides equivalent RGB LED indication functionality with active product support.

Q: What is the primary difference between the ASMB-BTE1-ZB332 and ASMB-UTF0-0D20B?

A: The main difference is packaging format. The ASMB-BTE1-ZB332 uses PLCC4 packaging, while the ASMB-UTF0-0D20B uses 6-SMD, J-Lead packaging (6-PLCC). Both are surface-mount RGB LEDs from Broadcom Limited with identical functional classification.

Q: Are there electrical compatibility concerns when substituting these parts?

A: The ASMB-UTF0-0D20B provides complete electrical specifications including forward voltage (2V Red, 3.1V Green, 3.1V Blue), test current (20mA per color), and wavelength data. These parameters enable direct functional assessment for circuit compatibility.

Q: Does the ASMB-UTF0-0D20B meet current regulatory requirements?

A: Yes. The ASMB-UTF0-0D20B is ROHS3 compliant and REACH unaffected, meeting current regulatory standards for electronic components.

Q: What is the viewing angle of the substitute part?

A: The ASMB-UTF0-0D20B has a 110° viewing angle with a diffused lens and oval flat-top lens style.

Q: Is the substitute part available in the same packaging format?

A: No. The ASMB-UTF0-0D20B uses 6-SMD, J-Lead packaging rather than PLCC4. PCB layout and footprint modifications are required for implementation.

Q: What inventory status should be expected for the substitute part?

A: The ASMB-UTF0-0D20B is available in Cut Tape (CT) and Digi-Reel® packaging with 65,099 pieces in stock, providing reliable supply availability.
