ASJ-195-B-HT Equivalent & Substitute Parts

Part Overview

The ASJ-195-B-HT is a 4.60mm stereo audio jack connector manufactured by Adam Tech, designed for headphone and mini plug applications. This through-hole, right-angle solder connector features a single internal switch and accommodates 3 conductors with 4 contacts. The part is currently listed as obsolete, making identification of compatible substitute components essential for ongoing design support and production continuity.

Substiute Parts

ASJ-195-B-HT

Adam TechIn Stock: 1152ASJ-195-B-HT Datasheet

Current PartRFQ

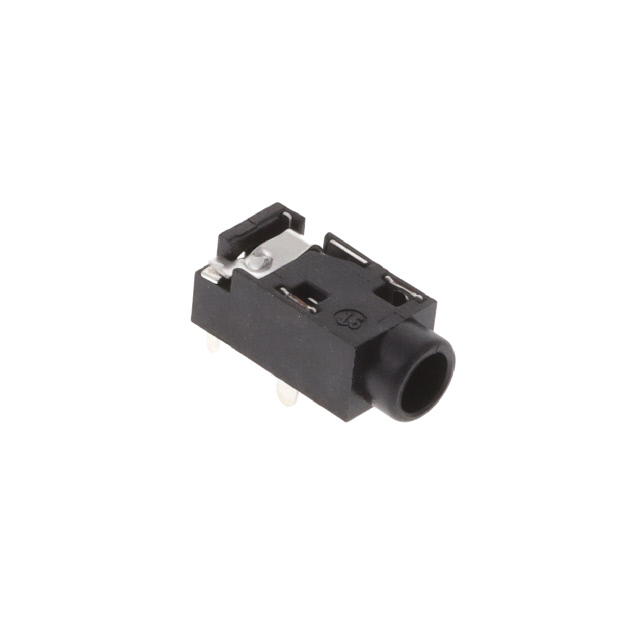

ASJ-200-B-HT

Adam TechIn Stock: 877ASJ-200-B-HT Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ASJ-195-B-HT is determined by strict equivalence across the following critical parameters:

• Connector type and mating diameter (4.60mm stereo phone jack)
• Signal configuration (3 Conductor, TRS stereo)
• Contact count (3 Conductors, 4 Contacts)
• Mounting configuration (Through Hole, Right Angle)
• Termination method (Solder)
• Internal switch configuration (Single Switch)
• Electrical ratings (30VDC, 500 mA)
• Environmental compliance (ROHS3, REACH Unaffected)

The ASJ-200-B-HT meets all substitution criteria and is classified as an equivalent part. This substitute maintains identical electrical, mechanical, and environmental specifications while offering the advantage of active product status and improved availability.

Parameter Comparison

Engineering Selection Recommendations

The ASJ-200-B-HT is the direct equivalent substitute for the obsolete ASJ-195-B-HT. Both components are ROHS3 compliant and REACH unaffected, meeting current regulatory requirements. The primary distinction is product status: ASJ-200-B-HT maintains active manufacturing status, ensuring long-term availability and supply chain continuity. For new designs or production transitions, ASJ-200-B-HT is the appropriate selection. Both parts are functionally and mechanically interchangeable within the specified operating parameters.

Frequently Asked Questions (FAQ)

Q: Can ASJ-200-B-HT be used as a direct replacement for ASJ-195-B-HT?

A: Yes. Both components share identical electrical ratings (30VDC, 500 mA), mechanical configuration (4.60mm through-hole right-angle solder), signal architecture (3 Conductor TRS stereo), and environmental compliance (ROHS3, REACH Unaffected). Direct substitution is supported without circuit or PCB modifications.

Q: What is the difference between ASJ-195-B-HT and ASJ-200-B-HT?

A: The components are electrically and mechanically equivalent. The primary difference is product lifecycle status: ASJ-195-B-HT is obsolete, while ASJ-200-B-HT is active. Packaging differs (ASJ-200-B-HT ships in trays), but this does not affect component performance or compatibility.

Q: Are there any compatibility concerns with PCB layout or footprint?

A: No. Both components maintain identical mounting type (through-hole, right angle), mating depth (0.551" / 14.00mm), and contact configuration. Existing PCB designs require no modification for substitution.

Q: What certifications apply to both parts?

A: Both ASJ-195-B-HT and ASJ-200-B-HT are ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory standards for electronic components.
