ASE2P-2M-10-Z Equivalent & Substitute Parts

Part Overview

The ASE2P-2M-10-Z is a slide switch manufactured by Nidec Components Corporation, configured as a DPDT (Double Pole Double Throw) switch with a 50mA current rating at 60V AC/DC. This component features a through-hole mounting design with PC pin termination and gold-plated contacts. The product is currently classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system support and component procurement.

Substiute Parts

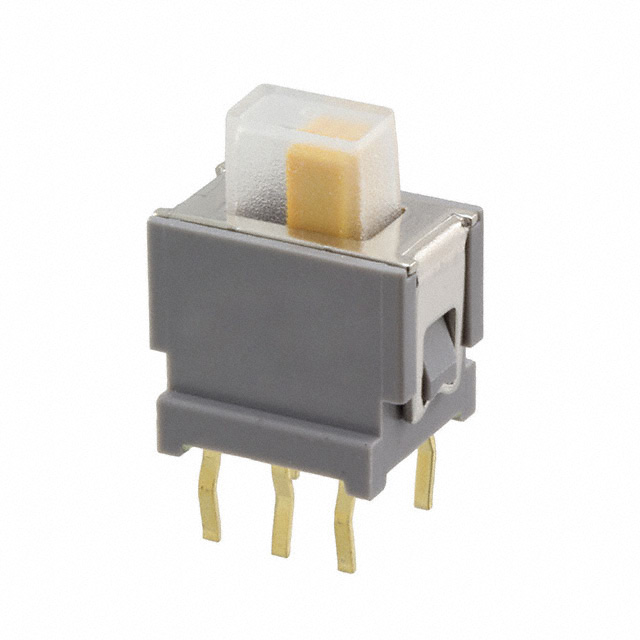

ASE2P-2M-10-Z

Nidec Components CorporationIn Stock: 653ASE2P-2M-10-Z Datasheet

Current PartRFQ

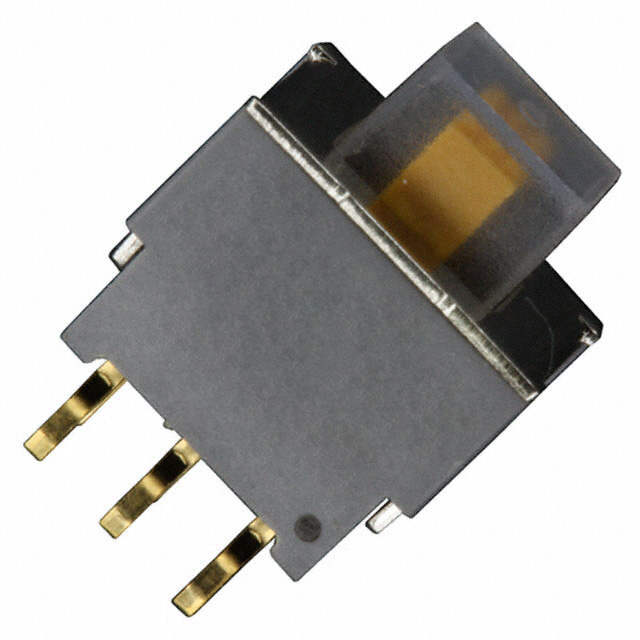

ASE2E-2M-10-Z

Nidec Components CorporationIn Stock: 4598ASE2E-2M-10-Z Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the ASE2P-2M-10-Z is determined by strict equivalence across the following critical parameters:

• Circuit configuration (DPDT)
• Switch function (On-Off-On)
• Current and voltage ratings (50mA at 60V AC/DC)
• Contact timing specification (Non-Shorting BBM)
• Actuator dimensions (2.80mm length, 2.20mm travel)
• Mounting and termination (Through Hole, PC Pin)
• Contact material properties (Gold finish)
• Environmental compliance (ROHS3, MSL 1)

The ASE2E-2M-10-Z meets all these criteria and is classified as an equivalent substitute. The primary distinction is product status: ASE2P-2M-10-Z is obsolete, while ASE2E-2M-10-Z is active in production with higher inventory availability.

Parameter Comparison

Engineering Selection Recommendations

The ASE2E-2M-10-Z is a direct functional equivalent to the ASE2P-2M-10-Z. Both components share identical electrical specifications, mechanical dimensions, and environmental compliance certifications. Selection between these parts should be based on the following factors:

• Product Status: ASE2E-2M-10-Z is active in production, ensuring long-term availability and supply chain stability. ASE2P-2M-10-Z is obsolete and subject to discontinuation.
• Inventory Availability: ASE2E-2M-10-Z has significantly higher stock levels (4515 units versus 643 units), supporting both immediate procurement and future replenishment.
• Packaging Format: ASE2E-2M-10-Z is supplied in tray packaging, which may offer advantages for automated assembly processes compared to bulk packaging.
• Compliance: Both parts maintain ROHS3 compliance and MSL 1 rating, meeting current regulatory and environmental requirements.

Frequently Asked Questions (FAQ)

Q: Can ASE2E-2M-10-Z be used as a direct replacement for ASE2P-2M-10-Z?

A: Yes. Both components are electrically and mechanically identical across all specified parameters, including circuit configuration, current/voltage ratings, actuator dimensions, contact timing, and environmental specifications. No circuit modifications or design changes are required.

Q: What is the difference between these two part numbers?

A: The primary differences are product status and packaging. ASE2P-2M-10-Z is obsolete with bulk packaging, while ASE2E-2M-10-Z is an active production part supplied in tray packaging. All functional and electrical characteristics are identical.

Q: Are there any compatibility concerns with PCB mounting or soldering?

A: No. Both parts use identical through-hole PC pin termination and share the same mechanical footprint. Existing PCB designs require no modification.

Q: Does packaging format affect component performance?

A: No. Packaging format (bulk versus tray) affects only handling, storage, and assembly logistics. Electrical and mechanical performance is identical regardless of packaging type.

Q: What is the significance of the "Non-Shorting (BBM)" contact timing specification?

A: This specification indicates that the switch contacts do not short together during transition between positions. The BBM (Break-Before-Make) timing ensures that one contact set opens before the other closes, preventing momentary short circuits in the circuit path.

Q: Are both parts suitable for washable applications?

A: Yes. Both ASE2P-2M-10-Z and ASE2E-2M-10-Z are specified as washable components, supporting cleaning processes in manufacturing environments.
