ASE22RL Equivalent & Substitute Parts

Part Overview

The ASE22RL is a slide switch manufactured by TE Connectivity ALCOSWITCH Switches, configured as a Double Pole Double Throw (DPDT) surface mount component with right angle termination. This switch is rated for 300mA AC at 115V and features gull wing termination for surface mount applications. The ASE22RL is classified as obsolete, necessitating identification of equivalent and substitute components for ongoing design requirements and production continuity.

Substiute Parts

ASE22RL

TE Connectivity ALCOSWITCH SwitchesIn Stock: 1095ASE22RL Datasheet

Current PartRFQ

1-1825010-0

TE Connectivity ALCOSWITCH SwitchesIn Stock: 13361-1825010-0 Datasheet

DirectRFQ

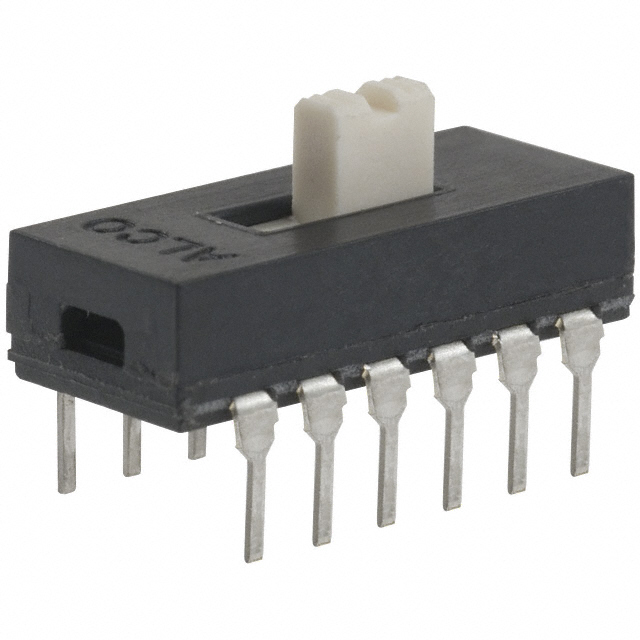

ASE42

TE Connectivity ALCOSWITCH SwitchesIn Stock: 1055ASE42 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the ASE22RL is determined by the following critical parameters: circuit configuration (DPDT), current rating (300mA AC), voltage rating (115V AC), contact timing (Shorting/MBB), switch function (On-On), operating temperature range (-40°C to 80°C), mechanical and electrical life (15,000 cycles), and contact material specifications (Copper Alloy with Silver finish).

Two substitute parts are identified within the ASE series:

1-1825010-0 maintains identical electrical and mechanical specifications to the ASE22RL, including DPDT circuit configuration, 300mA AC rating, 115V AC rating, and equivalent actuator and contact materials. This substitute differs in mounting configuration (Surface Mount, Right Angle with Gull Wing termination remains consistent) and product status (Active versus Obsolete). Packaging is provided in Tube format.

ASE42 provides functional substitution with modified circuit configuration (4PDT versus DPDT) and mounting type (Through Hole with PC Pin termination versus Surface Mount with Gull Wing termination). While maintaining identical electrical ratings (300mA AC, 115V AC), identical operating temperature range, and identical mechanical/electrical life specifications, the ASE42 represents a design-level substitution requiring circuit board layout modification.

Parameter Comparison

Engineering Selection Recommendations

1-1825010-0 is the primary substitute for ASE22RL applications. This part maintains identical circuit configuration (DPDT), electrical ratings (300mA AC, 115V AC), mechanical specifications, and mounting characteristics. The 1-1825010-0 is classified as Active product status, ensuring continued availability and supply chain support. This substitute achieves ROHS3 compliance and REACH Unaffected status, providing regulatory advantages over the obsolete ASE22RL. Packaging in Tube format accommodates standard component handling and assembly processes. Direct footprint and functional compatibility eliminates design modification requirements.

ASE42 serves as a functional alternative when circuit configuration expansion is acceptable. The 4PDT configuration provides additional switching capability compared to the DPDT ASE22RL. However, ASE42 substitution requires circuit board redesign due to Through Hole mounting with PC Pin termination, contrasting with the Surface Mount Gull Wing configuration of ASE22RL. ASE42 maintains identical electrical ratings and operating specifications but does not achieve ROHS3 compliance and carries REACH Affected status. ASE42 selection is appropriate for new designs requiring expanded switching functionality or for applications where through-hole mounting is preferred.

Frequently Asked Questions (FAQ)

Q: Can 1-1825010-0 replace ASE22RL without circuit board modification?

A: Yes. The 1-1825010-0 maintains identical mounting type (Surface Mount, Right Angle), termination style (Gull Wing), circuit configuration (DPDT), and all electrical specifications. Direct footprint compatibility eliminates design changes.

Q: What is the primary advantage of 1-1825010-0 over ASE22RL?

A: The 1-1825010-0 is classified as Active product status with ROHS3 compliance and REACH Unaffected certification, ensuring long-term availability and regulatory compliance. ASE22RL is obsolete and RoHS non-compliant.

Q: When should ASE42 be selected instead of 1-1825010-0?

A: ASE42 selection applies to applications requiring 4PDT circuit configuration (four independent switching poles) instead of DPDT (two poles). ASE42 also accommodates designs utilizing through-hole mounting technology. Circuit board redesign is required for ASE42 implementation.

Q: Are electrical ratings identical across all three parts?

A: Yes. ASE22RL, 1-1825010-0, and ASE42 all share identical current rating (300mA AC), voltage rating (115V AC), operating temperature range (-40°C to 80°C), mechanical life (15,000 cycles), and electrical life (15,000 cycles).

Q: What packaging formats are available for these substitutes?

A: 1-1825010-0 is supplied in Tube packaging. ASE42 is supplied in Bulk packaging. ASE22RL packaging format is not specified in available documentation.

Q: Does 1-1825010-0 meet current regulatory requirements?

A: Yes. 1-1825010-0 achieves ROHS3 compliance and carries REACH Unaffected status, meeting current regulatory requirements for electronic component procurement.

Q: Are there differences in actuator specifications between these parts?

A: ASE22RL and 1-1825010-0 share identical actuator length (2.67mm) and actuator material (Polyamide PA46, Nylon 4/6). ASE42 features actuator length of 2.79mm with identical material composition. All three parts maintain 950gf operating force.
