ASE1D-5M-10-Z Equivalent & Substitute Parts

Part Overview

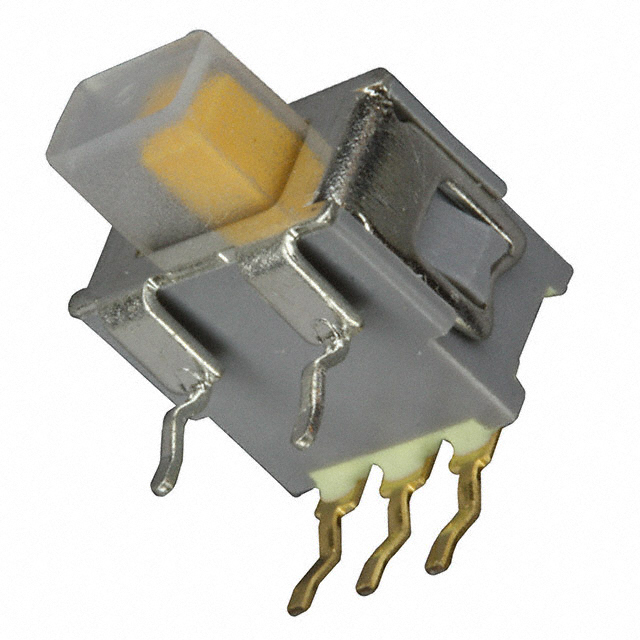

The ASE1D-5M-10-Z is an SPDT slide switch manufactured by Nidec Components Corporation, rated for 50mA at 60V AC/DC. This through-hole, right-angle mounted switch features non-shorting contact timing (BBM), gold-plated contacts, and a washable design. The part is active in production with 757 units in current inventory. Equivalent and substitute parts are identified to support design flexibility, inventory optimization, and supply chain continuity for applications requiring SPDT slide switch functionality.

Substiute Parts

ASE1D-5M-10-Z

Nidec Components CorporationIn Stock: 865ASE1D-5M-10-Z Datasheet

Current PartRFQ

OS102011MA1QN1

C&KIn Stock: 2238OS102011MA1QN1 Datasheet

SimilarRFQ

OS102011MA1QS1

C&KIn Stock: 19487OS102011MA1QS1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the ASE1D-5M-10-Z are identified based on matching core electrical and mechanical parameters: SPDT circuit configuration, On-On switch function, through-hole right-angle mounting, PC pin termination, and equivalent electrical life rating of 10,000 cycles. The substitute parts listed are C&K OS series switches that maintain these fundamental characteristics.

Substitution is constrained by the following critical parameters:

• Circuit type: SPDT only
• Switch function: On-On
• Mounting configuration: Through Hole, Right Angle
• Termination: PC Pin
• Electrical life: 10,000 Cycles minimum
• RoHS3 compliance required

Note: Substitute parts operate at lower voltage and current ratings (12V DC, 100mA) compared to the main part (60V AC/DC, 50mA). Applications must verify that reduced electrical ratings are acceptable for the intended use case.

Parameter Comparison

Engineering Selection Recommendations

All listed parts maintain ROHS3 compliance and MSL 1 (Unlimited) moisture sensitivity rating, supporting deployment in standard manufacturing and storage environments without special handling requirements.

OS102011MA1QN1 maintains non-shorting contact timing (BBM) identical to the main part, making it suitable for applications where contact sequencing during switching is critical. OS102011MA1QS1 employs shorting contact timing (MBB), introducing a momentary short between contacts during transition; this configuration is appropriate only for applications tolerant of or requiring this contact behavior.

Both C&K substitutes operate at reduced voltage (12V DC versus 60V AC/DC) and are rated for DC operation only. Circuit designs must confirm that 12V DC operation is compatible with the intended application. The higher current rating of the C&K parts (100mA versus 50mA) provides additional margin in low-voltage applications.

Frequently Asked Questions (FAQ)

Q: Can OS102011MA1QN1 or OS102011MA1QS1 directly replace ASE1D-5M-10-Z in all applications?

A: Direct replacement is limited to applications operating at 12V DC or lower. The ASE1D-5M-10-Z is rated for 60V AC/DC operation; substitute parts are rated for 12V DC only. Voltage compatibility must be verified before substitution.

Q: What is the difference between OS102011MA1QN1 and OS102011MA1QS1?

A: Both parts are electrically identical except for contact timing. OS102011MA1QN1 uses non-shorting (BBM) contact timing, matching the ASE1D-5M-10-Z behavior. OS102011MA1QS1 uses shorting (MBB) contact timing, which creates a momentary short between contacts during switching. Select based on circuit requirements for contact sequencing.

Q: Are the substitute parts available in the same packaging as the main part?

A: No. The ASE1D-5M-10-Z is supplied in Tray packaging, while OS102011MA1QN1 and OS102011MA1QS1 are supplied in Bulk packaging. Procurement and handling procedures may differ accordingly.

Q: Do the substitute parts support AC operation?

A: No. Both C&K substitute parts are rated for DC operation only at 12V. The ASE1D-5M-10-Z supports both AC and DC operation at 60V. Applications requiring AC switching capability must use the main part or identify alternative substitutes.

Q: What is the operating temperature difference between the main part and substitutes?

A: The ASE1D-5M-10-Z operates from -20°C to 85°C. Both C&K substitutes operate from -30°C to 70°C. Applications requiring operation above 70°C must use the main part.
