ASDMPC-25.000MHZ-LR-T Equivalent & Substitute Parts

Part Overview

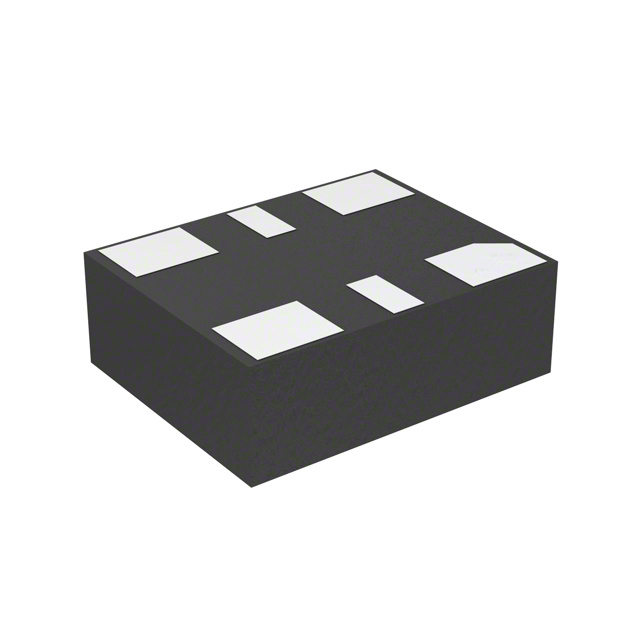

The ASDMPC-25.000MHZ-LR-T is a 25 MHz MEMS-based XO (Standard) CMOS oscillator manufactured by Abracon LLC. This component operates across a 2.25V to 3.6V supply range with Enable/Disable functionality, housed in a 6-SMD, No Lead package. The oscillator is classified as Active product status and is suitable for applications requiring stable frequency generation with low power consumption in disable mode. Substitute parts are identified when equivalent electrical specifications and mechanical compatibility are maintained across the critical performance parameters.

Key Parameters

Parameter	Value
Frequency	25 MHz
Output Type	CMOS
Voltage Supply Range	2.25V ~ 3.6V
Frequency Stability	±25ppm
Operating Temperature Range	-40°C ~ 85°C
Current Supply (Max)	35mA
Current Supply (Disable Max)	22mA
Function	Enable/Disable
Base Resonator	MEMS
Package Type	6-SMD, No Lead
Package Dimensions	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height (Seated Max)	0.035" (0.90mm)
Mounting Type	Surface Mount
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the ASDMPC-25.000MHZ-LR-T are identified based on strict equivalence across the following critical parameters:

Frequency: 25 MHz (exact match required)
Output Type: CMOS
Voltage Supply Range: 2.25V ~ 3.6V (identical range)
Frequency Stability: ±25ppm
Operating Temperature Range: -40°C ~ 85°C
Current Specifications: 35mA max supply, 22mA max disable
Function: Enable/Disable capability
Base Resonator: MEMS technology
Package: 6-SMD, No Lead with identical physical dimensions (2.50mm x 2.00mm, height 0.90mm max)
Compliance: ROHS3 Compliant, REACH Unaffected

The DSC1121DI2-025.0000T from Microchip Technology meets all these parameters and qualifies as a parametric equivalent substitute.

Parameter Comparison

Parameter	ASDMPC-25.000MHZ-LR-T (Abracon)	DSC1121DI2-025.0000T (Microchip)	Match Status
Frequency	25 MHz	25 MHz	Equivalent
Output Type	CMOS	CMOS	Equivalent
Voltage Supply Range	2.25V ~ 3.6V	2.25V ~ 3.6V	Equivalent
Frequency Stability	±25ppm	±25ppm	Equivalent
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	Equivalent
Current Supply (Max)	35mA	35mA	Equivalent
Current Supply (Disable Max)	22mA	22mA	Equivalent
Function	Enable/Disable	Enable/Disable	Equivalent
Base Resonator	MEMS	MEMS	Equivalent
Package Type	6-SMD, No Lead	6-SMD, No Lead	Equivalent
Package Dimensions	2.50mm x 2.00mm	2.50mm x 2.00mm	Equivalent
Height (Seated Max)	0.90mm	0.90mm	Equivalent
Mounting Type	Surface Mount	Surface Mount	Equivalent
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	Equivalent
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	Equivalent
Product Status	Active	Active	Equivalent

Engineering Selection Recommendations

Both the ASDMPC-25.000MHZ-LR-T and DSC1121DI2-025.0000T are Active status products with full ROHS3 compliance and REACH unaffected status. The Microchip DSC1121DI2-025.0000T carries AEC-Q100 automotive qualification, which provides additional reliability assurance for applications requiring automotive-grade components. Selection between these parts should be based on supply chain availability, packaging format preference (the Microchip part is available in Tape & Reel format), and any specific qualification requirements of the end application. Both parts are electrically and mechanically interchangeable within the specified parameters.

Frequently Asked Questions (FAQ)

Q: Can the DSC1121DI2-025.0000T directly replace the ASDMPC-25.000MHZ-LR-T on existing PCBs?

A: Yes. Both parts share identical package dimensions (2.50mm x 2.00mm), height (0.90mm max), and pinout configuration in the 6-SMD, No Lead format. No PCB layout modifications are required.

Q: Are the electrical specifications identical between these two oscillators?

A: Yes. Both parts operate at 25 MHz with CMOS output, 2.25V to 3.6V supply range, ±25ppm frequency stability, -40°C to 85°C operating temperature, and identical current consumption specifications (35mA max, 22mA max in disable mode).

Q: What is the difference between these two parts?

A: The primary differences are manufacturer (Abracon vs. Microchip) and packaging format. The Microchip part includes AEC-Q100 automotive qualification and is supplied in Tape & Reel format, while the Abracon part is available in standard packaging.

Q: Are both parts RoHS compliant?

A: Yes. Both the ASDMPC-25.000MHZ-LR-T and DSC1121DI2-025.0000T are ROHS3 compliant with Moisture Sensitivity Level 1 (Unlimited).

Q: Can I use either part in automotive applications?

A: The Microchip DSC1121DI2-025.0000T carries AEC-Q100 qualification, making it suitable for automotive applications. The Abracon part does not list automotive qualification in the provided specifications.
