Equivalent & Substitute Parts for ASA00CC18-L

Part Overview

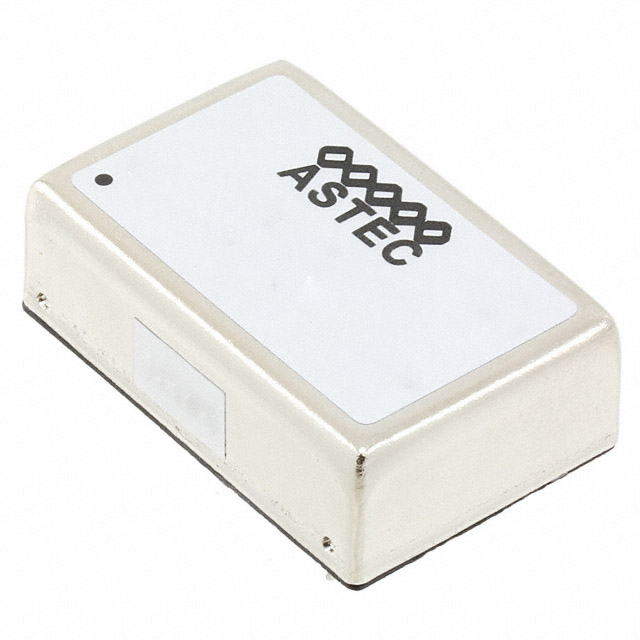

ASA00CC18-L is a DC DC CONVERTER +/-15V 6W manufactured by ARTESYN / Advanced Energy. This isolated module provides two outputs of +15V and -15V at a maximum of 200mA each, with a total power rating of 6W. It operates from a 9V to 36V input range, features 1.5 kV isolation, and is designed for ITE (Commercial) applications with SCP (Short Circuit Protection) functionality. The ASA00CC18-L is offered in an 8-DIP through hole module with dimensions of 1.25" x 0.80" x 0.40". This product is classified as Obsolete, making the identification of strictly equivalent or substitute DC DC converter modules critical for continuity of legacy designs and servicing requirements.

Substiute Parts

ASA00CC18-L

ARTESYN / Advanced EnergyIn Stock: 1530ASA00CC18-L Datasheet

Current PartRFQ

ASA00CC18-LS

ARTESYN / Advanced EnergyIn Stock: 1301ASA00CC18-LS Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for DC DC converter modules in the ITE (Commercial) category is restricted to parts with strictly matching electrical characteristics, mechanical package, and key certifications where provided. Substitute parts are grouped based on equivalence of these parameters: number of outputs, input voltage range, output voltages, maximum output current, total power, voltage isolation, mounting type, package, size, operating temperature, and protection features. Only parts matching every listed parameter are identified as direct substitutes.

Parameter Comparison

Engineering Selection Recommendations

When selecting a substitute for the obsolete ASA00CC18-L, the direct alternative ASA00CC18-LS exactly matches all provided electrical, mechanical, and environmental parameters. ASA00CC18-LS offers an active status and maintains compliance with ROHS3, REACH Unaffected, and all other certifications outlined.

Frequently Asked Questions (FAQ)

Q1: What are the critical parameters for substituting ASA00CC18-L DC DC converter modules?
A1: Substitution requires exact matching of number of outputs, input voltage range, output voltages, maximum output current, total power, isolation rating, mounting type, package, size, operating temperature, and protection features.

Q2: Are ASA00CC18-L and ASA00CC18-LS interchangeable in existing designs?
A2: ASA00CC18-LS matches all electrical and mechanical parameters with ASA00CC18-L, including package, output voltages, currents, and size.

Q3: Does the substitute part ASA00CC18-LS provide the same protection and compliance features?
A3: ASA00CC18-LS includes SCP and maintains the same Moisture Sensitivity Level, ECCN, and RoHS/REACH status.

Q4: Is there any difference in mounting or physical compatibility?
A4: Both parts use the 8-DIP through hole module with identical dimensions, ensuring physical compatibility.

Q5: How does product status affect substitute part selection?
A5: ASA00CC18-L is obsolete; ASA00CC18-LS is active, ensuring availability for ongoing production and servicing needs.
