ARX383CSSM28SMKA0-CP1 Equivalent & Substitute Parts

Part Overview

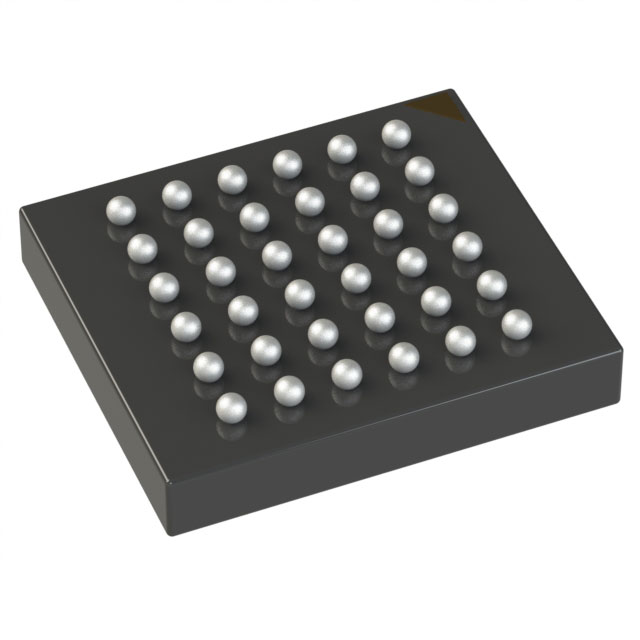

The ARX383CSSM28SMKA0-CP1 is a CMOS image sensor manufactured by onsemi, designed for optical sensing applications requiring a 640H x 480V pixel array with 2.8µm x 2.8µm pixel dimensions. This component is packaged in a 35-ODCSP (3.92x3.55) ball grid array format.

The ARX383CSSM28SMKA0-CP1 has reached obsolete product status. Locating equivalent or substitute components is necessary to support ongoing system maintenance, repair operations, and new design implementations where this sensor specification remains applicable.

Substiute Parts

ARX383CSSM28SMKA0-CP1

onsemiIn Stock: 1039ARX383CSSM28SMKA0-CP1 Datasheet

Current PartRFQ

ARX383CSSM28SMKA0-CP

onsemiIn Stock: 1105ARX383CSSM28SMKA0-CP Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ARX383CSSM28SMKA0-CP1 is determined by the following critical parameters:

Electrical Compatibility Parameters:

• Device Type: CMOS Image Sensor
• Active Pixel Array: 640H x 480V
• Pixel Size: 2.8µm x 2.8µm
• Frames per Second: 120

Mechanical Compatibility Parameters:

• Package Type: 35-WFBGA, CSPBGA
• Supplier Device Package: 35-ODCSP (3.92x3.55)

Manufacturing Parameters:

• Manufacturer: onsemi

The substitute part ARX383CSSM28SMKA0-CP matches all critical electrical and mechanical parameters with the obsolete ARX383CSSM28SMKA0-CP1, differing only in product status (Active vs. Obsolete) and packaging designation (Bulk vs. standard).

Parameter Comparison

Engineering Selection Recommendations

The ARX383CSSM28SMKA0-CP is the direct substitute for the obsolete ARX383CSSM28SMKA0-CP1. Both components share identical electrical specifications, mechanical dimensions, and package configurations. The primary distinction is product lifecycle status: ARX383CSSM28SMKA0-CP maintains active manufacturing and distribution status, ensuring component availability for procurement and supply chain continuity.

Selection of ARX383CSSM28SMKA0-CP is appropriate for applications requiring the 640H x 480V CMOS image sensor specification with 120 frames per second performance in the 35-ODCSP package format. The active product status provides access to current manufacturing batches and standard distribution channels.

Frequently Asked Questions (FAQ)

Q: Can ARX383CSSM28SMKA0-CP directly replace ARX383CSSM28SMKA0-CP1 in existing designs?

A: Yes. Both components are electrically and mechanically identical. The pixel array (640H x 480V), pixel dimensions (2.8µm x 2.8µm), frame rate (120 fps), and package configuration (35-ODCSP) are equivalent. PCB layout and interface connections require no modification.

Q: What is the difference between the two part numbers?

A: The ARX383CSSM28SMKA0-CP1 is obsolete, while ARX383CSSM28SMKA0-CP maintains active product status. The suffix designation reflects lifecycle classification. Electrical and mechanical specifications are identical.

Q: Are there any packaging differences between these components?

A: Both components use the 35-ODCSP (3.92x3.55) package format with 35-WFBGA and CSPBGA ball grid array configurations. Packaging dimensions and pin assignments are identical. The ARX383CSSM28SMKA0-CP is supplied in Bulk packaging designation.

Q: What parameters determine substitution eligibility for this image sensor?

A: Substitution is determined by matching the active pixel array (640H x 480V), pixel size (2.8µm x 2.8µm), frame rate (120 fps), package type (35-WFBGA, CSPBGA), and supplier device package (35-ODCSP 3.92x3.55). All parameters must align for functional equivalence.

Q: Is the ARX383CSSM28SMKA0-CP currently available for procurement?

A: Yes. The ARX383CSSM28SMKA0-CP maintains active product status with current manufacturing support from onsemi, ensuring standard availability through authorized distribution channels.
