APH-SMAJ-NJBHD Equivalent & Substitute Parts

Part Overview

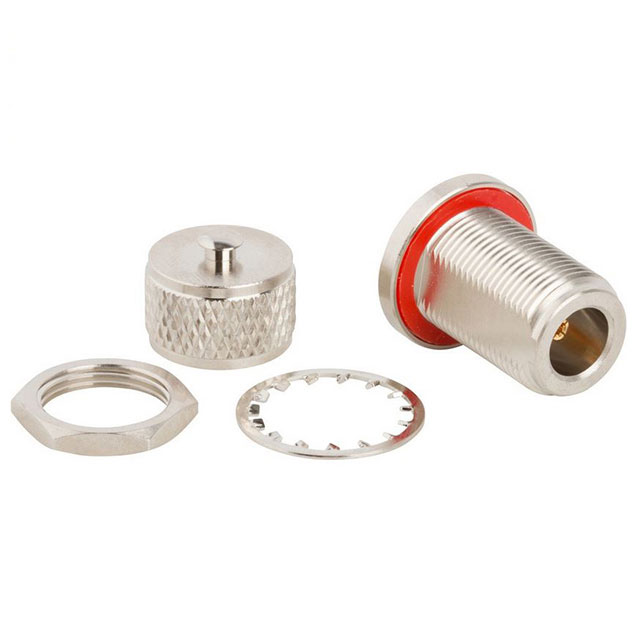

The APH-SMAJ-NJBHD is a coaxial adapter connector manufactured by Amphenol RF, designed to convert between SMA Jack (Female Socket) and N Jack (Female Socket) configurations. This adapter operates at 50 Ohms impedance with a maximum frequency rating of 11 GHz and supports panel mount bulkhead installation with threaded fastening.

The APH-SMAJ-NJBHD is classified as Obsolete. Identification of equivalent substitute parts is necessary to ensure continued availability for system integration, maintenance, and new production applications where this adapter type is specified.

Substiute Parts

APH-SMAJ-NJBHD

Amphenol RFIn Stock: 1021APH-SMAJ-NJBHD Datasheet

Current PartRFQ

242125

Amphenol RFIn Stock: 2637242125 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the APH-SMAJ-NJBHD is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Adapter Type: Jack to Jack
• Adapter Series: SMA to N
• Center Gender: Female to Female
• Impedance: 50 Ohms
• Style: Straight
• Mounting Type: Panel Mount
• Mounting Feature: Bulkhead
• Fastening Type: Threaded, Threaded
• Frequency - Max: 11 GHz
• Operating Temperature Range: -65°C ~ 165°C
• Body Material: Brass
• Body Finish: Nickel
• Center Contact Material: Beryllium Copper
• Center Contact Plating: Gold
• Dielectric Material: Polytetrafluoroethylene (PTFE)

The substitute part 242125 meets all mandatory matching parameters and is therefore classified as a direct equivalent substitute for the APH-SMAJ-NJBHD.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: 242125

The part 242125 is the direct equivalent substitute for the obsolete APH-SMAJ-NJBHD. Both parts are manufactured by Amphenol RF and share identical electrical and mechanical specifications across all critical parameters.

Product Status Advantage: Part 242125 is classified as Active, ensuring continued availability and supply chain reliability compared to the Obsolete status of APH-SMAJ-NJBHD.

Compliance Status: Part 242125 carries ROHS3 Compliant certification, representing an enhanced compliance posture relative to the RoHS Compliant designation of APH-SMAJ-NJBHD. Both parts maintain EAR99 export classification and identical HTSUS coding.

Additional Compliance: Part 242125 includes REACH Affected status notation, indicating full regulatory documentation for European market applications.

Mating Cycles: Part 242125 specifies 500 mating cycles, providing defined mechanical durability data for design lifecycle calculations.

Packaging: Part 242125 is supplied in Bag packaging, whereas APH-SMAJ-NJBHD packaging information is not specified.

For applications requiring the SMA Jack to N Jack adapter configuration with 50 Ohm impedance, panel mount bulkhead installation, and operation to 11 GHz, part 242125 provides full functional and compliance equivalence to the obsolete APH-SMAJ-NJBHD.

Frequently Asked Questions (FAQ)

Q: Can 242125 be used as a direct replacement for APH-SMAJ-NJBHD?

A: Yes. Part 242125 is a direct equivalent substitute. Both parts share identical adapter type, connector series, gender configuration, impedance, frequency rating, mounting specifications, materials, and operating temperature range. All critical electrical and mechanical parameters match.

Q: What is the primary reason to transition from APH-SMAJ-NJBHD to 242125?

A: APH-SMAJ-NJBHD is classified as Obsolete, which creates supply chain risk. Part 242125 is classified as Active, ensuring continued availability and long-term procurement reliability.

Q: Are there compliance differences between these parts?

A: Both parts are RoHS compliant and carry EAR99 export classification. Part 242125 carries ROHS3 Compliant certification, which represents an updated compliance standard. Part 242125 also includes REACH Affected status, indicating full European regulatory documentation.

Q: Do these adapters support the same frequency range?

A: Yes. Both APH-SMAJ-NJBHD and 242125 support a maximum frequency of 11 GHz and operate at 50 Ohms impedance.

Q: What is the operating temperature range for these adapters?

A: Both parts operate across the temperature range of -65°C to 165°C, supporting extended industrial and aerospace applications.

Q: Are the physical mounting specifications identical?

A: Yes. Both parts feature panel mount bulkhead installation with threaded fastening on both ends, straight style orientation, and identical material composition (Brass body with Nickel finish, Beryllium Copper center contact with Gold plating, and PTFE dielectric).

Q: What accessories are included with these adapters?

A: Both parts include 4 pieces per connector: 1 Connector, 1 Gasket, 1 Lockwasher, and 1 Nut.

Q: Does part 242125 provide mating cycle specifications?

A: Yes. Part 242125 specifies 500 mating cycles, providing defined mechanical durability data. APH-SMAJ-NJBHD does not specify mating cycle data.

Q: What is the packaging format for 242125?

A: Part 242125 is supplied in Bag packaging. APH-SMAJ-NJBHD packaging information is not specified in available documentation.
