APH-SMAJ-NJ Equivalent & Substitute Parts

Part Overview

The APH-SMAJ-NJ is a coaxial adapter connector manufactured by Amphenol RF, designed to convert between SMA Jack (Female Socket) and N Jack (Female Socket) interfaces. This adapter operates at 50 Ohms impedance with a maximum frequency rating of 11 GHz and supports operating temperatures from -65°C to 165°C.

The APH-SMAJ-NJ is classified as an obsolete product. Identifying equivalent substitute parts is necessary to ensure continued availability for maintenance, repair, and system integration where this adapter is specified in existing designs or installations.

Substiute Parts

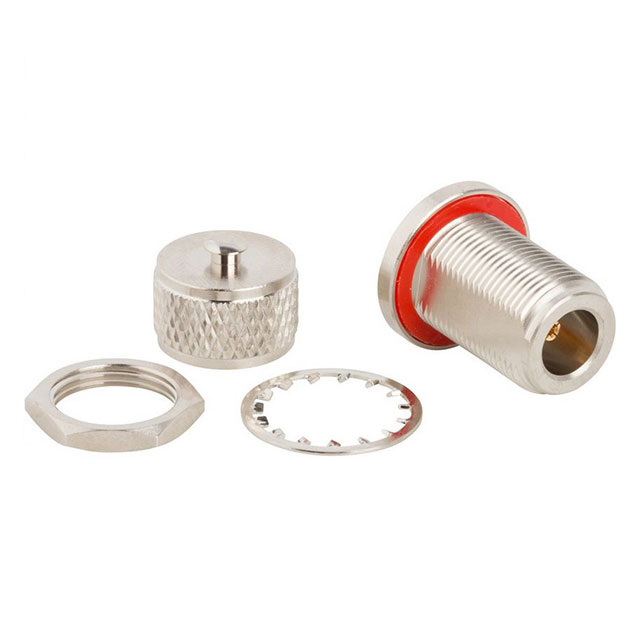

APH-SMAJ-NJ

Amphenol RFIn Stock: 1146APH-SMAJ-NJ Datasheet

Current PartRFQ

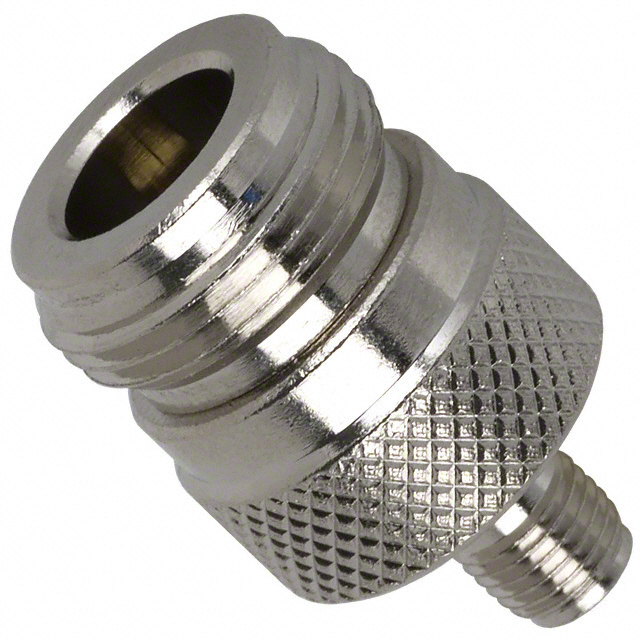

242115

Amphenol RFIn Stock: 1257242115 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the APH-SMAJ-NJ is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Adapter Type: Jack to Jack
• Adapter Series: SMA to N
• Center Gender: Female to Female
• Convert From: SMA Jack, Female Socket
• Convert To: N Jack, Female Socket
• Impedance: 50 Ohms
• Style: Straight
• Mounting Type: Free Hanging (In-Line)
• Fastening Type: Threaded, Threaded
• Frequency - Max: 11 GHz
• Operating Temperature Range: -65°C ~ 165°C
• Body Material: Brass
• Body Finish: Nickel
• Center Contact Material: Phosphor Bronze
• Center Contact Plating: Gold
• Dielectric Material: Polytetrafluoroethylene (PTFE)

The substitute part 242115 meets all mandatory matching parameters and is therefore classified as a direct equivalent substitute for the obsolete APH-SMAJ-NJ.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: 242115

The part 242115 is the direct equivalent substitute for the obsolete APH-SMAJ-NJ. Selection of 242115 is based on the following engineering criteria:

Product Status: The APH-SMAJ-NJ is classified as obsolete, while 242115 is classified as active. Active product status ensures continued manufacturer support, availability, and compliance with current standards.

Compliance Certifications: Both parts maintain RoHS compliance. The APH-SMAJ-NJ carries RoHS Compliant status, while 242115 carries ROHS3 Compliant status, indicating enhanced compliance with current regulatory requirements. Additionally, 242115 is REACH Affected, confirming adherence to current chemical safety regulations.

Electrical and Mechanical Equivalence: All electrical parameters (impedance, frequency rating, operating temperature range) and mechanical parameters (adapter type, connector genders, fastening type, materials, and finishes) are identical between the two parts.

Availability: Both parts are available in stock. The substitute part 242115 has 1150 pieces in inventory, providing adequate supply for procurement.

Packaging: The substitute part 242115 is supplied in bag packaging, suitable for standard component handling and integration workflows.

Frequently Asked Questions (FAQ)

Q: Can 242115 be used as a direct replacement for APH-SMAJ-NJ in existing designs?

A: Yes. The part 242115 is electrically and mechanically equivalent to APH-SMAJ-NJ across all specified parameters. Both parts are 50 Ohm SMA Jack to N Jack female-to-female adapters with identical frequency ratings, operating temperature ranges, and material specifications.

Q: Why is APH-SMAJ-NJ classified as obsolete?

A: The APH-SMAJ-NJ has been discontinued by the manufacturer. The part 242115 is the active equivalent that replaces it in the product line.

Q: Are there any compliance differences between APH-SMAJ-NJ and 242115?

A: Both parts are RoHS compliant. The APH-SMAJ-NJ carries RoHS Compliant status, while 242115 carries ROHS3 Compliant status. Additionally, 242115 is REACH Affected. These differences reflect current regulatory standards and do not affect functional compatibility.

Q: What is the packaging difference between these parts?

A: The APH-SMAJ-NJ packaging is not specified in the available data. The substitute part 242115 is supplied in bag packaging, which is standard for coaxial adapter connectors.

Q: Are both parts available for immediate procurement?

A: Yes. APH-SMAJ-NJ has 1055 pieces in stock, and 242115 has 1150 pieces in stock, both listed as new original inventory.

Q: Do these adapters support the same frequency range?

A: Yes. Both APH-SMAJ-NJ and 242115 support a maximum frequency of 11 GHz and operate across the same temperature range of -65°C to 165°C.

Q: What materials are used in the construction of these adapters?

A: Both adapters use brass bodies with nickel finish, phosphor bronze center contacts with gold plating, and polytetrafluoroethylene (PTFE) dielectric material.
