APC08G08-J Equivalent & Substitute Parts Engineering Reference

Part Overview

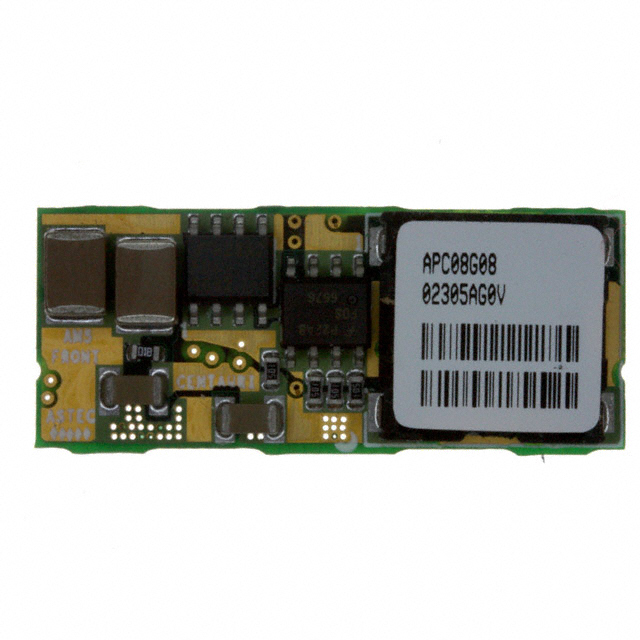

The ARTESYN / Advanced Energy APC08G08-J is a DC DC converter designed as a Non-Isolated PoL Module, providing a single output of 2.5V at up to 8A, with an input voltage range of 6.5V to 13V, and a maximum output power of 30W. The product is classified as obsolete, necessitating the identification of substitute or equivalent DC DC converter models to ensure continued product integration and replacement in relevant commercial applications.

Substiute Parts

APC08G08-J

ARTESYN / Advanced EnergyIn Stock: 942APC08G08-J Datasheet

Current PartRFQ

SMT10E-12W3V3J

ARTESYN / Advanced EnergyIn Stock: 1138SMT10E-12W3V3J Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts are selected based on matching electrical and mechanical parameters including converter type (Non-Isolated PoL Module), number of outputs (1), input voltage range, output voltage range, maximum output current, maximum power rating, applications category, operating temperature range, mounting style, package/case type, and physical dimensions. Only parameters explicitly provided are considered in determining compatibility for substitution.

Parameter Comparison

Engineering Selection Recommendations

The APC08G08-J is marked as obsolete and RoHS non-compliant, necessitating substitution for continued use in designs requiring current product status and compliance. SMT10E-12W3V3J is active and RoHS compliant, meeting regulatory requirements for new designs where compliance and availability are required. Moisture Sensitivity Level differs, with SMT10E-12W3V3J rated at MSL 3 (168 Hours), which must be considered in manufacturing environments where moisture exposure is controlled within specified limits.

Frequently Asked Questions (FAQ)

Q1: What parameters are critical when selecting a substitute for APC08G08-J?
A1: Key substitution criteria are converter type, number of outputs, input voltage range, output voltage range, maximum output current, power rating, application category, operating temperature range, mounting style, package/case type, size/dimension, RoHS compliance, and moisture sensitivity level.

Q2: Is the substitute part SMT10E-12W3V3J compatible in terms of mounting and size?
A2: SMT10E-12W3V3J is surface mount and dimensions are similar to APC08G08-J, accommodating comparable board layouts and mechanical integration. Check size/dimension fields for specific clearance.

Q3: What is the difference in RoHS status between APC08G08-J and its substitute?
A3: APC08G08-J is RoHS non-compliant, while SMT10E-12W3V3J is RoHS compliant. This is critical for meeting current environmental and regulatory standards.

Q4: Are there differences in the moisture sensitivity level (MSL) between these models?
A4: APC08G08-J has MSL 1 (Unlimited), whereas SMT10E-12W3V3J is rated at MSL 3 (168 Hours). This should be considered for processing and storage controls.

Q5: Can the input/output voltage and current ranges of SMT10E-12W3V3J substitute all operating conditions of APC08G08-J?
A5: SMT10E-12W3V3J supports an adjustable output voltage range of 0.8 ~ 3.63V with up to 10A output and 33W maximum power, which encompasses and exceeds the output voltage and current rating of APC08G08-J within its specified input voltage range. Review compatibility based strictly on provided parameters.
