Equivalent & Substitute Parts for ANCF2-10HRA

Part Overview

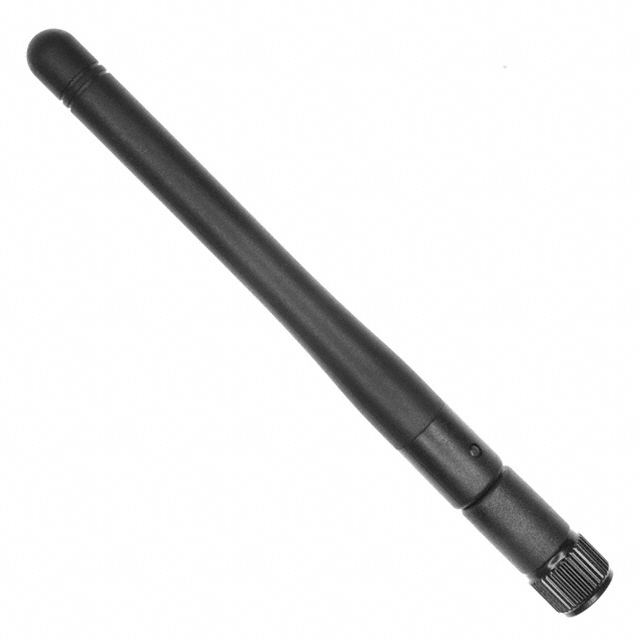

The ANCF2-10HRA, manufactured by Multi-Tech Systems Inc., is an RF antenna classified as a whip, tilt connector mount type. It operates at center frequencies of 850MHz and 1.9GHz, suited for UHF (300MHz ~ 1GHz, 1GHz ~ 2GHz) frequency groups. The product is currently marked as obsolete, necessitating the identification of equivalent or substitute RF whip antennas to maintain component availability for legacy systems and ongoing designs. Substitute selection is guided strictly by electrical and mechanical parameters.

Substiute Parts

ANCF2-10HRA

Multi-Tech Systems Inc.In Stock: 1661ANCF2-10HRA Datasheet

Current PartRFQ

DELTA7B/X/SMAM/S/S/11

Siretta LtdIn Stock: 869DELTA7B/X/SMAM/S/S/11 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The selection of equivalent and substitute RF antennas has been strictly determined by the following parameters, as provided in the product data:

• Frequency (Center/Band)
• Frequency Group
• Antenna Type
• Number of Bands
• Gain
• Termination
• Mounting Type
• Height (Max)
• RoHS Status

Substitute parts are included if they match or are compatible according to these parameters, ensuring functional and mechanical interchangeability within the same use case.

Parameter Comparison

Engineering Selection Recommendations

Both ANCF2-10HRA and DELTA7B/X/SMAM/S/S/11 are ROHS3 Compliant. ANCF2-10HRA is obsolete, while DELTA7B/X/SMAM/S/S/11 is active, supporting ongoing supply chain continuity. There are no additional compliance or certification differences in the provided parameters.

Frequently Asked Questions (FAQ)

Q1: What parameters determine a valid substitute for ANCF2-10HRA?
A1: Substitution is determined by matching frequency (center/band), frequency group, antenna type, number of bands, gain, termination, mounting type, height (max), and RoHS status.

Q2: Is the termination type between ANCF2-10HRA and DELTA7B/X/SMAM/S/S/11 fully compatible?
A2: ANCF2-10HRA specifies "Connector," while DELTA7B/X/SMAM/S/S/11 specifies "SMA Male." Compatibility depends on whether the connector type required is SMA Male.

Q3: Are both parts suitable for connector mount applications?
A3: Yes, both ANCF2-10HRA and DELTA7B/X/SMAM/S/S/11 are specified as connector mount antennas.

Q4: Does the differences in the number of bands affect the substitution?
A4: Provided parameters indicate ANCF2-10HRA supports two bands, while DELTA7B/X/SMAM/S/S/11 supports four bands, including all ANCF2-10HRA frequencies.

Q5: Are there differences in RoHS compliance between the main and substitute parts?
A5: Both parts are ROHS3 Compliant.

Q6: Is the change in antenna height significant?
A6: ANCF2-10HRA has a height of 4.000" (101.60mm); DELTA7B/X/SMAM/S/S/11 has a height of 4.331" (110.00mm). This should be evaluated for mechanical clearance within the application.

Q7: How does product status affect selection?
A7: ANCF2-10HRA is obsolete. Selection of DELTA7B/X/SMAM/S/S/11, which is active, ensures continued availability.
