AML24EBA2AC05 Equivalent & Substitute Parts

Part Overview

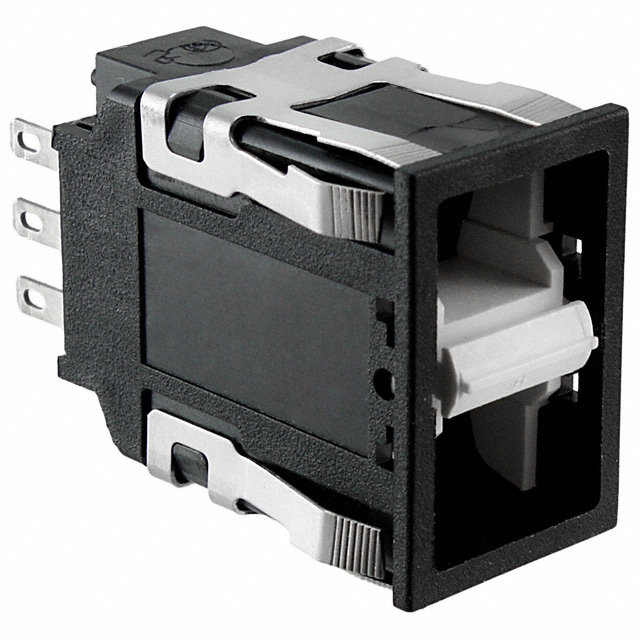

The AML24EBA2AC05 is an active DPDT rocker switch manufactured by Honeywell Sensing and Productivity Solutions. This panel-mount, snap-in switch is rated for 3A at 125V AC and 2A at 24V DC, with momentary-off-momentary (Mom-Off-Mom) switching function. The switch features a rectangular panel cutout (28.98mm x 19.05mm) and solder/quick-connect termination. With 25,000 mechanical and electrical cycles, this component is suitable for industrial control applications requiring reliable momentary switching. Finding equivalent or substitute parts becomes necessary when addressing supply chain constraints, lead time requirements, or specific application compatibility needs while maintaining functional equivalence.

Substiute Parts

AML24EBA2AC05

Honeywell Sensing and Productivity SolutionsIn Stock: 1206AML24EBA2AC05 Datasheet

Current PartRFQ

TRD21S10WL

TE Connectivity ALCOSWITCH SwitchesIn Stock: 881TRD21S10WL Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the AML24EBA2AC05 is determined by strict alignment of the following electrical and mechanical parameters:

Critical Substitution Criteria:

• Circuit configuration must be DPDT
• Switch function must be Mom-Off-Mom
• Voltage ratings must meet or exceed application requirements (125V AC minimum for primary applications)
• Current ratings must support the load (3A AC / 2A DC minimum)
• Mounting type and panel cutout dimensions must be compatible with existing panel installations
• Termination style must be compatible with existing wiring harnesses

Substitution Limitations: The identified substitute part TRD21S10WL operates at significantly lower voltage (20V AC/DC) and current (0.4VA) ratings compared to the AML24EBA2AC05. This substitute is not electrically equivalent for applications requiring 125V AC operation. The TRD21S10WL features different mounting geometry (circular 11.90mm diameter vs. rectangular 28.98mm x 19.05mm), different termination (solder lug vs. quick connect), and different mechanical life specifications (50,000 cycles vs. 25,000 cycles). These differences indicate the TRD21S10WL is suitable only for low-voltage applications and cannot serve as a direct substitute for standard 125V AC rocker switch applications.

Parameter Comparison

Engineering Selection Recommendations

AML24EBA2AC05 Selection Criteria: The AML24EBA2AC05 remains the appropriate choice for applications requiring 125V AC operation at 3A current capacity. This part is actively manufactured, ROHS3 compliant, and carries multiple regulatory approvals (CSA, CE, UL, VDE). The snap-in panel mount with rectangular cutout is standard for industrial control panels. Use this part for standard 125V AC momentary switching applications.

TRD21S10WL Evaluation: The TRD21S10WL is not suitable as a substitute for the AML24EBA2AC05 in standard industrial applications. The 20V maximum voltage rating is incompatible with 125V AC systems. The 0.4VA current rating is insufficient for 3A AC loads. The threaded body mounting and circular panel cutout require different panel preparation than the snap-in rectangular design. The solder lug termination is incompatible with quick-connect harnesses. This part is appropriate only for low-voltage control circuits (20V or below) where panel geometry and termination compatibility can be accommodated.

Compliance Considerations: The AML24EBA2AC05 carries active regulatory approvals from CSA, CE, UL, and VDE, making it suitable for regulated industrial environments. The TRD21S10WL shows undefined REACH status and no listed approval agencies, limiting its use in applications requiring specific regulatory compliance.

Frequently Asked Questions (FAQ)

Q: Can the TRD21S10WL replace the AML24EBA2AC05 in my 125V AC application?

A: No. The TRD21S10WL is rated for maximum 20V AC/DC operation, while the AML24EBA2AC05 is rated for 125V AC. Using the TRD21S10WL in a 125V AC circuit will result in component failure and potential safety hazards.

Q: What are the key differences between these two switches?

A: The AML24EBA2AC05 and TRD21S10WL differ in voltage rating (125V vs. 20V), current capacity (3A AC vs. 0.4VA), mounting method (snap-in vs. threaded), panel cutout geometry (rectangular vs. circular), and termination style (quick connect vs. solder lug). These are not interchangeable parts.

Q: Are both switches DPDT Mom-Off-Mom?

A: Yes, both switches share the same circuit configuration (DPDT) and switching function (Mom-Off-Mom). However, this functional similarity does not make them substitutes due to significant differences in electrical ratings and mechanical compatibility.

Q: Which switch has better mechanical durability?

A: The TRD21S10WL specifies 50,000 mechanical cycles compared to 25,000 cycles for the AML24EBA2AC05. However, durability specifications are irrelevant if the electrical ratings are incompatible with the application.

Q: Can I modify the panel cutout to fit the TRD21S10WL?

A: Panel modification to accommodate the TRD21S10WL's circular 11.90mm diameter cutout is not recommended as a substitution strategy. The fundamental electrical incompatibility (20V maximum vs. 125V requirement) makes this part unsuitable regardless of mechanical adaptation.

Q: What termination compatibility should I verify?

A: The AML24EBA2AC05 uses solder and quick-connect 0.110" (2.8mm) termination, while the TRD21S10WL uses solder lug termination. Existing harnesses designed for quick-connect terminals are not compatible with solder lug connections without rewiring.

Q: Are there regulatory compliance differences?

A: The AML24EBA2AC05 carries CSA, CE, UL, and VDE approvals and is ROHS3 compliant. The TRD21S10WL shows no listed approval agencies and undefined REACH status. For regulated applications, the AML24EBA2AC05 is the appropriate choice.
