Equivalent & Substitute Parts for AML12CBF2EE

Part Overview

The AML12CBF2EE is a pushbutton Hall Effect switch manufactured by Honeywell Sensing and Productivity Solutions, designed for panel mount, snap-in applications with a 0.4V output specification. This component operates within a 4.5 to 24VDC supply voltage range and draws 14mA supply current. The part is classified as obsolete, necessitating identification of functionally compatible alternatives for ongoing system support and new designs.

Substiute Parts

AML12CBF2EE

Honeywell Sensing and Productivity SolutionsIn Stock: 1078AML12CBF2EE Datasheet

Current PartRFQ

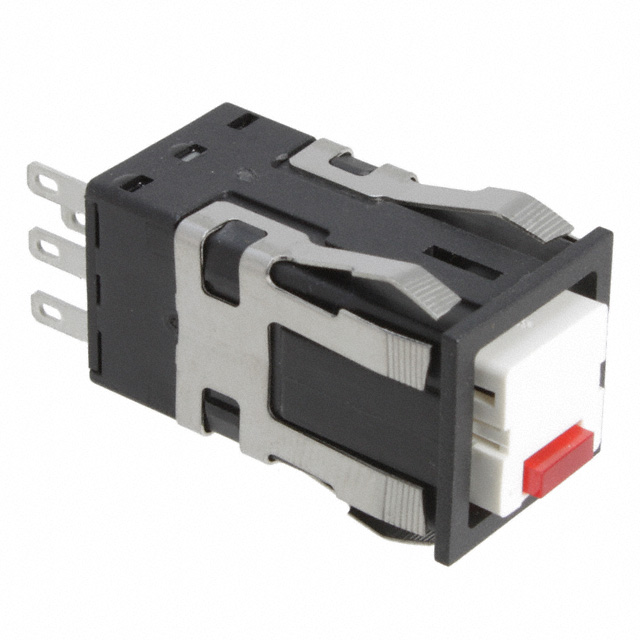

AML22CBF2AB

Honeywell Sensing and Productivity SolutionsIn Stock: 994AML22CBF2AB Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The AML22CBF2AB is identified as a direct substitute for the AML12CBF2EE based on the following alignment of critical parameters:

Shared Mechanical & Electrical Characteristics:

• Mounting Type: Panel Mount, Snap-In
• Actuator Type: Square, Button (Not Included)
• Termination Style: Solder, Quick Connect - 0.110" (2.8mm)
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
• Manufacturer: Honeywell Sensing and Productivity Solutions

Substitution Basis: The AML22CBF2AB maintains identical mechanical interface specifications (panel cutout dimensions, snap-in mounting, quick-connect termination) and environmental ratings. Both components are designed for the same physical installation envelope and connector compatibility. The AML22 series represents the active product line continuation within Honeywell's pushbutton switch portfolio, providing functional equivalence for panel-mount applications requiring Hall Effect or standard switching operation.

Parameter Comparison

Engineering Selection Recommendations

Product Status Consideration: The AML12CBF2EE is classified as obsolete. The AML22CBF2AB is an active product within the Honeywell AML series, ensuring continued availability, manufacturing support, and supply chain stability for new designs and system maintenance.

Compliance Status: The AML22CBF2AB is RoHS Compliant, whereas the AML12CBF2EE is RoHS Non-Compliant. For applications subject to RoHS directives or customer compliance requirements, the AML22CBF2AB provides regulatory alignment.

Mechanical & Electrical Interface: Both components share identical mechanical mounting specifications (panel mount, snap-in configuration) and termination standards (0.110" quick-connect). This ensures direct physical and electrical interface compatibility within existing panel assemblies and wiring harnesses.

Functional Differences: The AML22CBF2AB operates as an SPDT (Single Pole Double Throw) switch with On-On function and higher current rating (2A DC), compared to the AML12CBF2EE single-circuit Off-On configuration. Applications requiring the specific Hall Effect output characteristics of the AML12CBF2EE must evaluate whether the AML22CBF2AB's standard switching operation meets functional requirements.

Frequently Asked Questions (FAQ)

Q: Can the AML22CBF2AB be directly installed in place of the AML12CBF2EE?

A: The AML22CBF2AB shares identical mechanical mounting (panel mount, snap-in) and termination specifications (0.110" quick-connect). Physical installation compatibility is confirmed. However, functional compatibility depends on whether the application requires Hall Effect switching (AML12CBF2EE) or standard pushbutton switching (AML22CBF2AB).

Q: What are the key differences between these two parts?

A: The primary differences are: (1) Product Status – AML12CBF2EE is obsolete; AML22CBF2AB is active; (2) Circuit Type – AML12CBF2EE is single-circuit; AML22CBF2AB is SPDT; (3) Switch Function – AML12CBF2EE is Off-On; AML22CBF2AB is On-On; (4) Current Rating – AML12CBF2EE draws 14mA supply current; AML22CBF2AB handles 2A DC load current; (5) RoHS Compliance – AML12CBF2EE is non-compliant; AML22CBF2AB is compliant.

Q: Are the panel cutout dimensions identical?

A: The AML22CBF2AB specifies a square panel cutout of 19.05mm x 19.05mm. The AML12CBF2EE does not provide panel cutout dimensions in the available data. Verification of mechanical compatibility with existing panel assemblies is required before substitution.

Q: Does the AML22CBF2AB support the same voltage range as the AML12CBF2EE?

A: The AML12CBF2EE operates at 4.5 to 24VDC. The AML22CBF2AB is rated for 24VDC. Applications requiring operation below 24VDC must confirm compatibility with the AML22CBF2AB's minimum voltage specification.

Q: What is the mechanical life expectancy of the AML22CBF2AB?

A: The AML22CBF2AB is rated for 25,000 mechanical cycles and 25,000 electrical cycles. The AML12CBF2EE does not provide cycle life data in the available specifications.

Q: Is the AML22CBF2AB available in the same packaging as the AML12CBF2EE?

A: The AML22CBF2AB is supplied in Bulk packaging. The AML12CBF2EE packaging designation is listed as a dash (not specified). Confirm packaging requirements for your procurement and assembly processes.
