Equivalent & Substitute Parts for AML11EBA2EE

Part Overview

The AML11EBA2EE is a pushbutton Hall Effect switch manufactured by Honeywell Sensing and Productivity Solutions, designed for panel mount, snap-in applications with a 0.4 V output specification. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing system maintenance and new design implementations. The Hall Effect switching technology provides contactless operation within the specified supply voltage range of 4.5 to 24 VDC.

Substiute Parts

AML11EBA2EE

Honeywell Sensing and Productivity SolutionsIn Stock: 846AML11EBA2EE Datasheet

Current PartRFQ

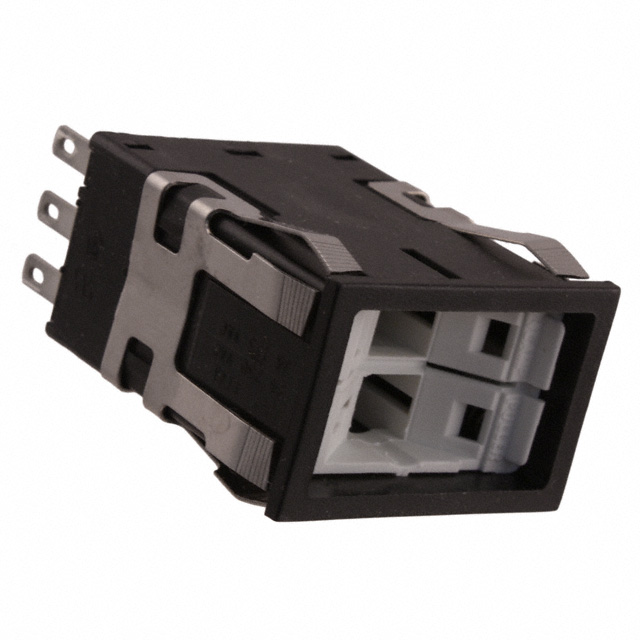

AML21EBA2AB

Honeywell Sensing and Productivity SolutionsIn Stock: 1165AML21EBA2AB Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete AML11EBA2EE is based on the following critical parameters that must align between the main part and substitute candidates:

Mechanical Compatibility:

• Mounting type: Panel Mount, Snap-In
• Actuator type: Rectangular, Button (Not Included)
• Termination style: Solder, Quick Connect – 0.110" (2.8 mm)

Electrical Compatibility:

• Supply voltage range: 4.5 – 24 VDC
• Circuit configuration capability
• Output voltage specification: 0.4 V maximum

Regulatory & Environmental:

• RoHS Compliance
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
• ECCN classification: EAR99

The substitute part AML21EBA2AB shares the same manufacturer (Honeywell Sensing and Productivity Solutions), identical mounting configuration (Panel Mount, Snap-In), matching termination style (Solder, Quick Connect – 0.110" / 2.8 mm), and equivalent regulatory compliance (RoHS Compliant, MSL 1). However, the AML21EBA2AB operates as an SPDT circuit with On-On function, differing from the AML11EBA2EE's single-circuit Off-On configuration.

Parameter Comparison

Engineering Selection Recommendations

Product Status Consideration: The AML11EBA2EE is classified as obsolete. The AML21EBA2AB is an active product from the same manufacturer, ensuring continued availability and supply chain reliability for future procurement and system support.

Compliance & Certification: Both parts maintain RoHS Compliance and MSL 1 (Unlimited) ratings, satisfying environmental and moisture sensitivity requirements. Both are classified under ECCN EAR99, maintaining equivalent export control status.

Mechanical & Electrical Interface: Both parts share identical mounting configuration (Panel Mount, Snap-In) and termination style (Solder, Quick Connect – 0.110" / 2.8 mm), enabling direct physical replacement without panel redesign or connector modification.

Circuit & Functional Differences: The AML21EBA2AB operates as an SPDT (Single Pole Double Throw) switch with On-On function, whereas the AML11EBA2EE is a single-circuit Off-On switch. Applications requiring single-circuit Off-On switching must evaluate whether the SPDT configuration can be adapted through circuit design or whether alternative single-circuit substitutes should be considered.

Current & Voltage Ratings: The AML21EBA2AB supports higher current ratings (2 A DC / 3 A AC) and AC voltage operation (125 V AC), providing expanded application capability beyond the AML11EBA2EE's 14 mA supply current specification.

Frequently Asked Questions (FAQ)

Q: Can the AML21EBA2AB directly replace the AML11EBA2EE in all applications?

A: Direct mechanical replacement is possible due to identical mounting type (Panel Mount, Snap-In) and termination style (Solder, Quick Connect – 0.110" / 2.8 mm). However, functional compatibility depends on circuit requirements. The AML21EBA2AB is an SPDT On-On switch, while the AML11EBA2EE is a single-circuit Off-On switch. Applications must confirm that the SPDT configuration and On-On function are compatible with the intended circuit design.

Q: What are the key mechanical compatibility factors?

A: Mechanical compatibility is ensured through matching parameters: Panel Mount, Snap-In mounting type, Rectangular Button actuator (Not Included), and Solder/Quick Connect – 0.110" (2.8 mm) termination. Panel cutout dimensions for the AML21EBA2AB are Rectangular – 28.98 mm × 19.05 mm.

Q: Are both parts RoHS compliant?

A: Yes. Both the AML11EBA2EE and AML21EBA2AB are RoHS Compliant with MSL 1 (Unlimited) moisture sensitivity ratings, meeting equivalent environmental and regulatory standards.

Q: What is the primary advantage of selecting the AML21EBA2AB?

A: The AML21EBA2AB is an active product with confirmed ongoing availability, whereas the AML11EBA2EE is obsolete. This ensures supply chain continuity and long-term component availability for system maintenance and future production runs.

Q: How do the electrical specifications differ?

A: The AML11EBA2EE operates at 4.5 – 24 VDC with 14 mA supply current and 0.4 V maximum output. The AML21EBA2AB supports 24 V DC and 125 V AC operation with significantly higher current ratings (2 A DC / 3 A AC), making it suitable for higher-power switching applications.

Q: Are there any packaging differences?

A: The AML21EBA2AB is supplied in Bulk packaging. Both parts share identical termination and mounting configurations, so packaging format does not affect mechanical or electrical compatibility.
