Part Overview

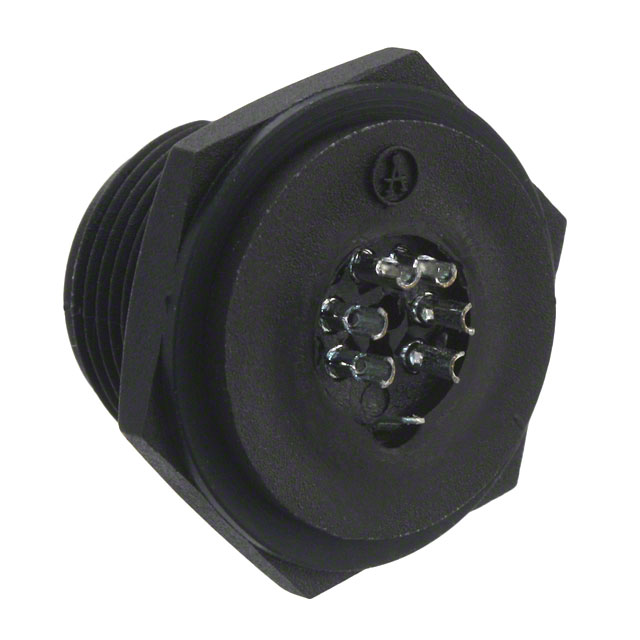

The A-MD-06PMFS-WP-R is a 6-position circular connector plug with female sockets, manufactured by Assmann WSW Components. This Mini DIN connector features solder cup termination and panel mount installation with bulkhead front-side nut fastening. The product is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing system maintenance and new design implementations.

Substiute Parts

A-MD-06PMFS-WP-R

Assmann WSW ComponentsIn Stock: 1174A-MD-06PMFS-WP-R Datasheet

Current PartRFQ

MD-60CV

CUI DevicesIn Stock: 4173MD-60CV Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the A-MD-06PMFS-WP-R is determined by the following critical parameters:

• 6-position Mini DIN connector configuration
• Female socket contact arrangement
• Panel mount installation with bulkhead fastening
• Solder termination method
• Keyed orientation for polarization
• IP67 ingress protection rating
• Compatibility with automotive and telecommunications applications

The substitute part MD-60CV meets these core functional requirements. Both connectors share the same shell size (Mini DIN), position count (6), contact type (female sockets), mounting configuration (panel mount bulkhead), and termination method (solder). The keyed orientation ensures proper mating alignment in both designs.

Parameter Comparison

Engineering Selection Recommendations

The MD-60CV serves as a functional substitute for the obsolete A-MD-06PMFS-WP-R based on the following criteria:

Both connectors maintain identical Mini DIN 6-position configurations with female socket contacts and keyed orientation. The shared panel mount bulkhead installation and solder termination method ensure mechanical and electrical compatibility in existing applications.

The MD-60CV is currently in active production status, providing supply chain continuity for systems requiring Mini DIN 6-position connectors. The substitute part carries ROHS3 compliance certification, meeting modern regulatory requirements. Both parts maintain REACH Unaffected status and EAR99 export classification.

The MD-60CV's documented electrical specifications (1A/2A current rating, 100VAC/12VDC voltage rating) and operating temperature range (-40°C ~ 85°C) support automotive and telecommunications applications. The UL94 V-0 flammability rating and PBT shell material provide enhanced environmental performance characteristics.

Frequently Asked Questions (FAQ)

Q: What is the primary difference between the A-MD-06PMFS-WP-R and MD-60CV?

A: The A-MD-06PMFS-WP-R is a plug connector with threaded fastening, while the MD-60CV is a receptacle connector with push-pull fastening. Both maintain the same 6-position Mini DIN configuration, female socket contacts, and solder termination method required for functional equivalence.

Q: Are these connectors mechanically compatible?

A: Both connectors feature identical Mini DIN shell sizing, keyed orientation, and bulkhead panel mount installation. The shared mechanical interface ensures proper mating alignment and installation compatibility in panel-mounted applications.

Q: What compliance certifications apply to the substitute part?

A: The MD-60CV carries ROHS3 compliance certification and maintains REACH Unaffected status. Both the main part and substitute share EAR99 export classification and MSL 1 (Unlimited) moisture sensitivity rating.

Q: Is the MD-60CV suitable for automotive and telecommunications applications?

A: The MD-60CV's operating temperature range (-40°C ~ 85°C), UL94 V-0 flammability rating, and documented electrical specifications (1A/2A current, 100VAC/12VDC voltage) support both automotive and telecommunications system requirements.

Q: What is the packaging format for the substitute part?

A: The MD-60CV is supplied in tray packaging format, suitable for automated assembly and component handling processes.
