AMCB9624 Equivalent & Substitute Parts

Part Overview

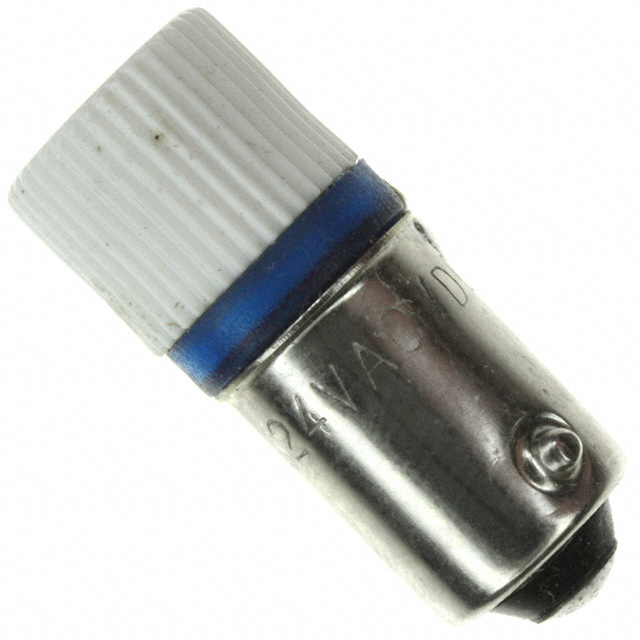

The AMCB9624 is a configurable switch lamp with blue LED indicator, rated for 24V operation, manufactured by Sensata-Airpax in a 22.5mm plastic series format. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for system maintenance and component procurement.

The primary function of this configurable switch lamp is to provide visual indication through blue LED illumination in 24V electrical systems. Due to its obsolete status, direct replacement with active production equivalents is necessary for ongoing supply chain management and system support.

Substiute Parts

AMCB9624

Sensata-AirpaxIn Stock: 1040AMCB9624 Datasheet

Current PartRFQ

BA9SB24A

APEM Inc.In Stock: 1057BA9SB24A Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AMCB9624 is determined by the following critical parameters:

• Voltage Rating: 24V operation is mandatory for direct electrical compatibility
• LED Color: Blue wavelength specification must be maintained for visual indication consistency
• Type Classification: LED lamp replacement functionality
• Base Type: Miniature Bayonet (BA9S) mounting interface for mechanical compatibility
• Regulatory Compliance: ECCN and HTSUS classification alignment

The substitute part BA9SB24A meets all substitution criteria through equivalent voltage rating, matching blue LED color specification, identical base type (BA9S), and aligned regulatory classification (ECCN EAR99, HTSUS 8541.41.0000).

Parameter Comparison

Engineering Selection Recommendations

The BA9SB24A from APEM Inc. is the designated manufacturer-recommended substitute for the obsolete AMCB9624. This substitution is supported by:

• Electrical Equivalence: Identical 24V voltage rating and blue LED color specification
• Mechanical Compatibility: Matching Miniature Bayonet (BA9S) base type ensures direct physical replacement
• Active Production Status: BA9SB24A maintains active product status, ensuring ongoing availability and supply chain continuity
• Regulatory Alignment: Both components share identical ECCN (EAR99) and HTSUS (8541.41.0000) classifications
• Environmental Compliance: BA9SB24A carries ROHS3 compliance and REACH unaffected status, meeting current regulatory requirements
• Moisture Sensitivity: Both components maintain MSL 1 (Unlimited) rating, indicating equivalent environmental performance

Frequently Asked Questions (FAQ)

Q: Can BA9SB24A directly replace AMCB9624 in existing installations?

A: Yes. Both components share identical voltage rating (24V), LED color (blue), and base type (BA9S). The physical dimensions of BA9SB24A (10.00mm x 24.00mm) are compatible with standard BA9S mounting interfaces.

Q: What is the primary reason for substitution?

A: AMCB9624 is classified as obsolete. BA9SB24A is an active production component from a qualified manufacturer, ensuring reliable procurement and supply continuity.

Q: Are there compliance differences between the two parts?

A: Both components share identical ECCN (EAR99) and HTSUS (8541.41.0000) classifications. BA9SB24A additionally carries ROHS3 compliance and REACH unaffected status, meeting current environmental and regulatory standards.

Q: What is the millicandela rating of BA9SB24A?

A: BA9SB24A is rated at 490mcd, providing the specified luminous intensity for blue LED indication in 24V applications.

Q: Are packaging considerations relevant to substitution?

A: BA9SB24A is supplied in bag packaging. Verify packaging requirements for your procurement and assembly processes, as this may differ from original component packaging specifications.
