AMCB9324 Equivalent & Substitute Parts

Part Overview

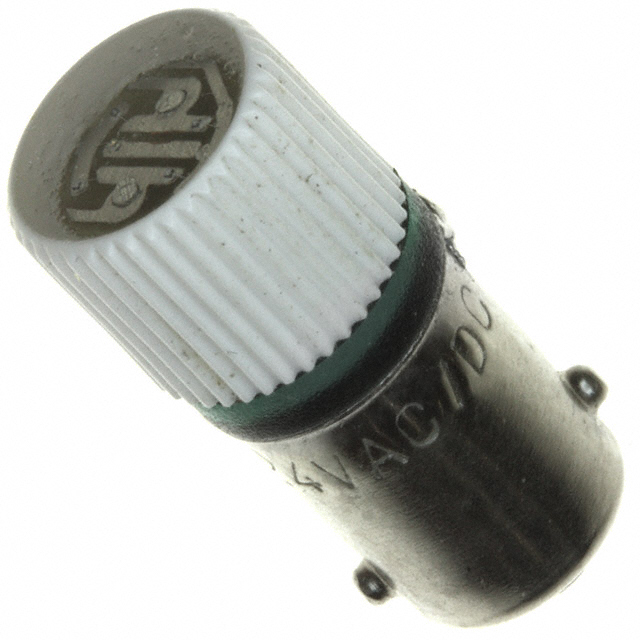

The AMCB9324 is a configurable switch lamp with an integrated green LED rated for 24V operation, manufactured by Sensata-Airpax in a 22.5mm plastic housing. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for system maintenance and component procurement.

The obsolete status of the AMCB9324 necessitates sourcing substitute components that maintain electrical and mechanical compatibility with existing installations. Substitute parts must match the specified voltage rating, LED color, and physical form factor to ensure direct replacement capability.

Substiute Parts

AMCB9324

Sensata-AirpaxIn Stock: 667AMCB9324 Datasheet

Current PartRFQ

BA9SG24A

APEM Inc.In Stock: 1037BA9SG24A Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the AMCB9324 are identified based on the following critical parameters that determine functional equivalence:

• Voltage Rating: 24V operation
• LED Color: Green
• Base Type / Form Factor: Miniature Bayonet (BA9S) configuration
• Moisture Sensitivity Level: MSL 1 (Unlimited)
• Regulatory Compliance: EAR99 classification and ROHS3 compliance

The BA9SG24A from APEM Inc. qualifies as a substitute because it maintains the same voltage specification, LED color, and operates within the same moisture sensitivity classification. The BA9S base type provides mechanical compatibility for direct lamp replacement in bayonet-mount fixtures.

Parameter Comparison

Engineering Selection Recommendations

The BA9SG24A is an active product with current manufacturing support and ROHS3 compliance, providing supply chain continuity for applications requiring green 24V LED lamp functionality. Both the AMCB9324 and BA9SG24A share identical voltage ratings, LED color specifications, and regulatory classifications (EAR99, HTSUS 8541.41.0000), establishing electrical equivalence.

The BA9SG24A's MSL 1 rating matches the original component, confirming suitability for applications with unlimited moisture exposure tolerance. The active product status of the BA9SG24A ensures availability for new procurement and replacement scenarios where the obsolete AMCB9324 cannot be sourced.

Frequently Asked Questions (FAQ)

Q: What makes BA9SG24A a valid substitute for AMCB9324?

A: Both components operate at 24V with green LED output and share identical MSL 1 ratings and regulatory classifications. The BA9SG24A's active status and ROHS3 compliance provide modern manufacturing standards while maintaining electrical compatibility.

Q: Are there mechanical compatibility considerations between these parts?

A: The AMCB9324 uses a 22.5mm plastic configurable switch form factor, while the BA9SG24A employs a Miniature Bayonet (BA9S) base. Physical mounting compatibility depends on the fixture design. The BA9SG24A dimensions are 0.394" diameter by 0.945" height (10.00mm x 24.00mm).

Q: Does the BA9SG24A meet the same regulatory requirements?

A: Yes. Both parts share EAR99 ECCN classification and HTSUS code 8541.41.0000. The BA9SG24A additionally carries ROHS3 compliance and REACH Unaffected status, meeting current environmental regulations.

Q: What is the brightness difference between these components?

A: The BA9SG24A is rated at 1610mcd. The original AMCB9324 millicandela rating is not specified in available documentation.

Q: Can I use BA9SG24A in any application that previously used AMCB9324?

A: Electrical compatibility is established through matching voltage, color, and regulatory specifications. Physical installation compatibility requires verification of the mounting interface and form factor requirements of your specific fixture.
