AMCB9124 Equivalent & Substitute Parts

Part Overview

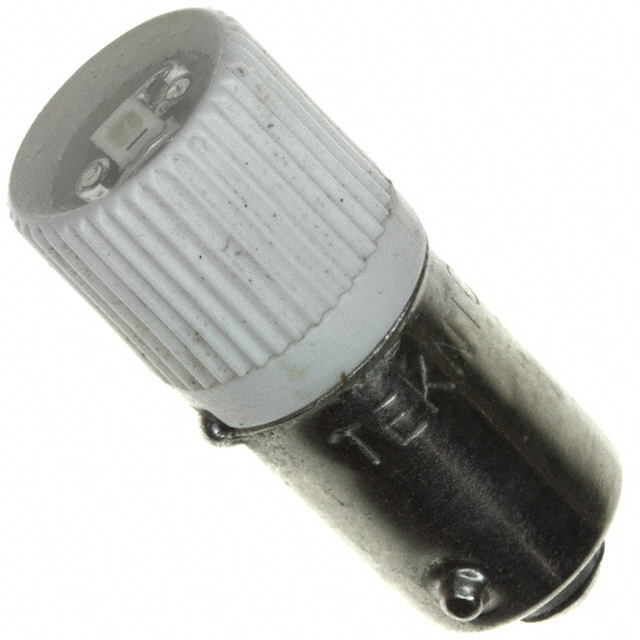

The AMCB9124 is a configurable switch lamp with white LED illumination rated for 24V operation, manufactured by Sensata-Airpax in a 22.5mm plastic housing. This component is classified as obsolete, making identification of suitable substitute parts essential for system maintenance and component sourcing. The configurable nature of this switch component allows for flexibility in replacement strategies when the original part is no longer available through standard distribution channels.

Substiute Parts

AMCB9124

Sensata-AirpaxIn Stock: 703AMCB9124 Datasheet

Current PartRFQ

BA9SW24A

APEM Inc.In Stock: 779BA9SW24A Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the AMCB9124 is determined by the following critical parameters:

• Voltage Rating: 24V operation is mandatory for direct electrical compatibility
• LED Type and Color: White LED specification must be maintained for optical consistency
• Base Type and Mechanical Interface: The substitute must accommodate the existing mechanical mounting structure
• Moisture Sensitivity Level: MSL 1 rating ensures compatibility with standard storage and handling conditions
• Regulatory Compliance: ECCN EAR99 and HTSUS 8541.41.0000 classification must be maintained

The BA9SW24A from APEM Inc. qualifies as a substitute based on matching voltage rating (24V), LED color (white), and regulatory classification. The BA9S miniature bayonet base provides a standardized mechanical interface suitable for lamp replacement applications.

Parameter Comparison

Engineering Selection Recommendations

The BA9SW24A is the manufacturer-recommended substitute for the AMCB9124. Selection of this substitute is supported by:

• Active Product Status: The BA9SW24A maintains active production status, ensuring ongoing availability and supply chain reliability
• Regulatory Alignment: Both parts share identical ECCN (EAR99) and HTSUS (8541.41.0000) classifications, eliminating regulatory compliance concerns
• Environmental Compliance: The BA9SW24A carries ROHS3 compliance and REACH unaffected status, meeting current environmental standards
• Electrical Compatibility: Matching 24V voltage rating and white LED specification ensure direct functional equivalence
• Standardized Interface: The BA9S miniature bayonet base is an industry-standard interface for lamp replacement applications

Frequently Asked Questions (FAQ)

Q: Why is the AMCB9124 classified as obsolete? A: The AMCB9124 has reached end-of-life status with the manufacturer. Substitute parts must be identified for ongoing system support and component replacement.

Q: What are the critical parameters for substitution? A: Voltage rating (24V), LED color (white), base type compatibility, and regulatory classification (ECCN EAR99, HTSUS 8541.41.0000) are the determining factors for valid substitution.

Q: Is the BA9SW24A mechanically compatible with the AMCB9124 mounting location? A: The BA9S miniature bayonet base is a standardized interface. Mechanical compatibility depends on the specific mounting socket design in your application. Verify that your system uses a BA9S-compatible socket before implementation.

Q: What is the brightness difference between the original and substitute? A: The BA9SW24A is rated at 2070mcd. The original AMCB9124 millicandela rating is not specified in available documentation. Brightness compatibility should be evaluated based on your application requirements.

Q: Are there any compliance concerns with using the BA9SW24A? A: No. The BA9SW24A maintains ROHS3 compliance and REACH unaffected status, meeting current environmental and regulatory requirements. Both parts share identical ECCN and HTSUS classifications.

Q: What is the moisture sensitivity level, and does it affect storage? A: Both parts carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity restrictions. Standard storage conditions are appropriate for both components.
