AM50013C53-A Equivalent & Substitute Parts

Part Overview

The AM50013C53-A is a snap-action SPDT switch manufactured by Panasonic Electric Works, designed for chassis mount applications with 0.1A at 125V AC rating. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing maintenance, repair, and new design implementations. The switch features a straight lever actuator with quick connect termination and operates across a temperature range of -25°C to 105°C with 100,000 electrical cycles and 10,000,000 mechanical cycles.

Key Parameters

Parameter	AM50013C53-A
Manufacturer	Panasonic Electric Works
Circuit Configuration	SPDT
Switch Function	On-Momentary
Current Rating (AC)	100mA
Current Rating (DC)	100mA
Voltage Rating (AC)	125V
Voltage Rating (DC)	30V
Actuator Type	Lever, Straight
Mounting Type	Chassis Mount
Termination Style	Quick Connect - 0.187" (4.7mm)
Operating Temperature	-25°C to 105°C
Electrical Life	100,000 Cycles
Mechanical Life	10,000,000 Cycles
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution eligibility for the AM50013C53-A is determined by the following critical parameters:

Circuit Configuration: Must be SPDT (Single Pole Double Throw)
Switch Function: Must be On-Momentary
Mounting Type: Must be Chassis Mount
Actuator Type: Must be Lever, Straight
Termination Style: Quick Connect 0.187" (4.7mm) preferred; 0.250" (6.3mm) acceptable with mechanical verification
Voltage Rating (AC): Minimum 125V AC
Current Rating (AC): Minimum 100mA
Operating Temperature Range: Must encompass or exceed -25°C to 105°C
Electrical Life: Minimum 50,000 cycles

Substitute parts are grouped into two categories: direct replacements with identical termination and enhanced-performance alternatives with higher current ratings or voltage specifications that maintain mechanical and electrical compatibility.

Parameter Comparison

Part Number	Manufacturer	Current (AC)	Voltage (AC)	Termination	Operating Temp	Electrical Life	Product Status
AM50013C53-A	Panasonic Electric Works	100mA	125V	0.187" (4.7mm)	-25°C to 105°C	100,000	Obsolete
D413-R1LA-G2	ZF Electronics	100mA	250V	0.187" (4.7mm)	-40°C to 85°C	50,000	Active
V7-1B17D8-048	Honeywell Sensing and Productivity Solutions	11A	125V	0.187" (4.7mm)	-40°C to 85°C	100,000	Active
V7-2B17D8-048	Honeywell Sensing and Productivity Solutions	11A	125V	0.187" (4.7mm)	-40°C to 85°C	100,000	Active
LS0851503F040C1A	E-Switch	15A	125V	0.187" (4.7mm)	-25°C to 85°C	50,000	Active
LS0851503F060C1A	E-Switch	15A	125V	0.187" (4.7mm)	-25°C to 85°C	50,000	Active
V15H22-CZ100A03-K	Honeywell Sensing and Productivity Solutions	22A	250V	0.250" (6.3mm)	-25°C to 150°C	10,000	Obsolete
V15T16-CZ100A03-K	Honeywell Sensing and Productivity Solutions	16A	250V	0.250" (6.3mm)	-25°C to 125°C	50,000	Active
V15T16-CZ300A03-K	Honeywell Sensing and Productivity Solutions	16A	250V	0.250" (6.3mm)	-25°C to 125°C	50,000	Active

Engineering Selection Recommendations

Direct Substitutes (Identical Termination - 0.187" / 4.7mm)

The following parts maintain identical quick connect termination and are suitable for direct replacement in existing designs:

D413-R1LA-G2 (ZF Electronics): Active product with equivalent current rating and higher voltage specification (250V AC). Reduced electrical life (50,000 cycles) and narrower temperature range (-40°C to 85°C) compared to original.

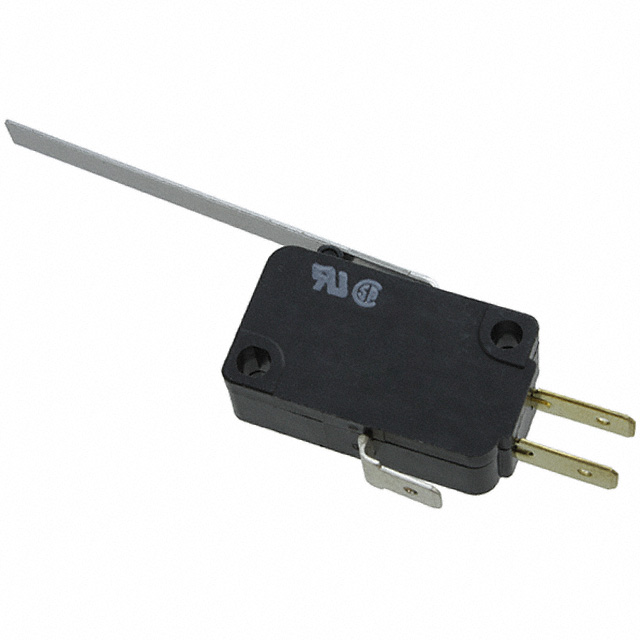

V7-1B17D8-048 and V7-2B17D8-048 (Honeywell): Active products with significantly higher current capacity (11A AC) and identical voltage rating (125V AC). Both maintain 100,000 electrical cycle rating. Operating temperature range -40°C to 85°C is narrower than original.
LS0851503F040C1A and LS0851503F060C1A (E-Switch): Active products with 15A AC current rating and 125V AC voltage rating. RoHS3 compliant. Electrical life rated at 50,000 cycles. Operating temperature -25°C to 85°C.

Enhanced Performance Alternatives (0.250" / 6.3mm Termination)

These parts require mechanical connector verification but offer higher current and voltage ratings:

V15T16-CZ100A03-K and V15T16-CZ300A03-K (Honeywell): Active products with 16A AC rating and 250V AC voltage. RoHS compliant. Operating temperature -25°C to 125°C. Electrical life 50,000 cycles. Termination style differs (0.250" vs 0.187").

Selection Priority Based on Product Status

For new designs and long-term availability, prioritize active products: V7-1B17D8-048, V7-2B17D8-048, LS0851503F040C1A, LS0851503F060C1A, V15T16-CZ100A03-K, and V15T16-CZ300A03-K. These ensure ongoing supply and manufacturer support.

Frequently Asked Questions (FAQ)

Q: Can I use a substitute part with a different termination style (0.250" instead of 0.187")?

A: Termination style differences require mechanical connector verification. Parts with 0.250" (6.3mm) quick connect termination (V15 series) are electrically compatible but require different connector hardware. Evaluate your connector inventory and mechanical design constraints before selection.

Q: What is the difference between V7-1B17D8-048 and V7-2B17D8-048?

A: Both are 11A AC, 125V AC SPDT switches with identical electrical ratings and 100,000 cycle life. The primary difference is operating force: V7-1B17D8-048 requires 50gf with 4gf release force, while V7-2B17D8-048 requires 20gf with 1gf release force. Select based on your actuator force requirements.

Q: Why do some substitutes have lower electrical life ratings?

A: Electrical life varies by manufacturer design and application class. D413-R1LA-G2 and E-Switch LS series are rated for 50,000 cycles versus the original 100,000 cycles. For applications requiring extended cycle life, select V7 series alternatives with 100,000 cycle ratings.

Q: Are all substitute parts RoHS compliant?

A: RoHS compliance varies. E-Switch LS series parts are RoHS3 compliant. Honeywell V7 and V15 series are RoHS compliant. ZF Electronics D413-R1LA-G2 compliance status is not specified in available data. Verify RoHS requirements for your application before final selection.

Q: What is the temperature operating range difference between the original and substitutes?

A: The original AM50013C53-A operates -25°C to 105°C. Most substitutes operate -40°C to 85°C (V7 series) or -25°C to 85°C (E-Switch LS series), providing lower maximum temperature. V15T16 series extends to 125°C. For high-temperature applications, verify thermal requirements against substitute specifications.

Q: Can I use LS0851503F040C1A and LS0851503F060C1A interchangeably?

A: Both are 15A AC, 125V AC SPDT switches with identical electrical ratings. The difference is operating force: F040C1A requires 40gf with 15gf release force, while F060C1A requires 60gf with 25gf release force. Select based on your specific actuator force requirements.
