AM2520MGC09 Equivalent & Substitute Parts Reference

Part Overview

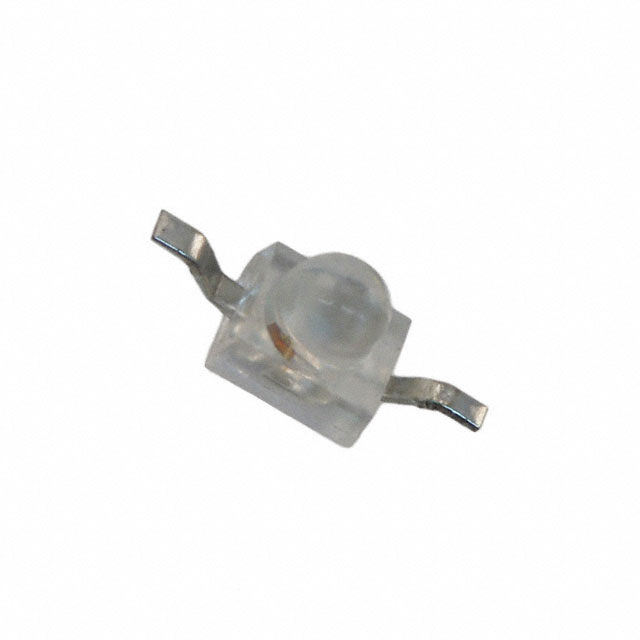

The AM2520MGC09 is an active green LED indication component manufactured by Kingbright, designed for surface mount applications. This 2-SMD Z-Bend configuration delivers 1000mcd luminous intensity at 2.1V forward voltage with a 570nm dominant wavelength and 20° viewing angle. The component is packaged in Tape & Reel format with ROHS3 compliance and MSL 3 rating.

Substitute parts are identified when equivalent electrical performance, mechanical compatibility, and regulatory compliance can be maintained across different manufacturers while accommodating application-specific requirements such as luminous intensity tolerance, forward voltage variation, and mounting configuration differences.

Substiute Parts

AM2520MGC09

KingbrightIn Stock: 1406AM2520MGC09 Datasheet

Current PartRFQ

SSL-LXA228SUGCTR31

Lumex Opto/Components Inc.In Stock: 54847SSL-LXA228SUGCTR31 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AM2520MGC09 is determined by the following critical parameters:

Mandatory Compatibility Criteria:

• Color: Green
• Wavelength - Peak: 574nm (within green spectrum)
• Package / Case: 2-SMD, Z-Bend configuration
• Lens Size: 1.90mm Dia
• Lens Style: Round with Domed Top
• Lens Transparency: Clear
• Size / Dimension: 2.50mm L x 2.00mm W
• Height (Max): 2.90mm
• Mounting Type: Surface Mount
• RoHS Status: ROHS3 Compliant

Allowable Variation Parameters:

• Millicandela Rating: Tolerance dependent on application requirements
• Voltage - Forward (Vf): Minor variations acceptable within circuit design margins
• Viewing Angle: Application-dependent tolerance
• Moisture Sensitivity Level (MSL): Higher MSL values (lower sensitivity) are acceptable
• Supplier Device Package designation: May differ while maintaining mechanical compatibility

The SSL-LXA228SUGCTR31 manufactured by Lumex Opto/Components Inc. qualifies as a substitute based on matching core mechanical specifications, wavelength characteristics, and regulatory compliance, with documented variations in luminous intensity and forward voltage within acceptable engineering tolerances.

Parameter Comparison

Engineering Selection Recommendations

AM2520MGC09 Selection Criteria:

• Primary application requirement: 1000mcd luminous intensity
• Forward voltage specification: 2.1V nominal
• Viewing angle requirement: 20° narrow beam
• Moisture sensitivity tolerance: MSL 3 acceptable
• Product status: Active with established supply chain

SSL-LXA228SUGCTR31 Selection Criteria:

• Application requirement: 200mcd luminous intensity (lower brightness)
• Forward voltage specification: 2.2V nominal (0.1V higher)
• Viewing angle requirement: 25° wider beam
• Moisture sensitivity tolerance: MSL 4 (lower sensitivity, more robust)
• Product status: Active with higher inventory availability (54742 Pcs vs 1355 Pcs)

Both components maintain ROHS3 compliance, REACH unaffected status, and identical EAR99 export classification. Mechanical compatibility is confirmed through matching package dimensions, lens specifications, and surface mount configuration. Selection between these parts depends on specific luminous intensity requirements and forward voltage circuit design parameters.

Frequently Asked Questions (FAQ)

Q: Can SSL-LXA228SUGCTR31 directly replace AM2520MGC09 in all applications?

A: Direct replacement is possible only when the application circuit accommodates the 200mcd luminous intensity (versus 1000mcd) and 2.2V forward voltage (versus 2.1V). Mechanical compatibility is confirmed through identical package dimensions and lens specifications.

Q: What is the significance of the 800mcd luminous intensity difference?

A: The AM2520MGC09 delivers 5 times higher brightness. Applications requiring specific brightness levels must account for this difference. The SSL-LXA228SUGCTR31 is suitable for applications where lower brightness is acceptable or preferred.

Q: How does the 0.1V forward voltage difference affect circuit design?

A: The SSL-LXA228SUGCTR31 requires 0.1V additional forward voltage. Current-limiting resistor values may require adjustment to maintain 20mA test current. Verify circuit design margins accommodate this variation.

Q: What does the MSL rating difference indicate?

A: AM2520MGC09 has MSL 3 (168 hours moisture exposure tolerance); SSL-LXA228SUGCTR31 has MSL 4 (72 hours). MSL 4 indicates greater moisture sensitivity and requires stricter handling and storage conditions. Both are suitable for standard manufacturing environments with appropriate moisture control.

Q: Are the viewing angles interchangeable?

A: The AM2520MGC09 provides 20° viewing angle; SSL-LXA228SUGCTR31 provides 25°. The wider 25° angle of the substitute may affect application-specific visibility requirements. Verify viewing angle specifications match application needs.

Q: Do both parts meet the same regulatory requirements?

A: Yes. Both components are ROHS3 compliant, REACH unaffected, classified as EAR99, and share identical HTSUS code 8541.41.0000. Regulatory compliance is equivalent.

Q: What is the difference between standard surface mount and bottom entry mounting?

A: Both are surface mount configurations. Bottom entry designation indicates lead orientation. Mechanical footprint and PCB placement compatibility remain identical at 2.50mm L x 2.00mm W with 2.90mm maximum height.

Q: Which part should be selected for new designs?

A: Selection depends on luminous intensity requirement. For 1000mcd requirement, use AM2520MGC09. For 200mcd requirement or when higher inventory availability is advantageous, use SSL-LXA228SUGCTR31. Both are active products with confirmed supply availability.
