ALFT-04-7 Common Mode Choke Equivalent & Substitute Parts

Part Overview

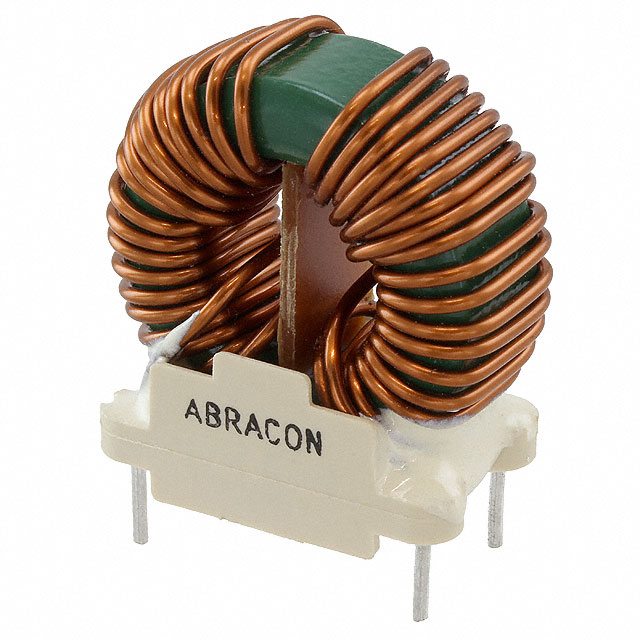

The ALFT-04-7 is a 4.5 mH 2-line common mode choke manufactured by Abracon LLC, designed for signal line filtering applications in through-hole configurations. This component operates at a maximum current rating of 3.7A with a DC resistance of 20mOhm and is rated for operating temperatures between -25°C and 85°C. The part maintains Active product status and is ROHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical parameters align within the allowed specifications for this product category.

Substiute Parts

ALFT-04-7

Abracon LLCIn Stock: 904ALFT-04-7 Datasheet

Current PartRFQ

ALFT-04-6

Abracon LLCIn Stock: 1001ALFT-04-6 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the ALFT-04-7 are identified based on strict alignment of the following critical parameters:

• Series membership (ALFT-04 family)
• Filter type (Signal Line)
• Number of lines (2-line configuration)
• Mounting type (Through Hole)
• Package configuration (Vertical, 4 PC Pin)
• Physical dimensions (34.00mm L x 18.00mm W x 31.80mm H)
• Operating temperature range (-25°C ~ 85°C)
• RoHS compliance status (ROHS3 Compliant)
• Product status (Active)

The ALFT-04-6 qualifies as a parametric equivalent within this product category. While inductance and DC resistance values differ from the main part, both components share identical mechanical, thermal, and compliance specifications, allowing substitution based on circuit requirements that accommodate the specified inductance and resistance parameters.

Parameter Comparison

Engineering Selection Recommendations

Both the ALFT-04-7 and ALFT-04-6 maintain Active product status and are ROHS3 compliant, ensuring long-term availability and regulatory compliance for new designs. Selection between these parts depends on circuit-specific inductance and DC resistance requirements. The ALFT-04-7 provides 4.5 mH inductance with 20mOhm DCR, while the ALFT-04-6 provides 3 mH inductance with 16mOhm DCR. Both components share identical mechanical footprints, thermal ratings, and package configurations, enabling direct substitution when electrical parameters align with design specifications.

Frequently Asked Questions (FAQ)

Q: Can ALFT-04-6 be used as a direct replacement for ALFT-04-7?

A: Direct substitution is possible only when circuit design accommodates the lower inductance value (3 mH versus 4.5 mH) and lower DC resistance (16mOhm versus 20mOhm) of the ALFT-04-6. Both components share identical mechanical and thermal specifications.

Q: Are the physical dimensions identical between ALFT-04-7 and ALFT-04-6?

A: Yes. Both parts measure 34.00mm L x 18.00mm W with a maximum height of 31.80mm and use identical Vertical, 4 PC Pin package configurations, ensuring PCB layout compatibility.

Q: What is the operating temperature range for both parts?

A: Both ALFT-04-7 and ALFT-04-6 operate across -25°C to 85°C, providing identical thermal performance specifications.

Q: Are both parts RoHS compliant?

A: Yes. Both ALFT-04-7 and ALFT-04-6 are ROHS3 compliant and maintain Active product status.

Q: What is the maximum current rating for these common mode chokes?

A: Both the ALFT-04-7 and ALFT-04-6 are rated for a maximum current of 3.7A.
