Equivalent & Substitute Parts for AL01ZV0

Part Overview

AL01ZV0 is a general-purpose diode from Sanken Electric USA Inc., classified within the Diodes, Rectifiers category. It features a maximum reverse voltage of 200 V, maximum average rectified current of 1A, and a fast recovery time of 50 ns. The component is housed in an axial through-hole package and supports an operating junction temperature of -40°C to 150°C. This product is currently obsolete, making it necessary to identify parametric equivalent substitute models to ensure continued design and production support.

Key Parameters

Manufacturer Part Number	Category	Description	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Technology	Mounting Type	Package / Case	Operating Temperature - Junction	RoHS Status	Product Status
AL01ZV0	Diodes, Rectifiers	Diode 200 V 1A Through Hole	200 V	1A	980 mV @ 1 A	Fast Recovery =< 500ns, > 200mA (Io)	50 ns	50 µA @ 200 V	Standard	Through Hole	Axial	-40°C ~ 150°C	RoHS Compliant	Obsolete

Substitute Part Grouping Explanation

Substitution is determined strictly by matching the key electrical and mechanical parameters in the category of Diodes, Rectifiers. The following criteria are used:

Maximum DC Reverse Voltage: 200 V
Maximum Average Rectified Current: 1A
Maximum Forward Voltage: 980 mV @ 1 A
Reverse Recovery Time: 50 ns or faster
Speed: Fast Recovery =< 500ns, > 200mA (Io)
Reverse Leakage Current: ≤50 µA @ 200 V
Technology: Standard
Mounting Type: Through Hole
Package / Case: Axial
Operating Junction Temperature: -40°C ~ 150°C
RoHS Compliance

All listed substitute parts conform to these criteria.

Parameter Comparison

Manufacturer Part Number	Category	Description	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Speed	Current - Reverse Leakage @ Vr	Mounting Type	Package / Case	Operating Temperature - Junction	RoHS Status	Product Status
AL01ZV0	Diodes, Rectifiers	Diode 200 V 1A Through Hole	200 V	1A	980 mV @ 1 A	Fast Recovery =< 500ns, > 200mA (Io)	50 µA @ 200 V	Through Hole	Axial	-40°C ~ 150°C	RoHS Compliant	Obsolete

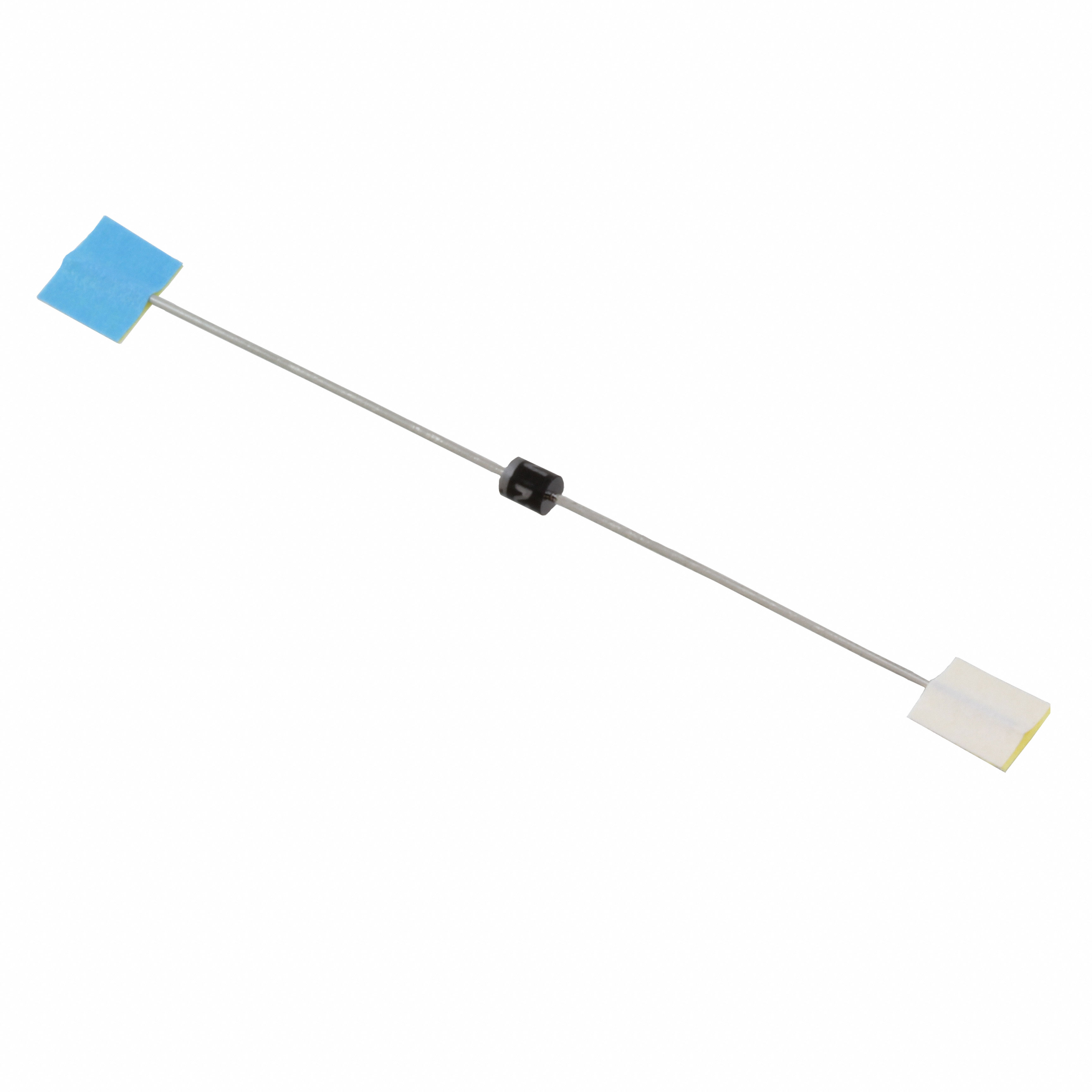

AM01ZV0	Diodes, Rectifiers	Diode 200 V 1A Through Hole	200 V	1A	980 mV @ 1 A	Fast Recovery =< 500ns, > 200mA (Io)	10 µA @ 200 V	Through Hole	Axial	-40°C ~ 150°C	RoHS Compliant	Active
AM01ZV1	Diodes, Rectifiers	Diode 200 V 1A Through Hole	200 V	1A	980 mV @ 1 A	Fast Recovery =< 500ns, > 200mA (Io)	10 µA @ 200 V	Through Hole	Axial	-40°C ~ 150°C	RoHS Compliant	Active
AM01ZWK	Diodes, Rectifiers	Diode 200 V 1A Through Hole	200 V	1A	980 mV @ 1 A	Fast Recovery =< 500ns, > 200mA (Io)	10 µA @ 200 V	Through Hole	Axial	-40°C ~ 150°C	RoHS Compliant	Active
AM01ZWS	Diodes, Rectifiers	Diode 200 V 1A Through Hole	200 V	1A	980 mV @ 1 A	Fast Recovery =< 500ns, > 200mA (Io)	10 µA @ 200 V	Through Hole	Axial	-40°C ~ 150°C	RoHS Compliant	Active

Engineering Selection Recommendations

AL01ZV0 is designated obsolete. All substitute part numbers (AM01ZV0, AM01ZV1, AM01ZWK, AM01ZWS) are currently active, and each complies with RoHS requirements. These substitutes maintain equivalent electrical and mechanical parameters within the Diodes, Rectifiers category. Product status and environmental compliance support their selection as direct replacements.

Frequently Asked Questions (FAQ)

Q1: Which electrical parameters must match for a valid substitution in the Diodes, Rectifiers category?
A1: Substitute diodes must match the maximum DC reverse voltage (200 V), maximum average rectified current (1A), maximum forward voltage (980 mV @ 1 A), recovery speed, and reverse leakage current.

Q2: Are the substitute diodes mechanically compatible with designs using AL01ZV0?
A2: All listed substitutes are axial through-hole devices, matching the mounting type and package/case of AL01ZV0.

Q3: Do the substitute parts have equivalent compliance and certifications?
A3: All alternatives are RoHS compliant with a Moisture Sensitivity Level (MSL) of 1 (Unlimited).

Q4: What is the operational temperature range for the substitute parts?
A4: All substitutes maintain an operating junction temperature range of -40°C to 150°C.

Q5: How does product status affect substitute selection?
A5: AL01ZV0 is obsolete. Substitute parts are listed as active, ensuring support for ongoing procurement and production needs.
