AHES3295 Equivalent & Substitute Parts

Part Overview

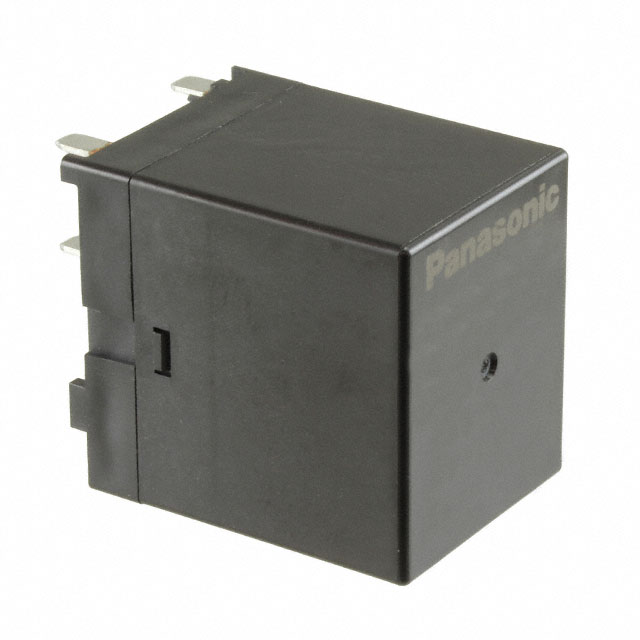

The AHES3295 is a general purpose relay manufactured by Panasonic Electric Works, featuring a DPST-NO (2 Form A) contact configuration with a 9VDC coil. This through-hole mounted relay is designed for applications requiring 35A contact rating at 277VAC switching voltage. The part is currently active in production with 874 units in stock. Substitute parts are identified when equivalent electrical and mechanical parameters allow direct replacement in circuit designs without modification to PCB layouts or control logic.

Substiute Parts

AHES3295

Panasonic Electric WorksIn Stock: 888AHES3295 Datasheet

Current PartRFQ

AHES3195

Panasonic Electric WorksIn Stock: 1144AHES3195 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The AHES3195 qualifies as a parametric equivalent to the AHES3295 based on the following critical parameters:

• Identical coil voltage specification (9VDC)
• Identical contact form configuration (DPST-NO / 2 Form A)
• Identical contact current rating (35 A)
• Identical switching voltage rating (277VAC - Nom)
• Identical coil current draw (209 mA)
• Identical mounting type (Through Hole)
• Identical termination style (PC Pin)
• Identical operating temperature range (-40°C ~ 55°C)
• Identical contact material (Silver Tin Oxide)
• Identical coil resistance (43 Ohms)
• Identical seal rating (Sealed - Flux Protection)
• Identical coil insulation class (Class F)
• Identical must-operate and must-release voltage specifications

Both parts belong to the Panasonic Electric Works HE-S relay series and share the same base product architecture, differing only in internal revision levels (AHES32 vs AHES31 base numbers).

Parameter Comparison

Engineering Selection Recommendations

Both AHES3295 and AHES3195 are active production parts from Panasonic Electric Works with full RoHS compliance. The AHES3195 carries ROHS3 certification while the AHES3295 maintains RoHS Compliant status. The AHES3195 additionally carries REACH Unaffected designation. Selection between these parts should be based on inventory availability and compliance documentation requirements for your specific application. Both parts are electrically and mechanically interchangeable with identical performance characteristics across all specified parameters. The AHES3195 currently has higher inventory availability (1062 units vs 874 units).

Frequently Asked Questions (FAQ)

Q: Can AHES3195 be used as a direct replacement for AHES3295 on existing PCBs?

A: Yes. Both parts share identical through-hole PC pin termination, identical pin spacing, and identical mounting footprints. No PCB layout modifications are required.

Q: Are the coil drive requirements identical between these parts?

A: Yes. Both parts require 9VDC coil voltage with 209 mA coil current and 43 Ohms coil resistance. Existing drive circuits require no modification.

Q: Do these relays have the same switching performance?

A: Yes. Both parts have identical operate time (30 ms), release time (10 ms), must-operate voltage (6.3 VDC), and must-release voltage (0.45 VDC) specifications.

Q: What is the difference between RoHS Compliant and ROHS3 Compliant?

A: ROHS3 represents a more recent certification standard. Both designations indicate compliance with RoHS requirements. The AHES3195 carries the newer ROHS3 certification.

Q: Are there any temperature or environmental differences between these parts?

A: No. Both parts operate across the identical temperature range (-40°C ~ 55°C) and feature identical sealed flux protection ratings.

Q: Can I mix AHES3295 and AHES3195 relays in the same production batch?

A: Yes. Since all electrical and mechanical parameters are identical, both parts can be used interchangeably within the same design without functional or performance differences.
