Equivalent & Substitute Parts Reference: AFCT-5705APZ

Part Overview

The Broadcom Limited AFCT-5705APZ is a transceiver module for Ethernet applications, operating at 1.25Gbd and a wavelength of 1310nm. It features an LC Duplex connector and is suitable for pluggable, SFP form factor installations. The part is RoHS3 compliant and supplied in bulk packaging. Its product status is listed as Obsolete. Finding alternative models is necessary for ongoing or future designs requiring active support, supply continuity, and compliant certifications.

Substiute Parts

AFCT-5705APZ

Broadcom LimitedIn Stock: 1004AFCT-5705APZ Datasheet

Current PartRFQ

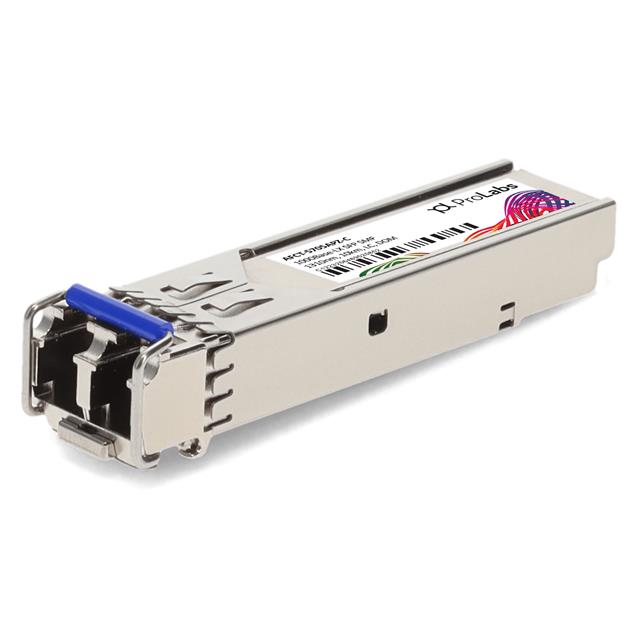

AFCT-5705APZ-C

ProLabsIn Stock: 96402AFCT-5705APZ-C Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution is strictly determined based on the following key parameters: operating wavelength (1310nm), connector type (LC/LC Duplex), mounting type (Pluggable, SFP), RoHS compliance, and product status. Only parts matching these explicit criteria are suitable for direct replacement in Ethernet applications using the SFP form factor.

Parameter Comparison

Engineering Selection Recommendations

The main part, AFCT-5705APZ, is classified as Obsolete. The substitute part, AFCT-5705APZ-C from ProLabs, is Active and meets RoHS compliance standards, aligning with required environmental certifications. For applications requiring ongoing support, preference should be given to parts with active product status and matching compliance declarations.

Frequently Asked Questions (FAQ)

Q: What major criteria must be matched when selecting substitutes for AFCT-5705APZ? A: Wavelength, connector type, mounting type, RoHS compliance, and product status are required criteria for substitution.

Q: Is there any difference in connector form between LC Duplex and LC? A: Both share LC interface compatibility; review the mechanical connector orientation in system implementation.

Q: Is it necessary to select only RoHS compliant substitutes? A: Yes, environmental compliance such as RoHS3 must match the main part’s certification.

Q: Does the packaging type affect component substitution? A: Substitute selection in this reference is based solely on electrical and mechanical parameters, not on packaging format.

Q: How does product status impact substitute selection? A: Active status indicates ongoing manufacturer support and supply, whereas obsolete status may subject to limited availability.

Q: Are supply voltage and data rate considered in these substitutions? A: Only explicit key parameters (wavelength, connector, mounting, RoHS, product status) provided in the input are used for substitution.
