A-DSF15LPIII/FP-R D-Sub 15 Position IDC Plug Connector

Part Overview

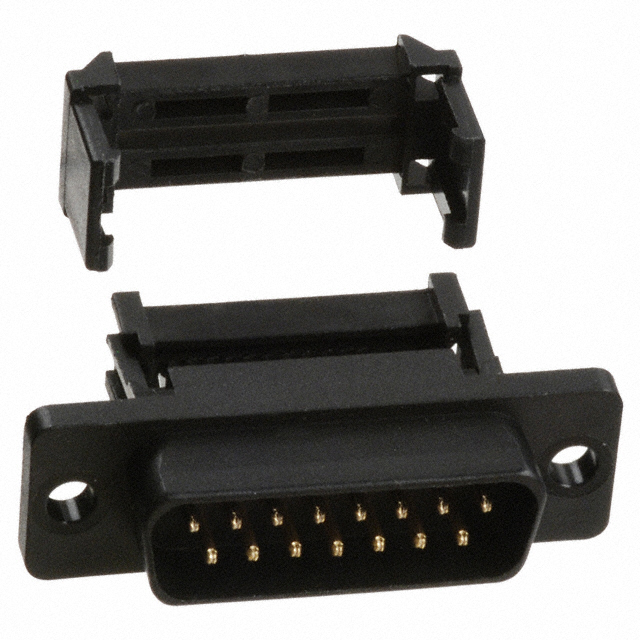

The A-DSF15LPIII/FP-R is a 15 position D-Sub plug connector with male pins, designed for IDC ribbon cable termination. This connector features a 2-row configuration in shell size 2 (DA, A) with free hanging in-line mounting. The product is currently obsolete, making identification of suitable alternatives essential for ongoing system maintenance and component procurement.

Substiute Parts

A-DSF15LPIII/FP-R

Assmann WSW ComponentsIn Stock: 1168A-DSF15LPIII/FP-R Datasheet

Current PartRFQ

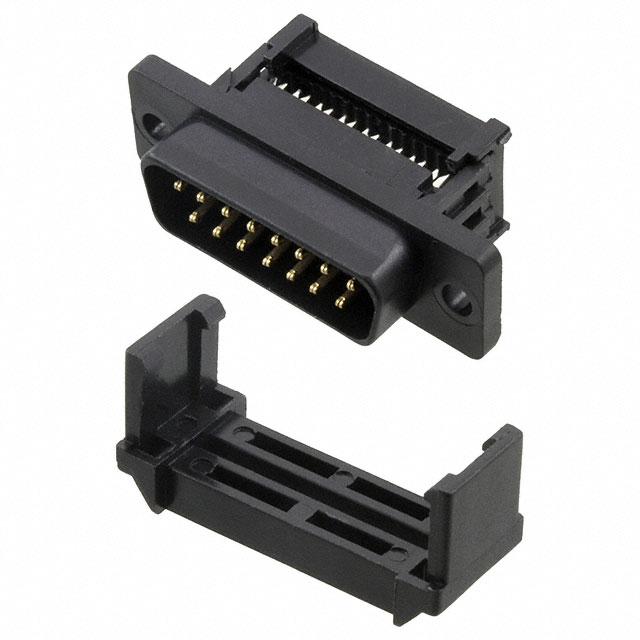

A-DSF 15 LPIII/FP

Assmann WSW ComponentsIn Stock: 1485A-DSF 15 LPIII/FP Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The A-DSF 15 LPIII/FP qualifies as a direct substitute for the A-DSF15LPIII/FP-R based on the following critical parameters:

• Identical connector type, pin configuration, and shell size
• Matching termination method (IDC, Ribbon Cable)
• Identical electrical ratings (3A current, 250V voltage)
• Identical operating temperature range (-55°C to 105°C)
• Identical wire gauge specification (26-28 AWG)
• Identical dielectric material and flammability rating (UL94 V-0)
• Identical mounting configuration (Free Hanging, In-Line)

The primary difference is product status: the original part is obsolete, while the substitute is active. The substitute is available in tray packaging with higher inventory availability.

Parameter Comparison

Engineering Selection Recommendations

The A-DSF 15 LPIII/FP is the appropriate replacement for the obsolete A-DSF15LPIII/FP-R. Both connectors are manufactured by Assmann WSW Components and share identical electrical, mechanical, and environmental specifications. The substitute part is currently in active production status with ROHS3 compliance certification, ensuring long-term availability and regulatory alignment. The substitute maintains full compatibility with existing ribbon cable assemblies and mounting configurations specified for the original part.

Frequently Asked Questions (FAQ)

Q: Are these connectors mechanically interchangeable? A: Yes. Both connectors feature identical shell size 2 (DA, A) configurations, free hanging in-line mounting, and IDC ribbon cable termination. They are direct mechanical replacements.

Q: What is the significance of the product status change from Obsolete to Active? A: The substitute part is in active production, ensuring continued availability for procurement and support. The obsolete status of the original part indicates it is no longer manufactured.

Q: Does the substitute meet current regulatory requirements? A: Yes. The A-DSF 15 LPIII/FP carries ROHS3 compliance certification, meeting current environmental and regulatory standards.

Q: Are there packaging differences between these parts? A: The original part packaging is not specified. The substitute is supplied in tray packaging, which is standard for production quantities.

Q: Can the substitute handle the same electrical loads? A: Yes. Both connectors are rated for 3A current and 250V voltage with identical operating temperature ranges of -55°C to 105°C.

Q: Is the wire gauge specification the same? A: Yes. Both connectors accommodate 26-28 AWG ribbon cable, maintaining compatibility with existing assemblies.
