A-DSF09LPIII/FP-R D-Sub 9 Position IDC Plug Connector

Part Overview

The A-DSF09LPIII/FP-R is a 9 position D-Sub plug connector with male pins, designed for IDC (Insulation Displacement Contact) ribbon cable termination. This connector features a DE/E shell size (Size 1) and is rated for 3A at 250V with operating temperatures from -55°C to 105°C. The part is currently obsolete, making identification of compatible substitutes essential for ongoing system maintenance and component procurement. The primary substitute maintains identical electrical and mechanical specifications while offering improved availability through active product status.

Substiute Parts

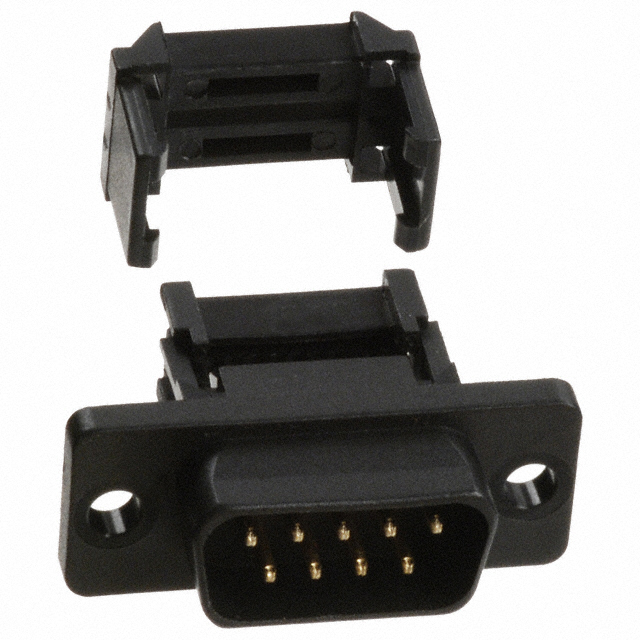

A-DSF09LPIII/FP-R

Assmann WSW ComponentsIn Stock: 872A-DSF09LPIII/FP-R Datasheet

Current PartRFQ

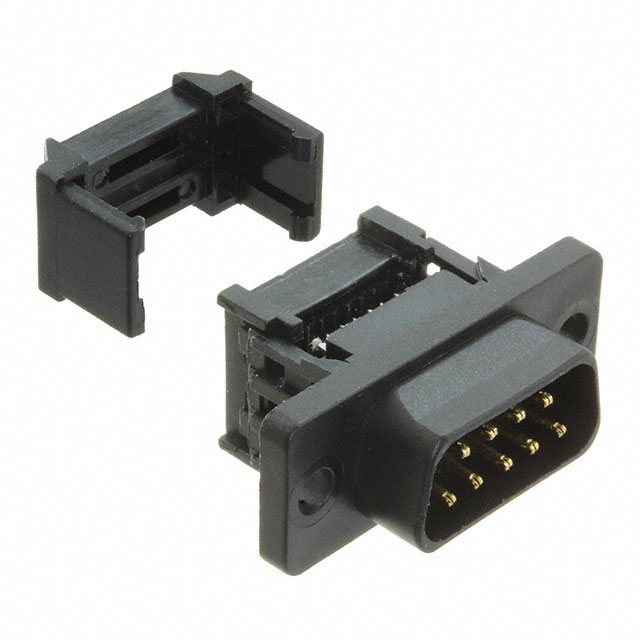

A-DSF 09 LPIII/FP

Assmann WSW ComponentsIn Stock: 6676A-DSF 09 LPIII/FP Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The A-DSF 09 LPIII/FP qualifies as a direct substitute for the A-DSF09LPIII/FP-R based on strict equivalence across all critical electrical and mechanical parameters. Substitution is valid when the following parameters match identically:

• Connector style, type, and pin configuration (D-Sub plug, 9 position, male pins)
• Shell size and layout (Size 1, DE/E configuration)
• Termination method (IDC, ribbon cable)
• Mounting type (free hanging, in-line)
• Electrical ratings (3A current, 250V voltage)
• Operating temperature range (-55°C to 105°C)
• Wire gauge compatibility (26-28 AWG)
• Dielectric and contact materials (PBT glass-filled, copper alloy)
• Flammability and moisture sensitivity ratings (UL94 V-0, MSL 1)

The substitute part maintains full compatibility with the original design specifications and system requirements.

Parameter Comparison

Engineering Selection Recommendations

The A-DSF 09 LPIII/FP is the appropriate selection for applications currently using the A-DSF09LPIII/FP-R. The substitute part is manufactured by the same supplier and maintains complete electrical and mechanical equivalence across all specified parameters. The transition from obsolete to active product status ensures long-term availability and supply chain continuity. The substitute part carries ROHS3 compliance certification, meeting current regulatory requirements for electronic component procurement. Both parts share identical REACH and ECCN classifications, confirming regulatory equivalence for export and procurement purposes.

Frequently Asked Questions (FAQ)

Q: Can the A-DSF 09 LPIII/FP be used as a direct replacement for the A-DSF09LPIII/FP-R?

A: Yes. Both parts are electrically and mechanically identical across all critical parameters including connector type, pin configuration, shell size, termination method, current and voltage ratings, operating temperature range, and material specifications. The substitute is the recommended choice due to active product status and improved availability.

Q: What is the difference between the two part numbers?

A: The primary difference is product status. The A-DSF09LPIII/FP-R is obsolete, while the A-DSF 09 LPIII/FP is active. The substitute also includes ROHS3 compliance certification and is supplied in tray packaging rather than unspecified packaging. All functional and electrical specifications remain identical.

Q: Are there packaging considerations when switching to the substitute part?

A: The substitute part is supplied in tray packaging, which may differ from the original part's packaging configuration. Verify that tray packaging is compatible with your procurement and assembly processes. The connector itself maintains identical form factor and mounting characteristics.

Q: Does the substitute part meet current regulatory requirements?

A: Yes. The A-DSF 09 LPIII/FP carries ROHS3 compliance certification and maintains REACH Unaffected status, meeting current regulatory standards for electronic component procurement and use in regulated industries.

Q: What wire gauge compatibility should be confirmed?

A: Both parts accommodate 26-28 AWG ribbon cable for IDC termination. Ensure your existing ribbon cable assembly falls within this gauge specification before implementation.
