ADP5210 Equivalent & Substitute Parts

Part Overview

The ADP5210 is a surface-mount pressure sensor from Panasonic Electronic Components' PS-A series, designed for board-level applications requiring vented gauge pressure measurement. This component delivers amplified output with temperature compensation, operating across a -10°C to 60°C range with ±1.5% accuracy. The sensor is actively produced and maintains full RoHS3 and REACH compliance, making it suitable for current industrial and commercial applications. Substitute parts are identified to provide design flexibility, inventory alternatives, and supply chain continuity while maintaining identical electrical and mechanical specifications.

Substiute Parts

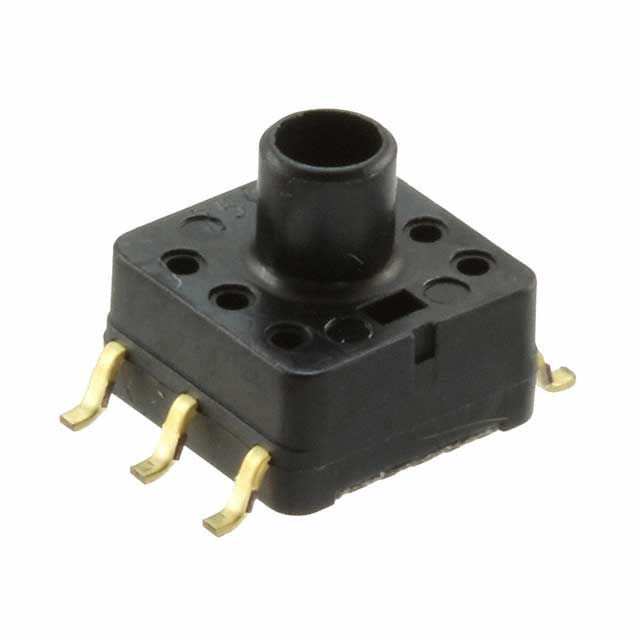

ADP5210

Panasonic Electronic ComponentsIn Stock: 873ADP5210 Datasheet

Current PartRFQ

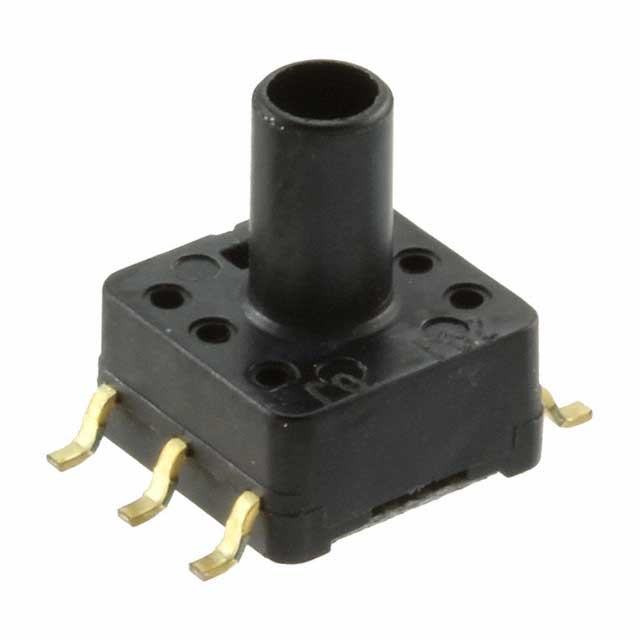

ADP5211

Panasonic Electronic ComponentsIn Stock: 2068ADP5211 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the ADP5210 are identified based on strict parametric equivalence across all critical electrical and mechanical specifications. The substitution criteria include:

Electrical Parameters: Output type (Wheatstone Bridge), output voltage range (0 V ~ 4.5 V), supply voltage (5 V), and accuracy (±1.5%) must remain identical.

Mechanical Parameters: Port size (Male - 0.12" / 3 mm Tube), port style (Barbless), mounting type (Surface Mount), package type (6-SMD Module), and termination style (Gull Wing) must match exactly.

Pressure Specifications: Operating pressure (-14.5 PSI / -100 kPa) and maximum pressure (-29.01 PSI / -200 kPa) must be identical.

Environmental & Compliance: Operating temperature range (-10°C ~ 60°C), RoHS3 compliance, REACH status, and MSL rating must be maintained.

Series & Manufacturer: Parts must belong to the PS-A series from Panasonic Electronic Components and maintain Active product status.

Parameter Comparison

Engineering Selection Recommendations

Both ADP5210 and ADP5211 are Active products from Panasonic Electronic Components with identical electrical, mechanical, and environmental specifications. Selection between these parts should be based on inventory availability and supply chain considerations. The ADP5211 currently maintains higher inventory levels (1960 pcs) compared to the ADP5210 (772 pcs), making it a viable alternative for applications requiring immediate availability. Both parts maintain full RoHS3 compliance and REACH unaffected status, ensuring regulatory compatibility across current and future applications. No technical performance differentiation exists between these parts based on provided specifications.

Frequently Asked Questions (FAQ)

Q: Can ADP5211 be used as a direct replacement for ADP5210? A: Yes. Both parts are parametrically equivalent across all electrical, mechanical, pressure, and environmental specifications. They share identical output characteristics, supply requirements, accuracy ratings, and physical package dimensions.

Q: Are there any differences in compliance or certifications? A: No. Both ADP5210 and ADP5211 maintain identical RoHS3 compliance, REACH unaffected status, and MSL rating of 1 (Unlimited).

Q: What determines substitutability for this pressure sensor? A: Substitutability is determined by matching: pressure type and range, output type and voltage, supply voltage, accuracy, operating temperature, port size and style, mounting type, package configuration, and termination style. All these parameters must be identical.

Q: Does the 6-SMD Module package differ between these parts? A: No. Both parts use the identical 6-SMD Module package with Gull Wing termination style and barbless male 0.12" (3 mm) tube port.

Q: Which part should be selected for new designs? A: Either part is suitable for new designs. Selection should be based on current inventory availability and supply chain lead times, as both maintain Active product status and identical specifications.
