ADP1171 Equivalent & Substitute Parts

Part Overview

The ADP1171 is a pressure sensor manufactured by Panasonic Electronic Components, designed for board mount applications requiring vented gauge pressure measurement. This 6-DIP module sensor operates at 71.11 PSI (490.3 kPa) with a Wheatstone Bridge output of 0 mV to 100 mV, supplied at 5V. The component is actively produced and stocked, with ROHS3 compliance and unlimited moisture sensitivity rating. Substitute parts are identified when identical electrical and mechanical parameters are maintained across the same product series, ensuring direct functional equivalence for component selection and procurement purposes.

Substiute Parts

ADP1171

Panasonic Electronic ComponentsIn Stock: 1174ADP1171 Datasheet

Current PartRFQ

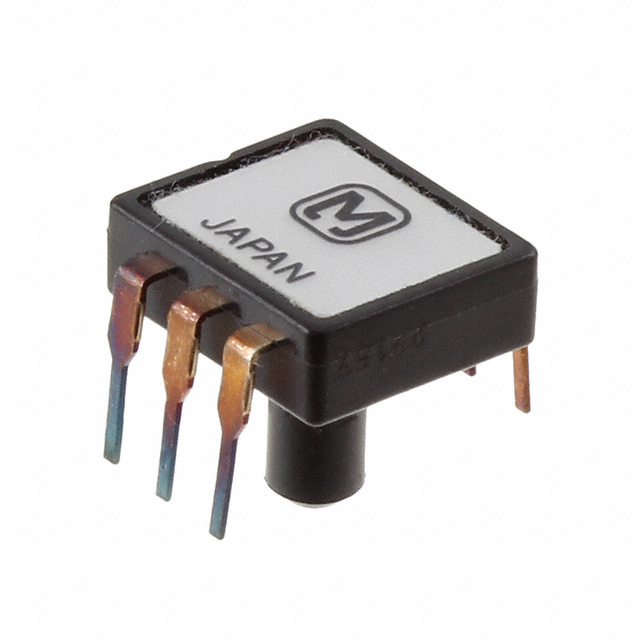

ADP1271

Panasonic Electronic ComponentsIn Stock: 1172ADP1271 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the ADP1171 are identified based on strict parametric equivalence within the Panasonic PF series. The substitution criteria are defined by the following key parameters that must remain identical:

Operating pressure rating of 71.11 PSI (490.3 kPa), vented gauge pressure type, Wheatstone Bridge output configuration with 0 mV to 100 mV range, 5V supply voltage, ±0.5% accuracy specification, male 0.12" (3mm) tube port with barbless style, temperature compensation feature, -20°C to 100°C operating temperature range, 6-DIP module package, through-hole mounting, PC pin termination, and ROHS3 compliance status.

The ADP1271 meets all these criteria and is classified as a parametric equivalent within the same product series.

Parameter Comparison

Engineering Selection Recommendations

Both ADP1171 and ADP1271 are active production components from Panasonic Electronic Components with identical ROHS3 compliance and REACH unaffected status. Selection between these parts is based on inventory availability and procurement lead times, as both components meet all electrical, mechanical, and environmental specifications for direct substitution in board mount pressure sensing applications. Current inventory shows 1107 pieces for ADP1171 and 1152 pieces for ADP1271, both available as new original stock.

Frequently Asked Questions (FAQ)

Q: Can ADP1271 be used as a direct replacement for ADP1171?

A: Yes. Both components share identical electrical specifications (5V supply, 0 mV to 100 mV Wheatstone Bridge output, ±0.5% accuracy), mechanical configuration (6-DIP module, through-hole mounting, PC pin termination), pressure rating (71.11 PSI operating, 142.22 PSI maximum), port specifications (male 0.12" barbless tube), and environmental ratings (-20°C to 100°C operating temperature, temperature compensated). Direct substitution is supported.

Q: Are there any package or mounting differences between ADP1171 and ADP1271?

A: No. Both components use identical 6-DIP module packaging with through-hole mounting and PC pin termination style. PCB layout and assembly procedures remain unchanged.

Q: What compliance certifications apply to both parts?

A: Both ADP1171 and ADP1271 are ROHS3 compliant with moisture sensitivity level 1 (unlimited). REACH status is unaffected for both components.

Q: How do the pressure specifications compare?

A: Operating pressure is 71.11 PSI (490.3 kPa) for both parts with maximum pressure rating of 142.22 PSI (980.57 kPa). Pressure type is vented gauge for both components.
