ADJ24005 Equivalent & Substitute Parts

Part Overview

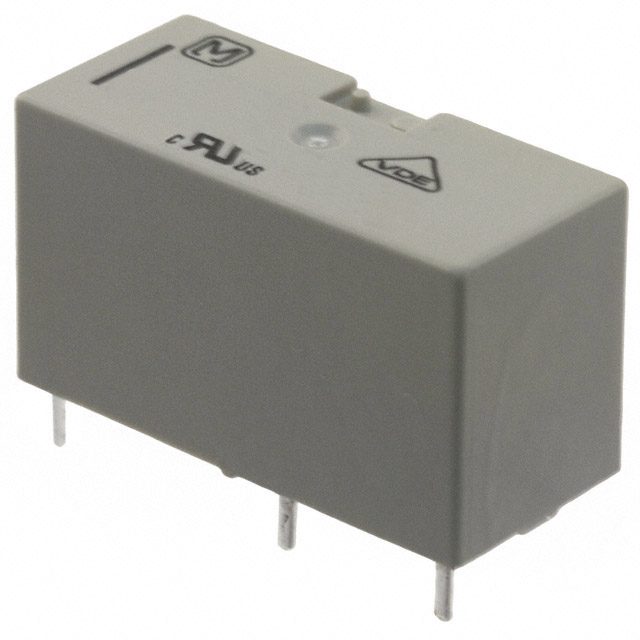

The ADJ24005 is a general purpose relay manufactured by Panasonic Electric Works, configured as a SPST-NO (1 Form A) with a 5VDC coil and 16A contact rating. This through-hole mounted relay is designed for applications requiring single-pole, single-throw switching at 250VAC maximum. The part is currently active in production with 868 units in stock. Substitute parts are identified when equivalent electrical performance and mechanical compatibility can be maintained within the specified parameter ranges for this relay category.

Substiute Parts

ADJ24005

Panasonic Electric WorksIn Stock: 897ADJ24005 Datasheet

Current PartRFQ

RT314F05

TE Connectivity Potter & Brumfield RelaysIn Stock: 5609RT314F05 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The RT314F05 from TE Connectivity Potter & Brumfield Relays is listed as a substitute for the ADJ24005. Substitution eligibility is determined by the following critical parameters:

• Coil voltage matching at 5VDC
• Through-hole mounting compatibility
• Contact current rating of 16A or greater
• Latching, dual coil configuration
• PC pin termination
• RoHS3 compliance
• Operating temperature range overlap

The RT314F05 meets these core substitution criteria. However, the contact form differs: RT314F05 is configured as SPDT (1 Form C) rather than SPST-NO (1 Form A). This represents a functional difference in switching capability that must be evaluated against specific application requirements.

Parameter Comparison

Engineering Selection Recommendations

Both the ADJ24005 and RT314F05 maintain active product status and full RoHS3 compliance with REACH unaffected designation. Selection between these parts must account for the functional difference in contact configuration:

The ADJ24005 provides SPST-NO switching, suitable for applications requiring a single normally-open contact. The RT314F05 provides SPDT switching with changeover capability, offering additional circuit flexibility through its Form C contact arrangement.

The RT314F05 demonstrates improved performance characteristics in switching speed (10 ms versus 20 ms for both operate and release times) and extended operating temperature range (-40°C to 85°C versus -40°C to 70°C). However, the RT314F05 requires higher coil current (119 mA versus 50 mA) and operates at lower coil resistance (42 Ohms versus 100 Ohms).

Selection should be based on whether the application circuit design can accommodate the SPDT contact form and the increased coil current demand of the RT314F05.

Frequently Asked Questions (FAQ)

Q: Can the RT314F05 directly replace the ADJ24005 in all applications?

A: Direct replacement is not universal. While both relays share identical coil voltage (5VDC), mounting type (through-hole), contact current rating (16A), and latching dual-coil configuration, the RT314F05 contact form is SPDT (Form C) rather than SPST-NO (Form A). Applications designed for single-pole switching must be re-evaluated for compatibility with changeover switching capability.

Q: What are the key electrical differences between these parts?

A: The RT314F05 requires 119 mA coil current compared to 50 mA for the ADJ24005, resulting in lower coil resistance (42 Ohms versus 100 Ohms). The RT314F05 also supports higher maximum switching voltage (400VAC versus 250VAC) and demonstrates faster switching times (10 ms versus 20 ms for both operate and release).

Q: Are there packaging differences between these relays?

A: Yes. The ADJ24005 is supplied in tray packaging, while the RT314F05 is supplied in tube packaging. This affects handling, storage, and integration into assembly processes.

Q: Do both relays meet the same compliance standards?

A: Both the ADJ24005 and RT314F05 are ROHS3 compliant and REACH unaffected. The ADJ24005 carries CQC, cURus, and VDE approvals. Compliance documentation should be verified for specific application requirements.

Q: What is the operating temperature difference?

A: The ADJ24005 operates from -40°C to 70°C, while the RT314F05 operates from -40°C to 85°C. Applications requiring operation above 70°C would require the RT314F05.
