ADIS16480AMLZ Equivalent & Substitute Parts

Part Overview

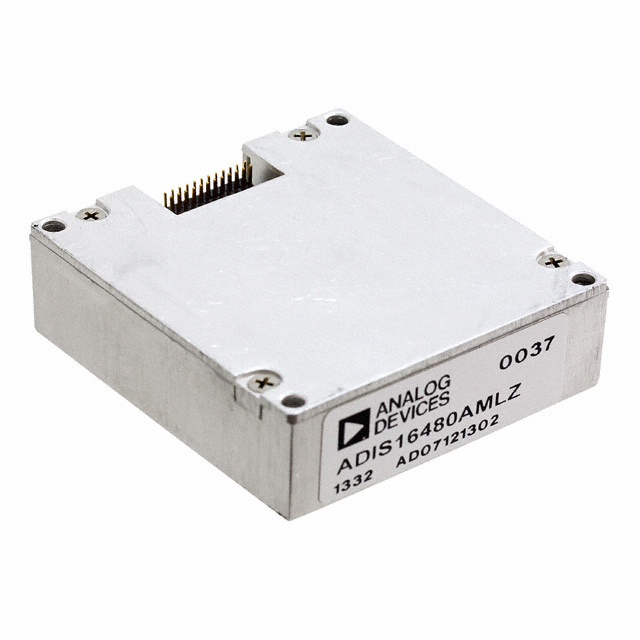

The ADIS16480AMLZ is a 9-axis inertial measurement unit (IMU) manufactured by Analog Devices Inc., integrating accelerometer, gyroscope, magnetometer, and barometric pressure sensing capabilities with SPI digital output. This module-class component is designed for motion sensing applications requiring multi-axis environmental and inertial data acquisition.

The ADIS16480AMLZ is classified as obsolete. Locating equivalent substitute parts is necessary to support ongoing system maintenance, design updates, and procurement continuity for applications currently utilizing this sensor.

Substiute Parts

ADIS16480AMLZ

Analog Devices Inc.In Stock: 964ADIS16480AMLZ Datasheet

Current PartRFQ

ADIS16480BMLZ

Analog Devices Inc.In Stock: 2280ADIS16480BMLZ Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ADIS16480AMLZ is determined by the following critical parameters:

• Base Product Number: Must be ADIS16480 to ensure functional equivalence
• Sensor Configuration: Must include all nine axes (accelerometer, gyroscope, magnetometer, barometric pressure)
• Output Interface: Must be SPI
• Operating Temperature Range: Must support -40°C ~ 105°C
• Package Type: Must be Module with Chassis Mount configuration
• Series Designation: Must belong to iMEMS® and iSensor™ series
• Regulatory Compliance: ECCN and HTSUS classifications must match

The ADIS16480BMLZ meets all substitution criteria and is classified as a direct equivalent within the ADIS16480 product family.

Parameter Comparison

Engineering Selection Recommendations

The ADIS16480BMLZ is the direct substitute for the ADIS16480AMLZ. Both components share identical functional specifications, sensor configuration, output interface, operating temperature range, and regulatory classifications.

The ADIS16480BMLZ carries Active product status, ensuring ongoing manufacturer support and availability. The substitute part is certified ROHS3 Compliant and REACH Unaffected, meeting current environmental and regulatory requirements for component procurement.

Selection of the ADIS16480BMLZ eliminates obsolescence risk while maintaining full electrical and mechanical compatibility with existing ADIS16480AMLZ designs.

Frequently Asked Questions (FAQ)

Q: Are the ADIS16480AMLZ and ADIS16480BMLZ electrically interchangeable?

A: Yes. Both components share identical sensor configurations (9-axis: accelerometer, gyroscope, magnetometer, barometric pressure), SPI output interface, operating temperature range (-40°C ~ 105°C), and regulatory classifications (ECCN 7A994, HTSUS 8542.39.0001).

Q: What is the primary difference between these two part numbers?

A: The ADIS16480AMLZ is classified as Obsolete, while the ADIS16480BMLZ is Active. The ADIS16480BMLZ includes documented RoHS3 Compliance and REACH Unaffected status.

Q: Can I use the ADIS16480BMLZ as a direct replacement in existing designs?

A: Yes. The ADIS16480BMLZ is mechanically and electrically equivalent. Both components use Module packaging with Chassis Mount configuration and belong to the iMEMS® and iSensor™ series.

Q: Are there any packaging differences between these parts?

A: Both components use Module packaging. The ADIS16480BMLZ is supplied in Box packaging format, while the ADIS16480AMLZ packaging format is not specified in available documentation.

Q: What is the Moisture Sensitivity Level (MSL) for these components?

A: Both the ADIS16480AMLZ and ADIS16480BMLZ have MSL 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling.
