ADIP08-G-LC Equivalent & Substitute Parts

Part Overview

The ADIP08-G-LC is an 8-position ribbon cable DIP header connector manufactured by Assmann WSW Components, designed for through-hole mounting with IDC (Insulation Displacement Contact) termination. This connector is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing design support and component procurement.

The connector features a dual-row configuration with 0.100" (2.54mm) board-side pitch and 0.050" (1.27mm) cable pitch, supporting feed-through applications with gold-plated contacts. Due to its obsolete status, sourcing equivalent active-production alternatives ensures design continuity and supply chain reliability.

Key Parameters

Parameter	Value
Connector Type	Ribbon Cable, DIP Header
Number of Positions	8
Number of Rows	2
Cable Pitch	0.050" (1.27mm)
Board-Side Pitch	0.100" (2.54mm)
Row Spacing	0.300" (7.62mm)
Mounting Type	Through Hole
Cable Termination	IDC
Contact Finish	Gold
Color	Black
Features	Feed Through
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the ADIP08-G-LC is determined by strict equivalence across the following critical parameters:

Connector Type & Configuration: Ribbon cable DIP header with identical 8-position, 2-row layout
Pitch Specifications: Cable pitch of 0.050" (1.27mm) and board-side pitch of 0.100" (2.54mm) must match exactly
Row Spacing: 0.300" (7.62mm) spacing between rows is mandatory for PCB compatibility
Termination Method: IDC cable termination is required for mechanical and electrical compatibility
Mounting & Contact Properties: Through-hole mounting with gold-plated contacts and feed-through capability

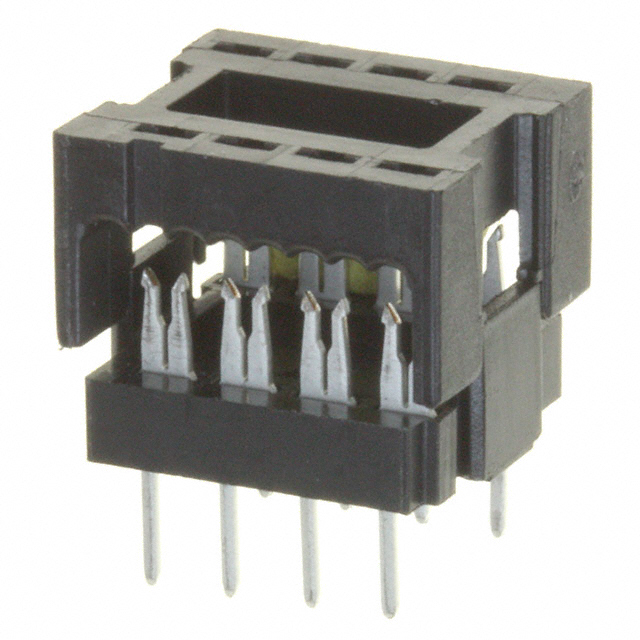

The substitute part 5746613-1 (TE Connectivity AMP Connectors) meets all these criteria while maintaining active product status and enhanced compliance certifications.

Parameter Comparison

Parameter	ADIP08-G-LC (Assmann)	5746613-1 (TE Connectivity)
Connector Type	Ribbon Cable, DIP Header	Ribbon Cable, DIP Header
Number of Positions	8	8
Number of Rows	2	2
Cable Pitch	0.050" (1.27mm)	0.050" (1.27mm)
Board-Side Pitch	0.100" (2.54mm)	0.100" (2.54mm)
Row Spacing	0.300" (7.62mm)	0.300" (7.62mm)
Mounting Type	Through Hole	Through Hole
Cable Termination	IDC	IDC
Contact Finish	Gold	Gold
Color	Black	Black
Features	Feed Through	Feed Through
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)
Product Status	Obsolete	Active
RoHS Status	Not specified	ROHS3 Compliant
REACH Status	REACH Unaffected	REACH Unaffected

Engineering Selection Recommendations

The 5746613-1 (TE Connectivity AMP Connectors) is the direct functional equivalent for the obsolete ADIP08-G-LC. Selection of this substitute is supported by:

Identical Mechanical & Electrical Specifications: All critical pitch, spacing, and termination parameters match exactly, ensuring direct PCB and cable compatibility without design modification
Active Product Status: The substitute maintains active production status, providing long-term supply chain availability and manufacturing consistency
Enhanced Compliance: The 5746613-1 carries ROHS3 compliance certification, meeting current regulatory requirements for new designs and procurement cycles
Equivalent Environmental Rating: Both connectors share MSL 1 (Unlimited) moisture sensitivity classification and REACH Unaffected status

For applications currently using the ADIP08-G-LC, transition to the 5746613-1 requires no PCB layout changes, cable modifications, or functional re-qualification.

Frequently Asked Questions (FAQ)

Q: Can the 5746613-1 be used as a direct replacement for the ADIP08-G-LC without PCB modifications?

A: Yes. The 5746613-1 maintains identical board-side pitch (0.100"), row spacing (0.300"), and through-hole mounting configuration. No PCB layout changes are required.

Q: What is the significance of the cable pitch difference in the detailed descriptions?

A: The cable pitch of 0.050" (1.27mm) is identical for both connectors. The 5746613-1 specification includes wire gauge details (28 AWG stranded; 26-30 AWG solid) for cable compatibility, which does not affect the connector's mechanical or electrical substitution capability.

Q: Does the ROHS3 compliance of the 5746613-1 affect compatibility with existing designs?

A: No. ROHS3 compliance indicates enhanced environmental and material standards in the substitute part. This does not impact electrical or mechanical compatibility with existing PCB designs or cable assemblies.

Q: Are there any differences in contact finish specifications between the two connectors?

A: Both connectors feature gold-plated contacts. The ADIP08-G-LC specifies flash plating, while the 5746613-1 specifies 5.00µin (0.127µm) thickness. Both finishes provide equivalent electrical performance and corrosion resistance for this connector class.

Q: What is the inventory status for the substitute part?

A: The 5746613-1 has 1523 pieces in new original stock, providing immediate availability for procurement and production requirements.
