A-CCS68-G PLCC 68-Position Socket Equivalent & Substitute Parts

Part Overview

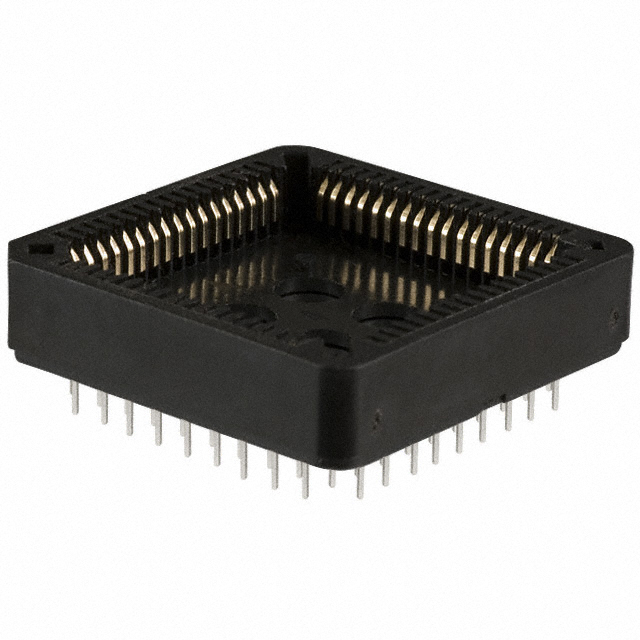

The A-CCS68-G is a 68-position PLCC (Plastic Leaded Chip Carrier) socket manufactured by Assmann WSW Components, designed for through-hole mounting applications. This component features gold-plated contacts and phosphor bronze materials for reliable electrical performance in IC and transistor socket applications.

The A-CCS68-G is classified as obsolete product status. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or repair requirements for legacy systems utilizing this socket configuration.

Substiute Parts

A-CCS68-G

Assmann WSW ComponentsIn Stock: 1177A-CCS68-G Datasheet

Current PartRFQ

A-CCS 068-G-T

Assmann WSW ComponentsIn Stock: 1049A-CCS 068-G-T Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for PLCC 68-position sockets is determined by strict equivalence across the following critical parameters:

Position and Pitch Requirements:

• Number of positions: 68 (4 x 17) configuration
• Mating pitch: 0.050" (1.27mm)
• Post pitch: 0.100" (2.54mm)

Electrical and Material Specifications:

• Contact finish: Gold plating on both mating and post surfaces
• Contact material: Phosphor Bronze
• Current rating: 1 A minimum
• Mounting type: Through Hole
• Termination method: Solder

Physical and Environmental Characteristics:

• Closed frame design
• Housing material: Polybutylene Terephthalate (PBT)
• Flammability rating: UL94 V-0
• Operating temperature compatibility

The substitute part A-CCS 068-G-T meets all critical electrical and mechanical parameters required for direct substitution while offering improved product status and compliance characteristics.

Parameter Comparison

Engineering Selection Recommendations

The A-CCS 068-G-T is a direct functional equivalent to the A-CCS68-G and is suitable for substitution in applications requiring a 68-position PLCC socket with gold-plated phosphor bronze contacts.

Product Status Consideration: The A-CCS68-G is classified as obsolete, while the A-CCS 068-G-T maintains active product status. Selection of the active substitute part ensures ongoing manufacturer support, availability, and supply chain continuity.

Compliance and Certification: The A-CCS 068-G-T achieves ROHS3 compliance, whereas the main part is RoHS non-compliant. For applications subject to RoHS regulatory requirements, the substitute part satisfies current environmental compliance standards.

Electrical Performance: The substitute part demonstrates improved contact resistance (15mOhm versus 30mOhm), providing enhanced electrical performance while maintaining the same 1 A current rating and gold contact finish specifications.

Operating Temperature: The A-CCS 068-G-T operates across -40°C to 105°C, compared to the main part's -55°C to 105°C range. Applications requiring operation below -40°C require evaluation of the temperature differential.

Frequently Asked Questions (FAQ)

Q: Can the A-CCS 068-G-T be used as a direct replacement for the A-CCS68-G?

A: Yes. Both parts share identical PLCC 68-position configuration, mating and post pitch specifications (0.050" and 0.100" respectively), gold contact finish, phosphor bronze contact material, through-hole mounting, and solder termination. Electrical and mechanical compatibility is established across all critical parameters.

Q: What is the difference in contact resistance between these parts?

A: The A-CCS68-G specifies 30mOhm contact resistance, while the A-CCS 068-G-T specifies 15mOhm. The substitute part provides lower contact resistance, which may improve signal integrity in high-frequency or low-voltage applications.

Q: Does the operating temperature range difference affect substitution?

A: The A-CCS68-G operates from -55°C to 105°C, while the A-CCS 068-G-T operates from -40°C to 105°C. For applications requiring operation below -40°C, the main part specification must be retained. For standard industrial and commercial temperature ranges, the substitute part is suitable.

Q: What is the significance of RoHS3 compliance on the substitute part?

A: The A-CCS 068-G-T is ROHS3 compliant, meeting current European Union Restriction of Hazardous Substances regulations. The main part is RoHS non-compliant. For applications subject to RoHS requirements or for new designs, the substitute part satisfies regulatory compliance.

Q: Are there packaging differences between these parts?

A: The A-CCS68-G is supplied in bulk packaging, while the A-CCS 068-G-T is supplied in tube packaging. Packaging format does not affect electrical or mechanical compatibility; selection depends on inventory management and handling requirements.

Q: What is the housing material composition difference?

A: The A-CCS68-G housing is specified as Polybutylene Terephthalate (PBT) with glass filling, while the A-CCS 068-G-T housing is specified as Polybutylene Terephthalate (PBT) without explicit glass-fill notation. Both materials meet UL94 V-0 flammability requirements and are functionally equivalent for socket applications.
