AB356N2T Equivalent & Substitute Parts

Part Overview

The AB356N2T is a 1-channel optoisolator with transistor output manufactured by Kingbright. This component provides galvanic isolation at 3750Vrms and is designed for applications requiring DC input signal isolation with transistor-based output switching. The part is currently in active production status with 1739 units available in inventory. Substitute parts are identified when equivalent electrical performance and mechanical compatibility can be maintained across the specified parameter range.

Substiute Parts

AB356N2T

KingbrightIn Stock: 1813AB356N2T Datasheet

Current PartRFQ

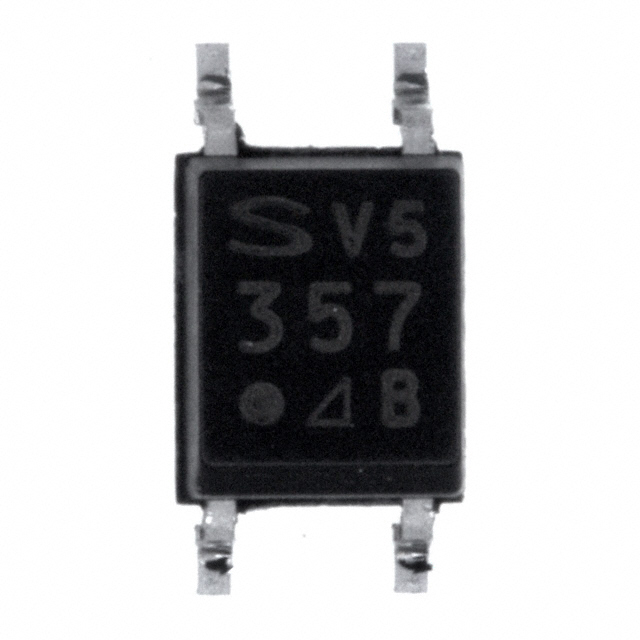

PC357N2J000F

SHARP/Socle TechnologyIn Stock: 141331PC357N2J000F Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The PC357N2J000F qualifies as a parametric equivalent to the AB356N2T based on the following critical parameters:

• Isolation voltage: Both parts maintain 3750Vrms isolation rating
• Current transfer ratio: Both parts specify 130% minimum and 260% maximum @ 5mA
• Output characteristics: Both provide transistor output with 80V maximum output voltage and 50mA per-channel current capability
• Saturation voltage: Both specify 200mV maximum Vce saturation
• Operating temperature range: Both support -30°C to 100°C operation
• Input type: Both accept DC input signals
• Compliance: Both are ROHS3 compliant and REACH unaffected

The primary differences are packaging format (Tape & Reel versus Cut Tape & Digi-Reel) and rise/fall time characteristics, which do not affect functional substitution within the specified electrical parameters.

Parameter Comparison

Engineering Selection Recommendations

Both the AB356N2T and PC357N2J000F are active production components with ROHS3 compliance and REACH unaffected status. Selection between these parts should be based on:

Availability and lead time requirements, as the PC357N2J000F maintains significantly higher inventory (141300 units) compared to the AB356N2T (1739 units).

Packaging format compatibility with assembly equipment. The AB356N2T is supplied in Tape & Reel format, while the PC357N2J000F is available in Cut Tape & Digi-Reel format.

Moisture handling requirements during storage and assembly. The PC357N2J000F has MSL 1 (unlimited moisture exposure tolerance) versus the AB356N2T with MSL 4 (72-hour limit).

Switching speed requirements. The PC357N2J000F provides faster rise and fall times (4µs and 3µs respectively) compared to the AB356N2T (6µs and 8µs).

Frequently Asked Questions (FAQ)

Q: Can the PC357N2J000F directly replace the AB356N2T in existing designs?

A: Yes, within the specified electrical parameters. Both parts maintain identical isolation voltage, current transfer ratio ranges, output voltage and current ratings, and saturation characteristics. Verification of package footprint compatibility with PCB layout is required.

Q: What is the significance of the different rise and fall times?

A: The PC357N2J000F exhibits faster switching characteristics (4µs rise, 3µs fall) compared to the AB356N2T (6µs rise, 8µs fall). This difference is relevant only for applications with specific timing requirements. For standard isolation applications, both parts are functionally equivalent.

Q: Why does the PC357N2J000F have lower moisture sensitivity?

A: The PC357N2J000F is rated MSL 1 (unlimited moisture exposure) while the AB356N2T is rated MSL 4 (72-hour limit). This affects storage and handling procedures but does not impact electrical performance once the component is soldered to the PCB.

Q: Are there any compliance differences between these parts?

A: Both parts are ROHS3 compliant and REACH unaffected. No compliance barriers exist for substitution.

Q: What packaging considerations apply to substitution?

A: The AB356N2T uses Tape & Reel packaging while the PC357N2J000F uses Cut Tape & Digi-Reel packaging. Confirm compatibility with your assembly equipment and supply chain processes before implementation.
