Equivalent & Substitute Parts for AAA3MBZPKG

Part Overview

The AAA3MBZPKG is a 3-position circular connector receptacle with male pins, manufactured by Switchcraft Inc. as part of the Q-G® AAA series. This connector is designed for solder cup termination in audio, industrial, instrumentation, and medical applications. The part is currently active and in stock with 1,049 units available. Identifying equivalent substitute parts is necessary to ensure supply chain flexibility, manage inventory across packaging variants, and maintain design compatibility when the primary part becomes unavailable.

Substiute Parts

AAA3MBZPKG

Switchcraft Inc.In Stock: 1124AAA3MBZPKG Datasheet

Current PartRFQ

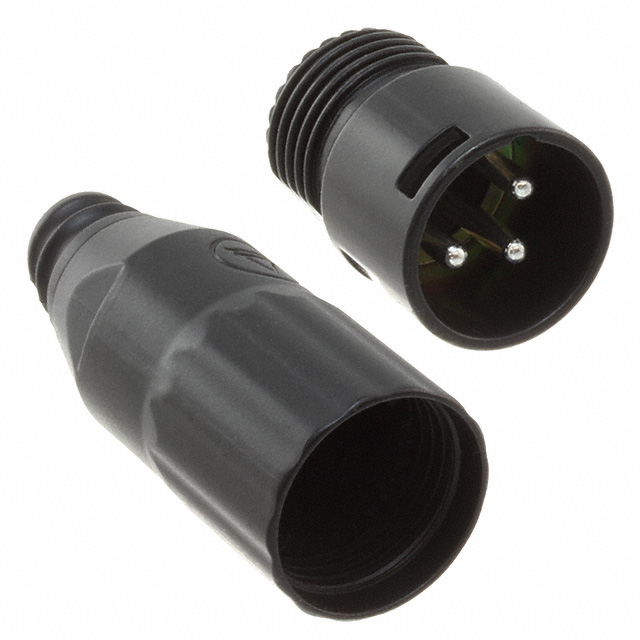

AAA3MBZ

Switchcraft Inc.In Stock: 920AAA3MBZ Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AAA3MBZPKG is determined by strict equivalence across the following critical parameters:

• Connector type and pin configuration (Receptacle, Male Pins, 3-position)
• Shell size and insert standard (XLR)
• Termination method (Solder Cup)
• Electrical ratings (15A current, 125VAC voltage)
• Shielding configuration (Shielded)
• Mechanical features (Latch Lock fastening, Keyed orientation)
• Material and finish specifications (Zinc Alloy shell with Chrome finish, Silver contact finish)
• Regulatory compliance (ROHS3 Compliant, REACH Unaffected)

The substitute part AAA3MBZ meets all these criteria. The primary difference between AAA3MBZPKG and AAA3MBZ is packaging format: AAA3MBZPKG is supplied in standard packaging, while AAA3MBZ is supplied in bulk packaging. This distinction does not affect electrical performance, mechanical compatibility, or functional interchangeability.

Parameter Comparison

Engineering Selection Recommendations

Both AAA3MBZPKG and AAA3MBZ are active products manufactured by Switchcraft Inc. and maintain identical electrical, mechanical, and functional specifications. Both parts are ROHS3 compliant and REACH unaffected, meeting current regulatory requirements for industrial and medical applications.

Selection between these parts should be based on packaging requirements and inventory availability. AAA3MBZPKG is supplied in standard packaging with 1,049 units currently in stock. AAA3MBZ is supplied in bulk packaging with 817 units currently in stock. For applications requiring standard packaging formats, AAA3MBZPKG is the primary choice. For high-volume procurement or applications where bulk packaging is acceptable, AAA3MBZ provides an equivalent alternative.

Frequently Asked Questions (FAQ)

Q: Can AAA3MBZ be used as a direct replacement for AAA3MBZPKG?

A: Yes. AAA3MBZ is electrically and mechanically equivalent to AAA3MBZPKG. The only difference is packaging format. Both parts are identical in connector type, pin configuration, electrical ratings, and mechanical features.

Q: What is the difference between AAA3MBZPKG and AAA3MBZ?

A: The parts differ only in packaging. AAA3MBZPKG is supplied in standard packaging, while AAA3MBZ is supplied in bulk packaging. All electrical, mechanical, and functional specifications are identical.

Q: Are both parts suitable for audio, industrial, instrumentation, and medical applications?

A: Yes. Both AAA3MBZPKG and AAA3MBZ are rated for audio, industrial, instrumentation, and medical applications. They meet the same regulatory requirements and performance specifications.

Q: What are the key electrical specifications for these connectors?

A: Both parts are rated for 15A current and 125VAC voltage. They feature shielded construction with silver-plated mating contacts and support solder cup termination.

Q: Are these connectors RoHS compliant?

A: Yes. Both AAA3MBZPKG and AAA3MBZ are ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory standards.

Q: What cable sizes are compatible with these connectors?

A: Both connectors support cable openings from 0.100" to 0.220" (2.54mm to 5.59mm).
