Switchcraft AA5M Circular Connector - Equivalent & Substitute Parts

Part Overview

The Switchcraft AA5M is a 5-position circular connector receptacle with male pins, designed for audio and instrumentation applications. This XLR-format connector features solder cup termination, latch lock fastening, and a rated capacity of 7.5A at 125VAC. The part is currently active in production with 736 units in stock. Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when specific application requirements necessitate alternative specifications.

Substiute Parts

AA5M

Switchcraft Inc.In Stock: 845AA5M Datasheet

Current PartRFQ

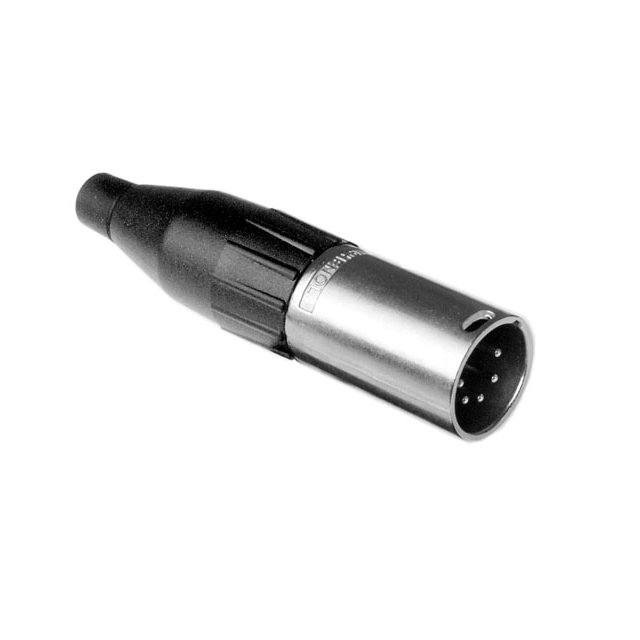

AC5M

Amphenol AudioIn Stock: 1272AC5M Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Switchcraft AA5M is determined by the following critical parameters:

• Connector type must be receptacle with male pins
• Position count must be 5
• Shell size must be XLR format
• Termination method must be solder cup
• Mounting configuration must be free hanging (in-line)
• Orientation must be keyed
• Current rating must be 7.5A minimum
• Fastening mechanism must provide equivalent mechanical retention

The Amphenol Audio AC5M meets these core substitution criteria. Both parts share identical functional specifications for connector type, position count, shell size, termination method, and current rating. Variations in shell material composition, backshell design, and operating temperature range represent secondary differences that do not affect primary substitution eligibility when application requirements align with the specified parameters.

Parameter Comparison

Engineering Selection Recommendations

Selection between the Switchcraft AA5M and Amphenol Audio AC5M should be based on application-specific compliance and environmental requirements:

The Switchcraft AA5M is suitable for applications where RoHS non-compliance is acceptable and legacy system compatibility is required. This part maintains active production status with established supply availability.

The Amphenol Audio AC5M is the appropriate selection for applications requiring ROHS3 compliance, enhanced environmental protection (IP40 ingress protection), and material flammability certification (UL94 V-0). This part provides broader regulatory alignment for modern equipment designs and offers higher inventory availability (1231 units in stock).

Cable opening dimensions differ between the two parts. The Switchcraft AA5M accommodates cable diameters from 5.33mm to 7.62mm, while the Amphenol Audio AC5M accommodates 3.00mm to 6.50mm. Cable specification verification is required prior to substitution to ensure mechanical fit.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol Audio AC5M directly replace the Switchcraft AA5M in existing designs?

A: Direct replacement is possible when cable diameter falls within the Amphenol AC5M specification range (3.00mm to 6.50mm). The fastening mechanism differs (Latch Holder versus Latch Lock), but both provide equivalent mechanical retention for the XLR connector format. Verify that application requirements do not mandate the specific fastening type before substitution.

Q: What is the significance of the RoHS compliance difference?

A: The Switchcraft AA5M is RoHS non-compliant, while the Amphenol Audio AC5M is ROHS3 compliant. Equipment destined for markets with RoHS regulatory requirements must use the AC5M. Legacy systems or applications without RoHS mandates may use either part.

Q: Are the solder cup terminations compatible between these parts?

A: Both parts feature solder cup termination. Solder joint procedures and thermal profiles remain consistent across both connectors. No modification to assembly processes is required.

Q: How do the contact materials affect performance?

A: The Switchcraft AA5M uses brass contacts, while the Amphenol Audio AC5M uses phosphor bronze contacts. Both materials provide silver mating finish and are suitable for audio and instrumentation applications. Contact material selection does not affect substitution eligibility for the specified applications.

Q: What packaging considerations apply to these parts?

A: The Switchcraft AA5M is supplied in standard packaging, while the Amphenol Audio AC5M is supplied in bulk packaging. Verify packaging requirements for your procurement and assembly processes before substitution.
