Switchcraft A3FB Equivalent & Substitute Parts

Part Overview

The Switchcraft A3FB is a 3-position circular connector plug with female sockets and solder cup termination, designed for audio and instrumentation applications. This connector features a stainless steel shell, silver-plated brass contacts, and integrated backshell with cable clamp and strain relief. The A3FB is classified as obsolete, making identification of equivalent and substitute parts essential for ongoing system maintenance and component procurement.

Substiute Parts

A3FB

Switchcraft Inc.In Stock: 777A3FB Datasheet

Current PartRFQ

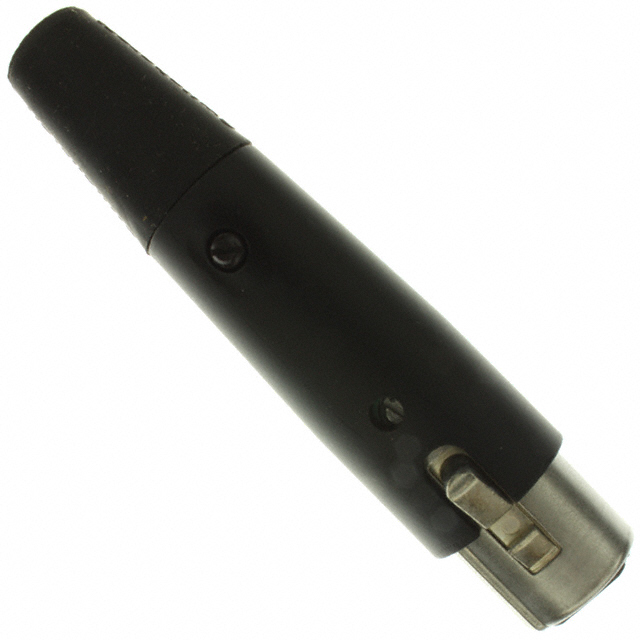

A3FBX

Switchcraft Inc.In Stock: 1195A3FBX Datasheet

DirectRFQ

AC3FB

Amphenol AudioIn Stock: 1275AC3FB Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the A3FB is determined by strict equivalence across the following critical parameters: connector type (plug, female sockets), number of positions (3), shell size (XLR), termination method (solder cup), fastening mechanism (latch lock), current rating (15A), and orientation (keyed). The substitute parts identified maintain these core electrical and mechanical specifications, ensuring functional compatibility in the intended application.

Two substitute parts meet these criteria:

Direct Equivalent (Switchcraft A3FBX): Maintains identical specifications across all critical parameters. The primary distinction is product status (active versus obsolete) and RoHS compliance (ROHS3 compliant versus non-compliant).

Cross-Manufacturer Equivalent (Amphenol Audio AC3FB): Meets all core functional requirements with minor variations in secondary specifications including shell material composition, contact finish material, backshell construction, and operating temperature range. Cable opening tolerance differs slightly but remains within acceptable mechanical compatibility ranges.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement (Same Manufacturer): The Switchcraft A3FBX is the primary substitute for the obsolete A3FB. Both parts maintain identical electrical and mechanical specifications across all critical parameters. The A3FBX is currently in active production status with 1096 units in stock and carries ROHS3 compliance certification, addressing regulatory requirements that may apply to new system designs or component refreshes.

For Cross-Manufacturer Substitution: The Amphenol Audio AC3FB provides functional equivalence when Switchcraft parts are unavailable. This connector maintains the same connector type, position count, shell size, termination method, and current rating. The AC3FB is active production status with 1198 units in stock and carries ROHS3 compliance and UL94 V-0 flammability certification. Secondary specification differences (shell material, contact finish, cable opening tolerance, and operating temperature range) do not affect core electrical function in standard audio and instrumentation applications but should be evaluated against specific system requirements.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol Audio AC3FB directly replace the Switchcraft A3FB in existing assemblies?

A: The AC3FB maintains functional equivalence across all critical electrical and mechanical parameters: 3-position XLR plug configuration, female sockets, solder cup termination, 15A current rating, latch lock fastening, and keyed orientation. However, the cable opening tolerance range differs (0.118" ~ 0.256" versus 0.210" ~ 0.300"), which may affect compatibility with existing cable assemblies. Physical verification of cable fit is required before deployment.

Q: What is the primary advantage of the Switchcraft A3FBX over the obsolete A3FB?

A: The A3FBX is in active production with current inventory availability and carries ROHS3 compliance certification. All electrical and mechanical specifications remain identical to the A3FB, making it a direct functional replacement with improved supply chain reliability and regulatory compliance status.

Q: Are there differences in contact material between the substitute parts?

A: Yes. The Switchcraft A3FB and A3FBX use silver-plated brass contacts, while the Amphenol Audio AC3FB uses tin-plated phosphor bronze contacts. Both material combinations support the 15A current rating and 125VAC voltage specification. Contact material selection does not affect electrical compatibility in standard audio and instrumentation applications.

Q: Does the Amphenol Audio AC3FB include all features of the original A3FB?

A: The AC3FB includes backshell and cable clamp features. The A3FB specifies additional ground and strain relief features. Verify that the absence of explicit strain relief specification in the AC3FB does not conflict with system mechanical requirements.

Q: What packaging options are available for these substitute parts?

A: The Switchcraft A3FBX is available in bulk packaging. The Amphenol Audio AC3FB is available in bulk packaging. The original A3FB packaging specification is not provided in the available data.
