Equivalent & Substitute Parts for A3C-6P-2DSA Rectangular Connector

Part Overview

The A3C-6P-2DSA is a through-hole rectangular connector header manufactured by Hirose Electric Co Ltd, featuring 6 positions arranged in 2 rows with 0.079" (2.00mm) pitch. This connector is classified as obsolete, necessitating identification of active equivalent and substitute parts for ongoing design and procurement requirements. The part operates within -55°C to 85°C temperature range with 1A current rating and 200V voltage rating, utilizing gold-plated brass contacts with polyamide insulation.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Shape	Square
Shrouding	Unshrouded
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	1A
Voltage Rating	200V
Operating Temperature Range	-55°C ~ 85°C
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict alignment with the following critical parameters:

Pitch - Mating: 0.079" (2.00mm)
Number of Positions: 6
Number of Rows: 2
Row Spacing - Mating: 0.079" (2.00mm)
Connector Type: Header
Contact Type: Male Pin
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Shape: Square
Shrouding: Unshrouded
Material Flammability Rating: UL94 V-0
Insulation Color: Black

Substitute parts are grouped into two categories: direct manufacturer equivalents from Hirose Electric Co Ltd and cross-manufacturer alternatives from Harwin Inc. and Samtec Inc. that maintain electrical and mechanical compatibility within the specified parameter constraints.

Parameter Comparison

Parameter	A3C-6P-2DSA	A3C-6P-2DSA(30)	M22-2020346	MTMM-103-02-F-D-124	MTMM-103-02-F-D-125	MTMM-103-02-F-D-140	MTMM-103-02-F-D-142	MTMM-103-02-G-D-127	MTMM-103-02-G-D-131	MTMM-103-02-G-D-133	MTMM-103-02-G-D-134
Manufacturer	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Harwin Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.	Samtec Inc.
Connector Type	Header	Header	Header, Cuttable	Header, Cuttable	Header, Cuttable	Header, Cuttable	Header, Cuttable	Header, Cuttable	Header, Cuttable	Header, Cuttable	Header, Cuttable
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Positions	6	6	6	6	6	6	6	6	6	6	6
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Row Spacing - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Shrouding	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Current Rating	1A	1A	1A per Contact	3A	3A	3A	3A	3A	3A	3A	3A
Operating Temperature Range	-55°C ~ 85°C	-55°C ~ 85°C	-40°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
RoHS Status	Not specified	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

Direct Hirose Equivalent: A3C-6P-2DSA(30) is the active production variant of the obsolete A3C-6P-2DSA, maintaining identical electrical and mechanical specifications while offering RoHS compliance and active product status. This part is the primary replacement for direct substitution.

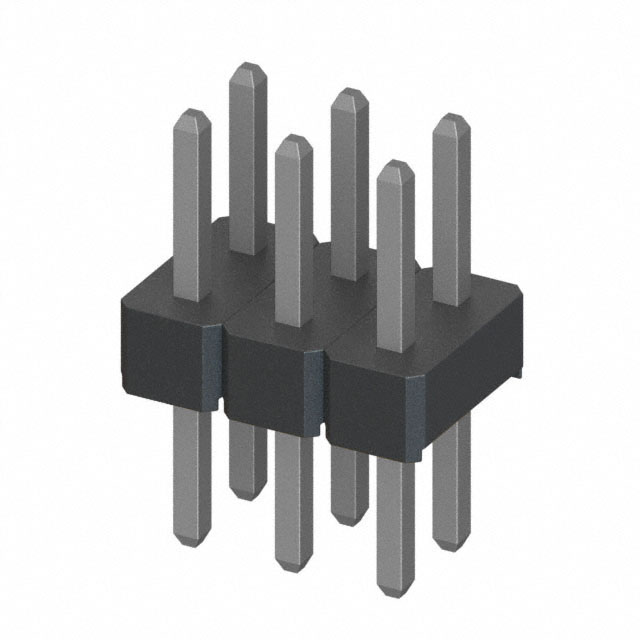

Harwin Alternative: M22-2020346 provides cross-manufacturer compatibility with cuttable header functionality and extended operating temperature range (-40°C to 105°C). This part is suitable for applications requiring higher temperature performance within the specified pitch and position constraints.

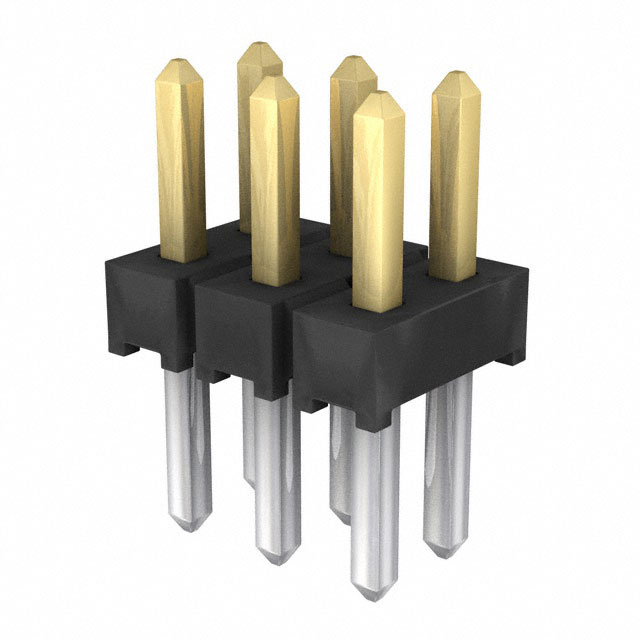

Samtec Alternatives: The MTMM-103 series (variants -02-F-D and -02-G-D) offers enhanced current rating (3A versus 1A) and extended operating temperature range (-55°C to 125°C). These parts feature cuttable header design and ROHS3 compliance. Selection among MTMM variants depends on contact length requirements and finish specifications:

MTMM-103-02-F-D variants (124, 125, 140, 142) feature tin-plated posts with gold-plated mating contacts
MTMM-103-02-G-D variants (127, 131, 133, 134) feature gold-plated posts and mating contacts

All substitute parts maintain UL94 V-0 flammability rating, MSL 1 classification, and mechanical compatibility with the original A3C-6P-2DSA footprint.

Frequently Asked Questions (FAQ)

Q: Can A3C-6P-2DSA(30) be used as a direct replacement for A3C-6P-2DSA?

A: Yes. A3C-6P-2DSA(30) maintains identical pitch (0.079"), position count (6), row configuration (2 rows), and all critical electrical parameters. The primary difference is active product status and RoHS compliance. Packaging format differs (bulk versus original), but electrical and mechanical compatibility is complete.

Q: What are the key differences between Hirose and Samtec alternatives?

A: Hirose A3C-6P-2DSA(30) maintains the original operating temperature range (-55°C to 85°C) and 1A current rating. Samtec MTMM-103 series provides higher current capacity (3A) and extended temperature range (-55°C to 125°C), with cuttable header design. Both maintain 0.079" pitch and 6-position, 2-row configuration.

Q: Are contact length variations between substitute parts significant?

A: Contact length variations exist among Samtec MTMM-103 variants (ranging from 0.124" to 0.142" mating contact length). These variations affect mating depth and stacking height. Selection depends on specific PCB design requirements and mating connector specifications. All variants maintain electrical compatibility within the 0.079" pitch constraint.

Q: What is the significance of contact finish differences?

A: MTMM-103-02-F-D variants feature tin-plated posts with gold-plated mating contacts. MTMM-103-02-G-D variants feature gold-plated posts and mating contacts. Both configurations provide equivalent electrical performance. Selection depends on soldering process compatibility and environmental exposure requirements.

Q: Do all substitute parts meet the same compliance standards?

A: All substitute parts maintain UL94 V-0 flammability rating and MSL 1 moisture sensitivity classification. Samtec and Harwin alternatives provide ROHS3 compliance, while the original A3C-6P-2DSA does not specify RoHS status. A3C-6P-2DSA(30) provides RoHS compliance. Compliance requirements should be verified against specific application standards.

Q: Is the cuttable header feature of Samtec and Harwin parts compatible with the original design?

A: Cuttable header design does not affect electrical or mechanical compatibility with standard mating connectors. The feature provides additional flexibility for custom configurations but does not impact performance in applications using standard 6-position, 2-row mating connectors.
