Eaton A202211 Equivalent & Substitute Parts

Part Overview

The Eaton A202211 is an 11-circuit barrier block connector with 0.375" (9.53mm) pitch, designed for through-hole mounting applications requiring screw termination on the top and PC pin connections on the bottom. This component operates at 30A current rating and 300V voltage rating, supporting wire gauges from 12-22 AWG. The part is currently active in production with 958 units in stock. Equivalent and substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when design flexibility permits component substitution within specified electrical and mechanical parameters.

Substiute Parts

A202211

Eaton - Electronics DivisionIn Stock: 977A202211 Datasheet

Current PartRFQ

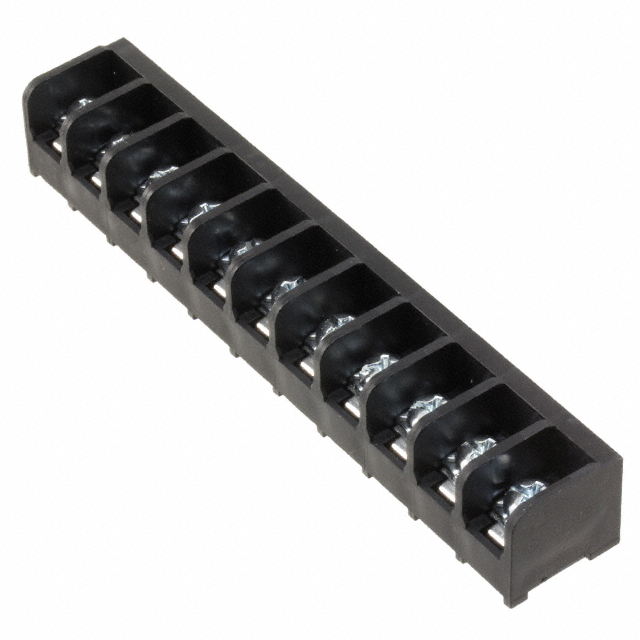

6PCV-11-006

TE Connectivity AMP ConnectorsIn Stock: 11826PCV-11-006 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Eaton A202211 is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Number of Circuits: 11
• Pitch: 0.375" (9.53mm)
• Terminal Block Type: Barrier Block
• Top Termination: Screws
• Bottom Termination: PC Pin
• Mounting Type: Through Hole
• Wire Gauge Support: 12-22 AWG
• Voltage Rating: 300V minimum
• Material Flammability Rating: UL94 V-0
• RoHS Compliance: ROHS3 Compliant

Allowable Variation Parameters:

• Current Rating: Substitute must meet or exceed 25A minimum
• Operating Temperature: Substitute must support minimum 105°C
• Barrier Type: Variation permitted (2 Wall vs. 3 Wall)
• Terminal Screw Finish: Variation permitted (Zinc vs. Zinc with Clear Chromate)

The TE Connectivity AMP Connectors part number 6PCV-11-006 qualifies as a substitute based on matching all mandatory parameters and meeting minimum allowable variations.

Parameter Comparison

Engineering Selection Recommendations

Primary Part Selection (Eaton A202211): Use the Eaton A202211 for applications requiring the full 30A current rating across the complete operating temperature range of -40°C to 105°C. This part is active in production with adequate inventory (958 units) and carries full ROHS3 compliance and UL94 V-0 flammability certification.

Substitute Part Selection (TE Connectivity 6PCV-11-006): The TE Connectivity 6PCV-11-006 is suitable for applications where the current requirement does not exceed 25A. This substitute maintains all critical electrical and mechanical parameters including 300V voltage rating, 11-circuit configuration, 0.375" pitch, and UL94 V-0 flammability rating. The substitute features a 3-wall barrier design (compared to 2-wall on the primary part) and zinc with clear chromate screw finish (compared to zinc only), both of which represent enhanced specifications. The substitute is also ROHS3 compliant and carries EAR99 export classification. Inventory availability is higher (1,084 units).

Compliance Verification: Both parts meet ROHS3 compliance requirements and carry identical ECCN and HTSUS classifications, confirming regulatory equivalence for procurement and export purposes.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 6PCV-11-006 be used as a direct replacement for the Eaton A202211 in all applications?

A: No. The TE Connectivity substitute is rated for 25A maximum current, while the Eaton part is rated for 30A. The substitute is suitable only for applications requiring 25A or less. If your application requires the full 30A rating, the Eaton A202211 must be used.

Q: What is the difference between the 2-wall and 3-wall barrier designs?

A: The TE Connectivity substitute features a 3-wall (tri) barrier design compared to the 2-wall (dual) barrier on the Eaton part. The 3-wall design provides enhanced electrical isolation between circuits. Both designs meet the same voltage rating (300V) and flammability standards (UL94 V-0).

Q: Are the screw finishes interchangeable?

A: Both parts use steel screws with zinc finish. The TE Connectivity substitute adds clear chromate to the zinc finish, which provides enhanced corrosion resistance. This variation does not affect electrical performance and is considered an improvement for applications exposed to corrosive environments.

Q: Do both parts support the same wire gauge range?

A: Yes. Both the Eaton A202211 and TE Connectivity 6PCV-11-006 support wire gauges from 12-22 AWG, ensuring compatibility with identical wiring specifications.

Q: What is the operating temperature difference between these parts?

A: The Eaton A202211 is rated for -40°C to 105°C. The TE Connectivity substitute specifies 105°C as the maximum operating temperature, with the lower temperature limit not specified in available documentation. For applications requiring operation below 0°C, the Eaton part should be confirmed.

Q: Are both parts RoHS compliant?

A: Yes. Both the Eaton A202211 and TE Connectivity 6PCV-11-006 are ROHS3 compliant, meeting current environmental regulations for electronic component manufacturing.

Q: Can these parts be used interchangeably on the same PCB?

A: Yes, from a mechanical and electrical standpoint. Both parts have identical pitch (0.375"), mounting type (through hole), and PC pin bottom termination. However, the current rating difference must be considered in circuit design. Verify that your application current does not exceed 25A if using the TE Connectivity substitute.
