LED CBI A02PE - Equivalent & Substitute Parts

Part Overview

The NKK Switches A02PE is a 3mm through-hole LED circuit board indicator with yellow emission. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing production, maintenance, and repair applications. The A02PE delivers 30mA at 2.1V nominal operating conditions in a standard T-1 form factor with domed lens geometry.

Substiute Parts

A02PE

NKK SwitchesIn Stock: 870A02PE Datasheet

Current PartRFQ

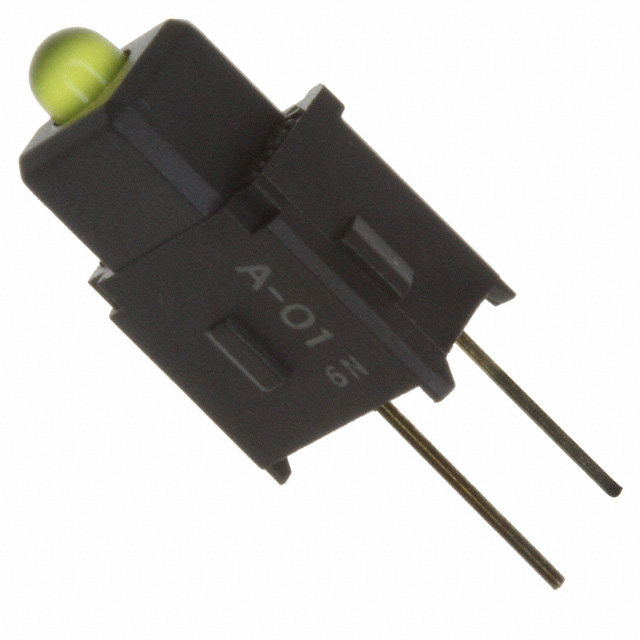

A01PE

NKK SwitchesIn Stock: 870A01PE Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the A02PE is determined by the following critical parameters:

• Color: Yellow emission required
• Configuration: Single LED element
• Mounting Type: Through hole connection
• Lens Form Factor: 3mm T-1 standard package geometry
• Electrical Compatibility: Forward voltage and current ratings within acceptable operating margins for circuit integration

The A01PE qualifies as a substitute based on matching color, configuration, mounting type, and form factor. Electrical parameter variations (voltage 2.2V vs. 2.1V; current 50mA vs. 30mA) remain within typical design tolerances for LED circuit board indicator applications where the component operates in current-limited circuits.

Parameter Comparison

Engineering Selection Recommendations

The A01PE serves as the primary substitute for the obsolete A02PE. Selection is justified on the following basis:

• Product Status: A01PE maintains active production status, ensuring availability and supply chain continuity
• Regulatory Compliance: A01PE carries ROHS3 compliance and REACH unaffected designation, meeting current environmental and safety standards
• Functional Equivalence: Both components share identical color, configuration, and mounting characteristics essential for circuit board indicator applications
• Electrical Parameters: The A01PE operates at 2.2V and 50mA, representing minor increases from the A02PE specification. These variations are accommodated within standard LED circuit design practices using series current-limiting resistors
