Weidmüller 995134 Terminal Block - Equivalent & Substitute Parts

Part Overview

The Weidmüller 995134 is a 6-position wire-to-board terminal block with 0.200" (5.08mm) pitch, designed for horizontal mounting through holes on PCBs. This component belongs to the Omnimate LP series and features side entry interlocking with screw-clamping termination. The part is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and new design implementations where legacy compatibility is required.

Substiute Parts

995134

WeidmüllerIn Stock: 1284995134 Datasheet

Current PartRFQ

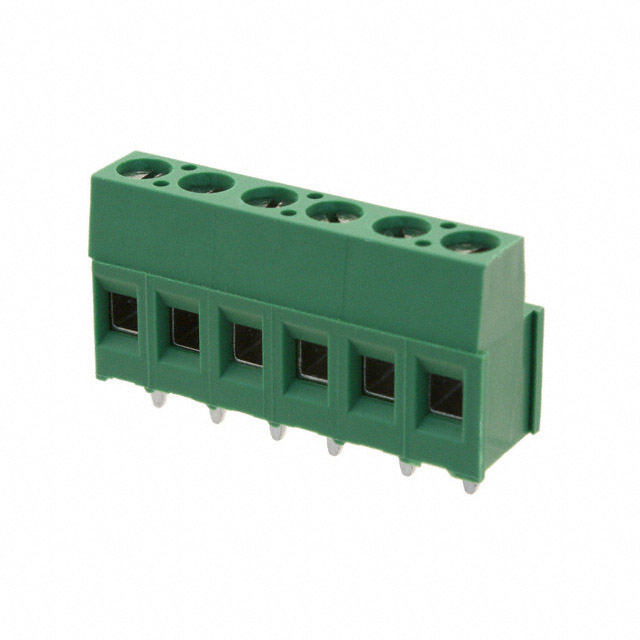

282841-6

TE Connectivity AMP ConnectorsIn Stock: 14924282841-6 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The TE Connectivity AMP Connectors 282841-6 qualifies as a functional substitute based on the following critical parameters:

Matching Parameters:

• Positions Per Level: 6
• Pitch: 0.200" (5.08mm)
• Mating Orientation: Horizontal with Board
• Voltage Rating: 300 V
• Mounting Type: Through Hole
• Screw Thread: M3
• Housing Material: Polyamide (PA66), Nylon 6/6
• Features: Interlocking (Side)

Substitution Logic: Both components share identical mechanical footprints, electrical voltage specifications, and mounting configurations. The 282841-6 maintains compatibility with PCB layouts designed for the 995134. Wire gauge acceptance (12-30 AWG vs. 12-26 AWG) and current rating (17.5 A vs. 15 A) in the substitute part exceed the original specifications, ensuring functional compatibility in existing applications.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 282841-6 is suitable for direct substitution in applications currently using the Weidmüller 995134. The substitute part is actively manufactured and maintained, addressing the obsolescence status of the original component. Both parts comply with RoHS directives and share identical export classifications (EAR99, HTSUS 8536.90.4000).

The 282841-6 provides enhanced specifications in current capacity (17.5 A vs. 15 A) and wire gauge range (12-30 AWG vs. 12-26 AWG), making it suitable for applications requiring the original part's performance envelope or higher. The different wire termination method (Rising Cage Clamp vs. Clamping Yoke, Tension Sleeve) does not affect mechanical or electrical compatibility on the PCB interface.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 282841-6 be used as a direct replacement for the Weidmüller 995134 on existing PCBs?

A: Yes. Both components share identical pitch (5.08mm), position count (6), mounting type (through hole), and screw thread specification (M3). PCB layouts designed for the 995134 will accommodate the 282841-6 without modification.

Q: What are the key differences between these two parts?

A: The primary differences are manufacturer series (Omnimate LP vs. Buchanan), wire termination mechanism (Clamping Yoke, Tension Sleeve vs. Rising Cage Clamp), contact material composition (Copper Alloy vs. Brass), and product status (Obsolete vs. Active). The 282841-6 also supports a wider wire gauge range and higher current capacity.

Q: Are there any compliance or certification differences?

A: Both parts are RoHS compliant. The 282841-6 carries ROHS3 certification, representing a more recent compliance standard. Both share identical ECCN and HTSUS classifications for export purposes.

Q: Does the different wire termination method affect electrical performance?

A: No. Both termination methods (Clamping Yoke, Tension Sleeve and Rising Cage Clamp) are screw-based clamping systems designed for M3 threads. The electrical connection quality and current-carrying capacity remain within specification for both designs.

Q: What is the inventory status for these parts?

A: The Weidmüller 995134 has 1,177 pieces in stock (obsolete status). The TE Connectivity 282841-6 has 14,898 pieces in stock and is actively produced, ensuring long-term availability for new designs and ongoing production requirements.
