Weidmüller 995132 Terminal Block: Equivalent & Substitute Parts

Part Overview

The Weidmüller 995132 is a 4-position wire-to-board terminal block with 0.200" (5.08mm) pitch, designed for horizontal PCB mounting through-hole applications. This component operates at 15 A and 300 V with screw-clamping wire termination. The part is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system support and new design implementations.

Substiute Parts

995132

WeidmüllerIn Stock: 840995132 Datasheet

Current PartRFQ

2567130000

WeidmüllerIn Stock: 9182567130000 Datasheet

DirectRFQ

282841-4

TE Connectivity AMP ConnectorsIn Stock: 4610282841-4 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict alignment with the following critical parameters:

• Positions per level: 4 (exact match required)
• Pitch: 0.200" (5.08mm) (exact match required)
• Mating orientation: Horizontal with Board (exact match required)
• Mounting type: Through Hole (exact match required)
• Screw thread: M3 (exact match required)
• Voltage rating: 300 V minimum (equal or higher acceptable)
• Current rating: 15 A minimum (equal or higher acceptable)
• Wire gauge compatibility: Must accommodate 12-26 AWG minimum range

The two substitute parts listed meet these core mechanical and electrical compatibility criteria while offering improved or equivalent performance characteristics.

Parameter Comparison

Engineering Selection Recommendations

Weidmüller 2567130000 is the primary substitute for the obsolete 995132. Both components are from the same manufacturer and share identical mechanical pitch, orientation, and wire termination methodology. The 2567130000 offers higher current capacity (20 A vs. 15 A), extended operating temperature range (-50°C to 120°C vs. -20°C to 100°C), and active product status with ROHS3 compliance. This part provides direct functional replacement with performance enhancement.

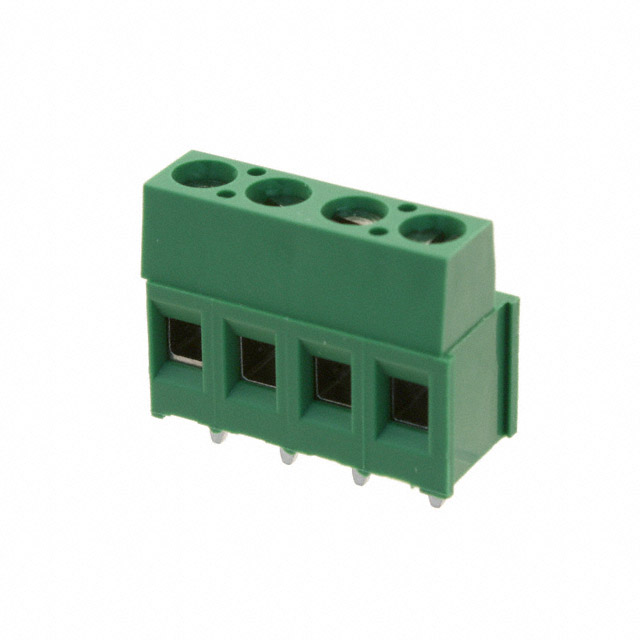

TE Connectivity 282841-4 serves as a cross-manufacturer alternative. It maintains all critical mechanical parameters and meets the same voltage and current requirements. The rising cage clamp termination differs from the clamping yoke design but provides equivalent screw-based wire retention. This part supports extended wire gauge range (12-30 AWG) and carries ROHS3 compliance. Selection of this part requires verification of PCB layout compatibility due to manufacturer-specific dimensional tolerances and color differentiation (green vs. orange).

Both substitutes are in active production with current inventory availability, eliminating obsolescence risk associated with the original 995132.

Frequently Asked Questions (FAQ)

Q: Can the Weidmüller 2567130000 directly replace the 995132 in existing designs?

A: Yes. Both parts share identical pitch (5.08mm), position count (4), mounting orientation (horizontal with board), and screw thread specification (M3). The 2567130000 provides equal or superior electrical performance and is mechanically compatible with PCB layouts designed for the 995132.

Q: What is the primary difference between the Weidmüller 2567130000 and TE Connectivity 282841-4?

A: Both meet core mechanical and electrical compatibility requirements. The 2567130000 maintains identical wire termination methodology (clamping yoke with tension sleeve) and housing material specification. The 282841-4 uses rising cage clamp termination and differs in contact material composition (brass vs. copper alloy). Cross-manufacturer substitution requires PCB footprint verification.

Q: Does the higher current rating of the 2567130000 (20 A vs. 15 A) affect PCB design?

A: No. Higher current rating indicates improved performance margin without requiring design modification. Existing PCB traces and thermal management designed for 15 A operation remain valid.

Q: Are there wire gauge compatibility concerns with the TE Connectivity 282841-4?

A: The 282841-4 supports 12-30 AWG, which encompasses the original 12-26 AWG specification. This extended range provides additional flexibility for wire selection without creating incompatibility with existing wire specifications.

Q: What compliance certifications apply to the substitute parts?

A: Both the Weidmüller 2567130000 and TE Connectivity 282841-4 carry ROHS3 compliance. The original 995132 is RoHS Compliant. All three parts are classified as EAR99 for export control purposes.
