Part Overview

The Weidmüller 995022 is a 24-position wire-to-board terminal block with 5mm pitch, designed for horizontal mounting through PCB holes. This component features side-entry interlocking capability and screw-clamping wire termination, supporting 15A at 300V across wire gauges 12-26 AWG. The product is classified as obsolete, making identification of active equivalent components essential for ongoing system maintenance and new design implementations.

Substiute Parts

995022

WeidmüllerIn Stock: 1230995022 Datasheet

Current PartRFQ

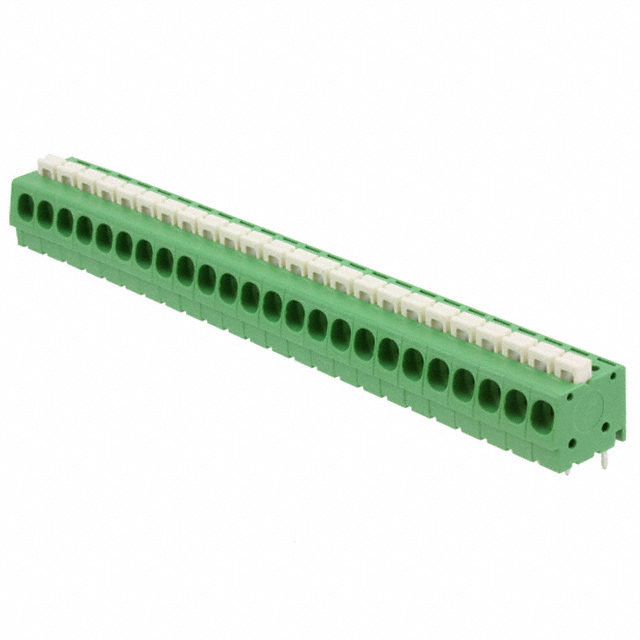

2-1986711-4

TE Connectivity AMP ConnectorsIn Stock: 10472-1986711-4 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The TE Connectivity AMP Connectors part number 2-1986711-4 qualifies as a functional substitute based on the following critical parameters:

• Position Count & Pitch: Both components provide 24 positions at 0.197" (5.00mm) pitch, ensuring mechanical and electrical compatibility in PCB layouts
• Mating Orientation: Both feature horizontal-with-board configuration for identical mounting geometry
• Voltage Rating: Both rated at 300V, meeting electrical system requirements
• Mounting Type: Both use through-hole PCB mounting
• Interlocking Feature: Both incorporate side-entry interlocking capability
• Contact Material: Both use copper alloy with tin plating for equivalent electrical performance

Differences in current rating (16A vs 15A), wire gauge range (12-30 AWG vs 12-26 AWG), termination method (screwless push-button vs screw-clamping), and operating temperature range represent design variations that do not preclude substitution when system requirements fall within the substitute's specifications.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 2-1986711-4 is an active product with ROHS3 compliance and MSL rating of 1 (Unlimited), providing superior long-term availability compared to the obsolete Weidmüller 995022. The substitute meets or exceeds all critical electrical parameters: voltage rating (300V), current capacity (16A vs 15A requirement), and wire gauge accommodation (12-30 AWG vs 12-26 AWG requirement).

The primary design difference is termination method: the substitute uses screwless push-button clamping versus screw-clamping on the original. This change requires PCB layout and assembly procedure evaluation to confirm compatibility with existing connector mating interfaces and installation tooling.

The substitute's extended operating temperature range (-40°C ~ 110°C) and improved compliance status support deployment in applications requiring broader environmental tolerance or regulatory documentation.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 2-1986711-4 directly replace the Weidmüller 995022 in existing designs?

A: Mechanical and electrical compatibility is confirmed for PCB mounting geometry and electrical performance. The screwless termination method requires verification that mating connectors and assembly procedures are compatible with push-button clamping versus screw-clamping operation.

Q: What are the critical parameters that define substitution eligibility?

A: Position count (24), pitch (5.00mm), mating orientation (horizontal with board), voltage rating (300V), and through-hole mounting type are the primary determinants. Both components meet these criteria.

Q: Does the wire gauge range difference affect substitution?

A: The substitute accommodates 12-30 AWG versus the original 12-26 AWG. This represents expanded capability and does not restrict substitution for applications using the original wire gauge range.

Q: What compliance advantages does the substitute offer?

A: The TE Connectivity part is ROHS3 compliant with MSL 1 (Unlimited), whereas the Weidmüller 995022 is obsolete. This ensures long-term availability and regulatory alignment for new production.

Q: How do the termination methods differ functionally?

A: The original uses M3 screw-clamping with specified torque (0.5-0.6 Nm). The substitute uses screwless push-button clamping, eliminating screw torque requirements but requiring different mating connector design and assembly methodology.
